Product Description

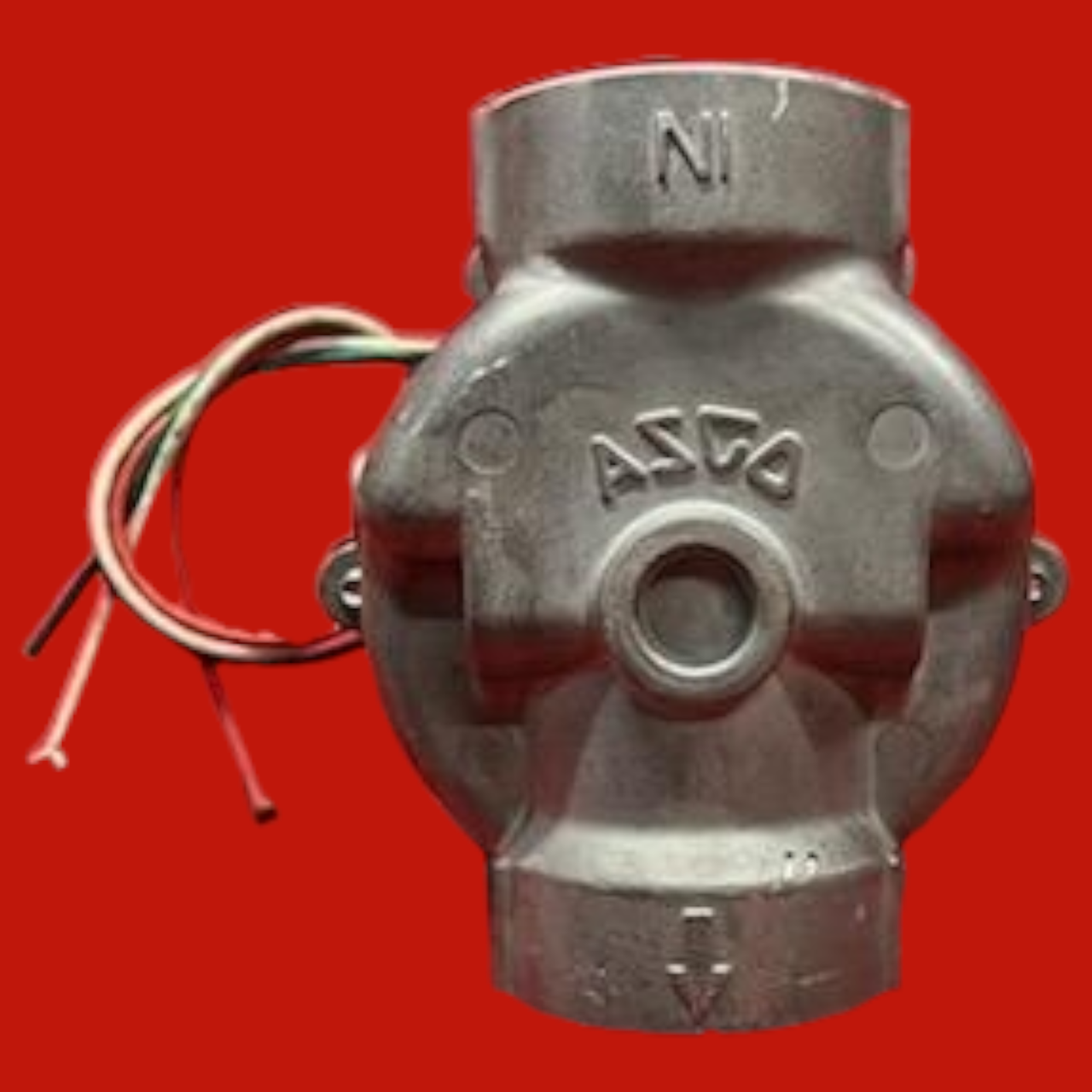

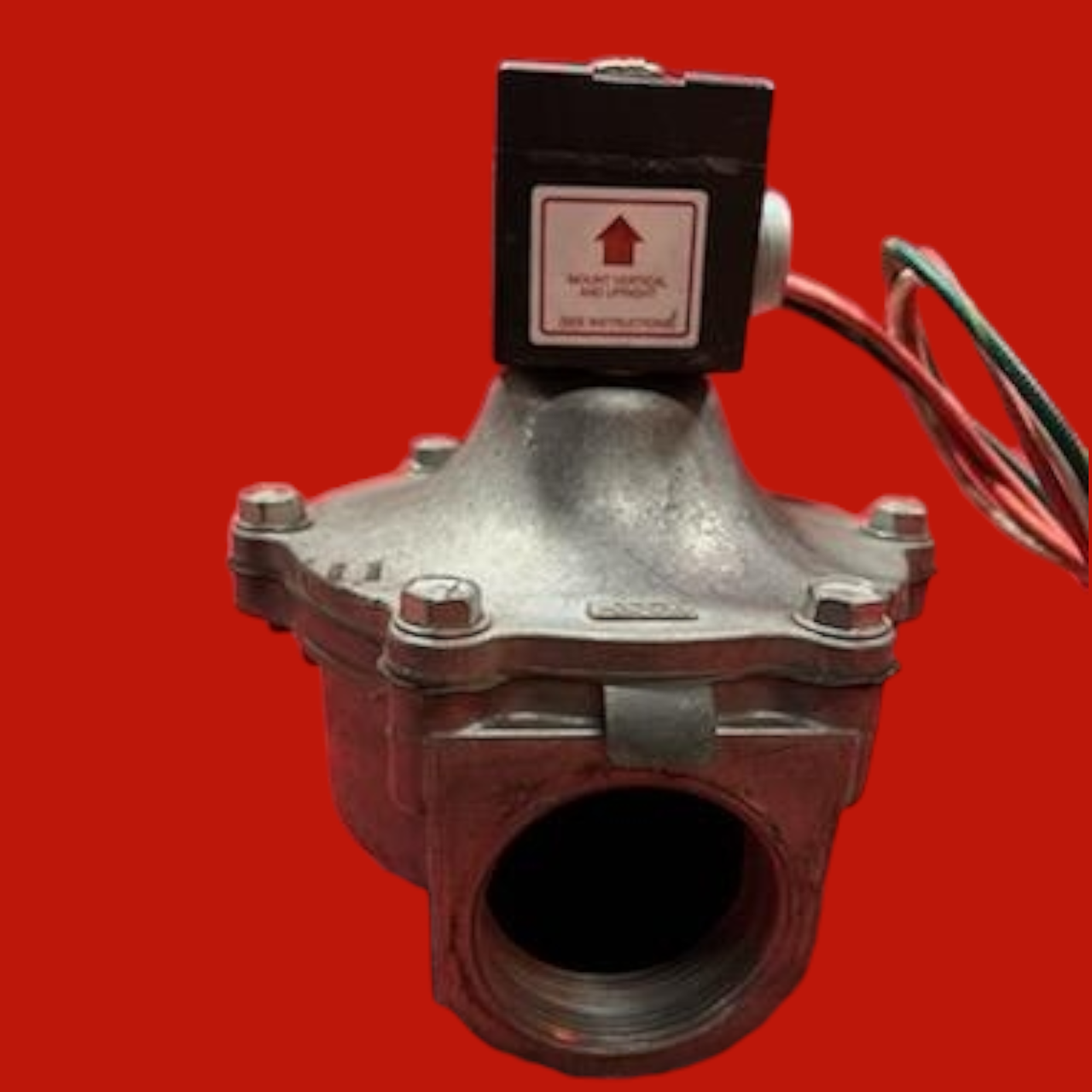

ASCO™ 8215B080 Solenoid Valve
The ASCO Series 8215B080, is an aluminum body, lightweight gas safety shut off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight shut off. The 215 Series is ideal for vacuum service and heating equipment applications.
Body Material: Aluminum
Media: Air; Inert Gas; Liquid Propane Gas; Natural Gas; Oxygen
Pipe / Port Size: 2 "
Port Type: NPTF
Function: 2 way - 2/2 Normally Closed
Voltage: 110 AC; 115 AC; 12 DC; 120 AC; 120 DC; 208 AC; 220 AC; 230 AC; 24 AC; 24 DC; 240 AC; 240 DC; 440 AC; 48 DC; 480 AC; 6 DC - 50/60
Max Differential / Max Operating Pressure: Vacuum to 10.3 Bar; Vacuum to 150 PSIG; 150-500 PSIG; 10.3-34.5 Bar
Operating Environment: Hazardous; Indoor; Outdoor
Standards / Regulations: Class I Div 1; Class I Div 2; Class II Div 1; Class II Div 2; CSA; FM; Type 1; Type 2; Type 3; Type 3R; Type 3S; Type 4; Type 4X; Type 6; Type 6P; Type 7; Type 9; UL
