Product Description

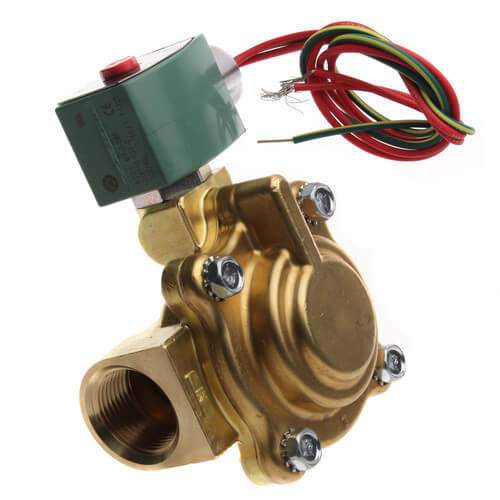

ASCO 8221g007 Solenoid Valve
PN: 8221g007
- Slow Closing Solenoid Valve
- Valve Ways and Positions: 2-Way/2-Position
- Valve Configuration: Normally Closed
- Media: Water
- Pipe Size:1 in
- Min. Operating Pressure Differential: 5 psi
- Max. Operating Pressure Differential Light Oil: Not Rated
- Max. Operating Pressure Differential Water: 150 psi
- Environmental Rating: Indoor, Outdoor
- Voltage: 120V AC
- Coefficient of Volume: 11.5
- Body Material: Brass
- Coil Insulation Class: F
- Seal Material: NBR
- Orifice Diameter: 1 in
- NEMA Rating: 1, 2, 3, 3S, 4, 4X
- IP Rating: 66
- Max. Fluid Temperature: 180 Degrees F
- Hz50/60
- Watts: 6.1 W
- Coil Enclosure: Watertight No Junction Box
- Electrical Connections: 1/2 in Conduit w/18 in Leads
- Center Line Pipe Center Size: 4 in
