Product Description

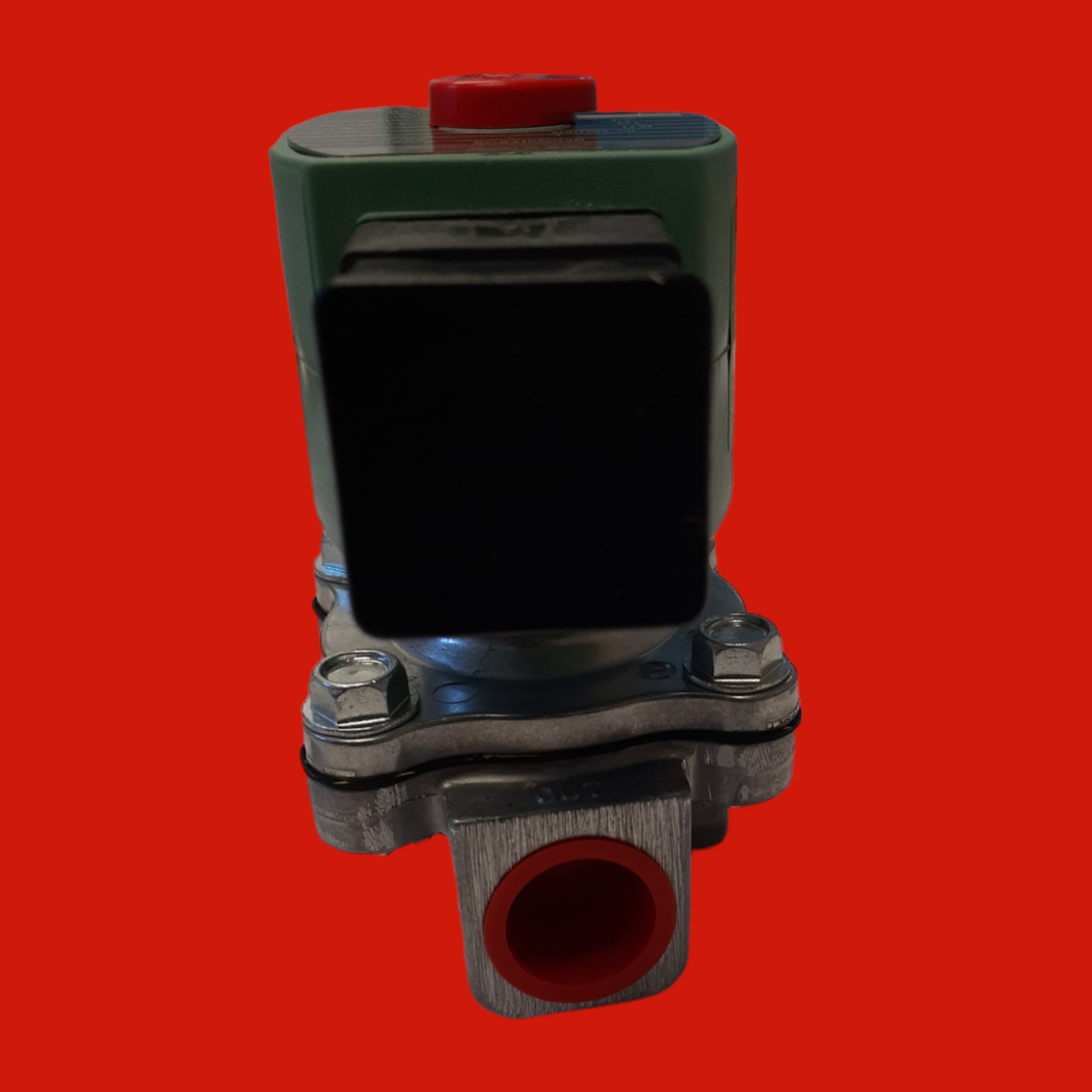

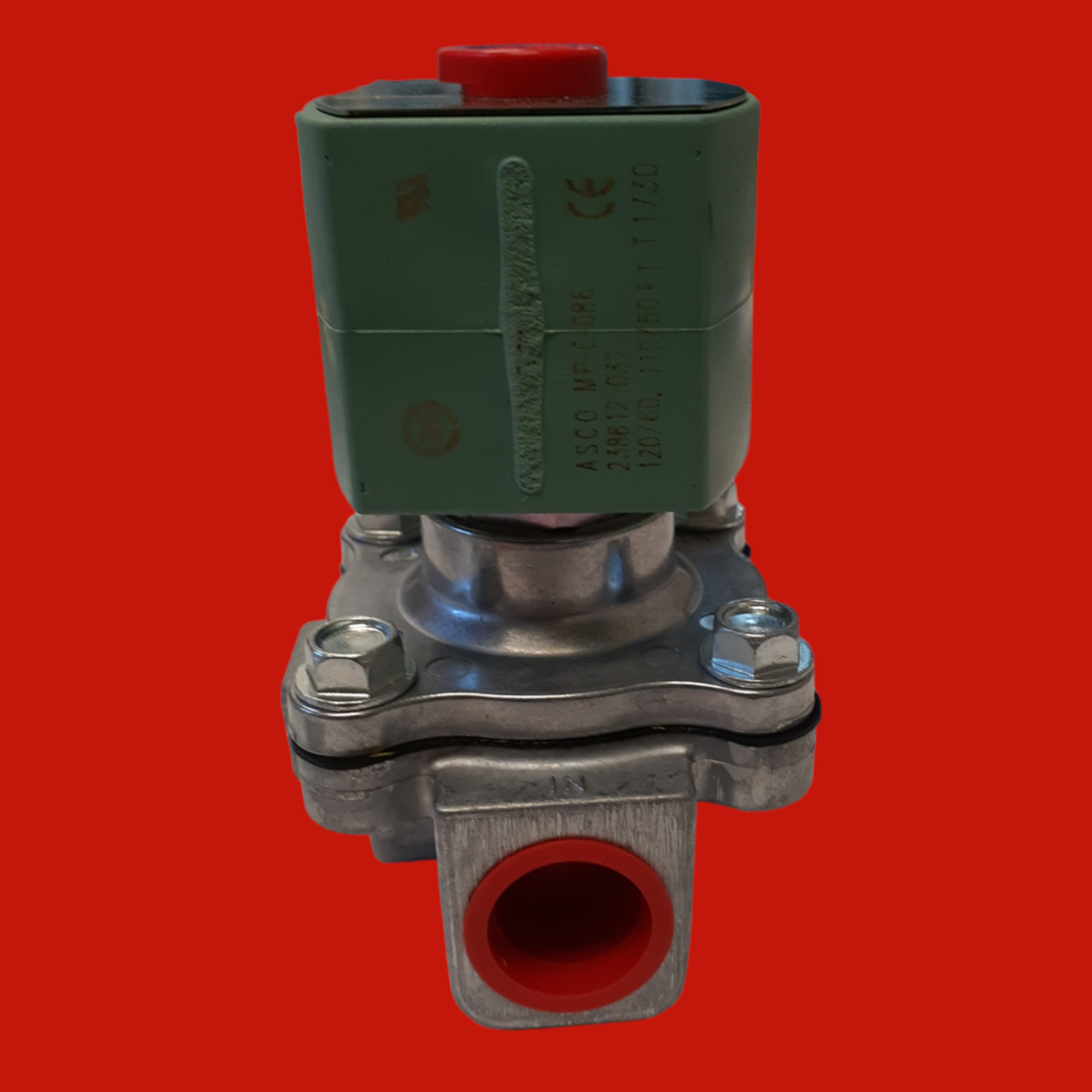

Asco SC8215G020 Solenoid Valve
PN: SC8215G020
The ASCO Series 8215G020, is an aluminum body, lightweight gas safety shut off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight shut off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.
- Valve Actuation: Solenoid
- Body Material: Aluminum
- Media: Air; Inert Gas; Liquid Propane Gas; Natural Gas; Oxygen
- Pipe / Port Size: 1/2 "
- Port Type: NPTF
- Function: 3 way - 2/2 Normally Closed
- Voltage: 110 AC; 115 AC; 12 DC; 120 AC; 120 DC; 208 AC; 220 AC; 230 AC; 24 AC; 24 DC; 240 AC; 240 DC; 440 AC; 48 DC; 480 AC; 6 DC - 50/60
- Max Differential / Max Operating Pressure: Vacuum to 10.3 Bar; Vacuum to 150 PSIG; 150-500 PSIG; 10.3-34.5 Bar
- Operating Environment: Hazardous; Indoor; Outdoor
- Standards / Regulations: Class I Div 1; Class I Div 2; Class II Div 1; Class II Div 2; CSA; FM; Type 1; Type 2; Type 3; Type 3R; Type 3S; Type 4; Type 4X; Type 6; Type 6P; Type 7; Type 9; UL
