Product Description

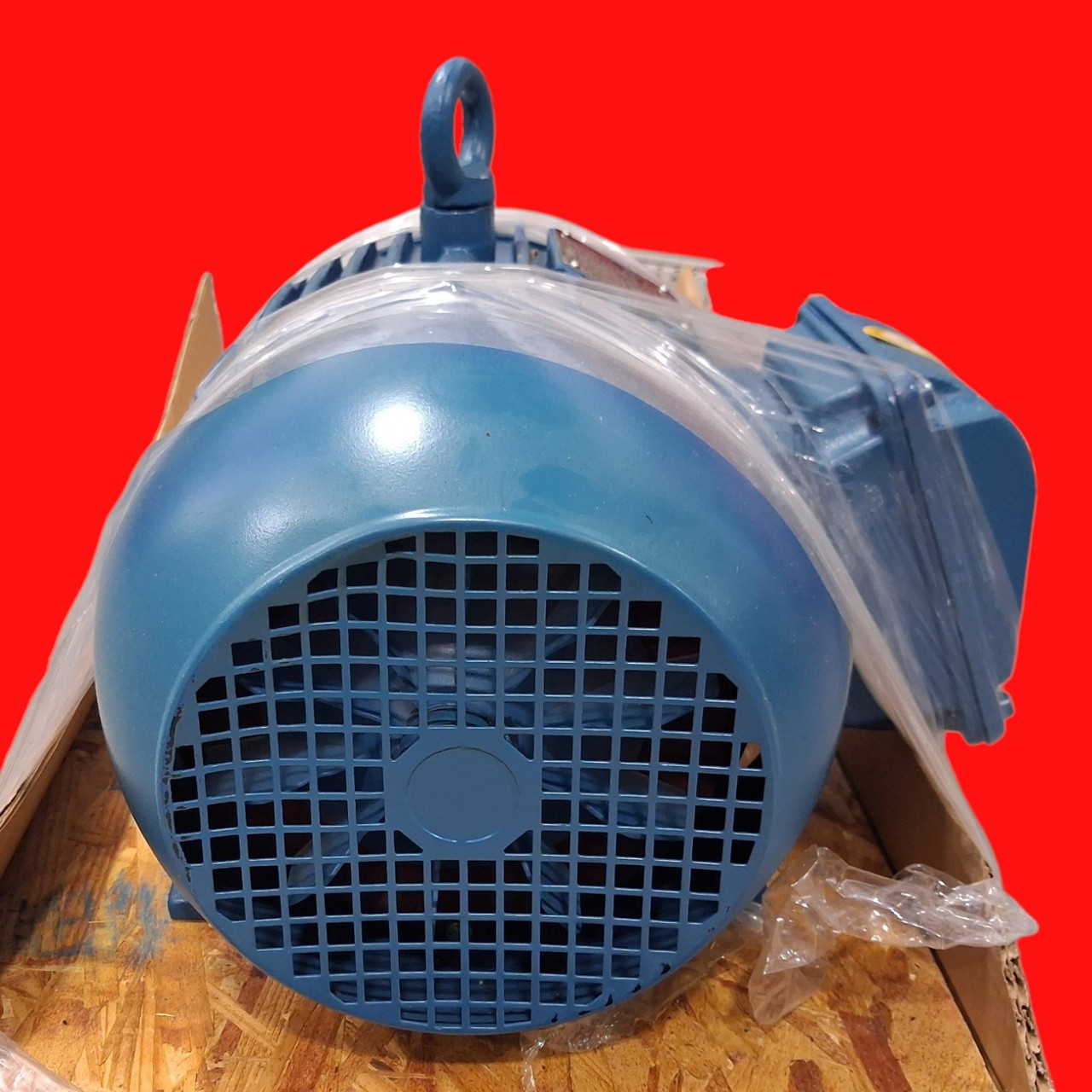

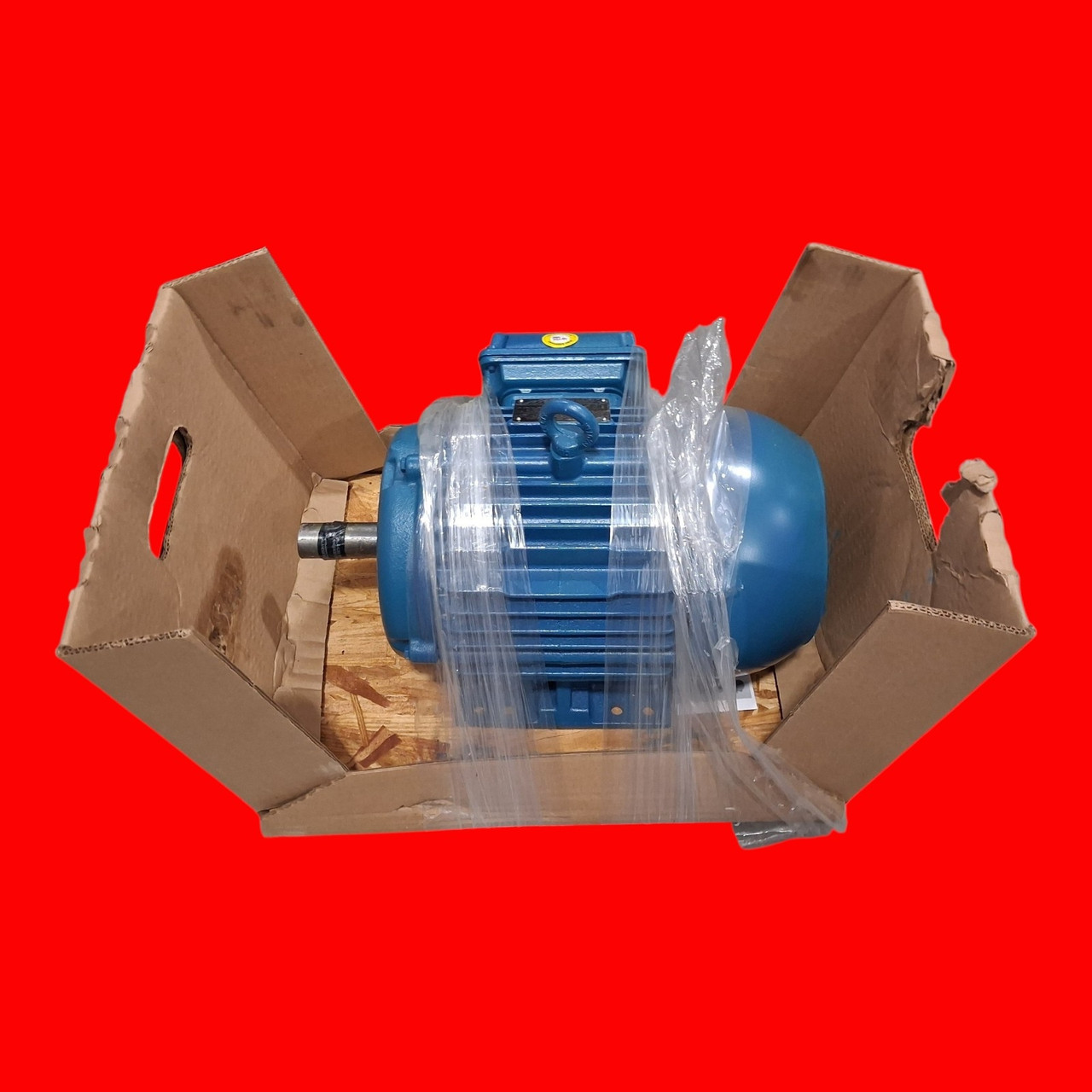

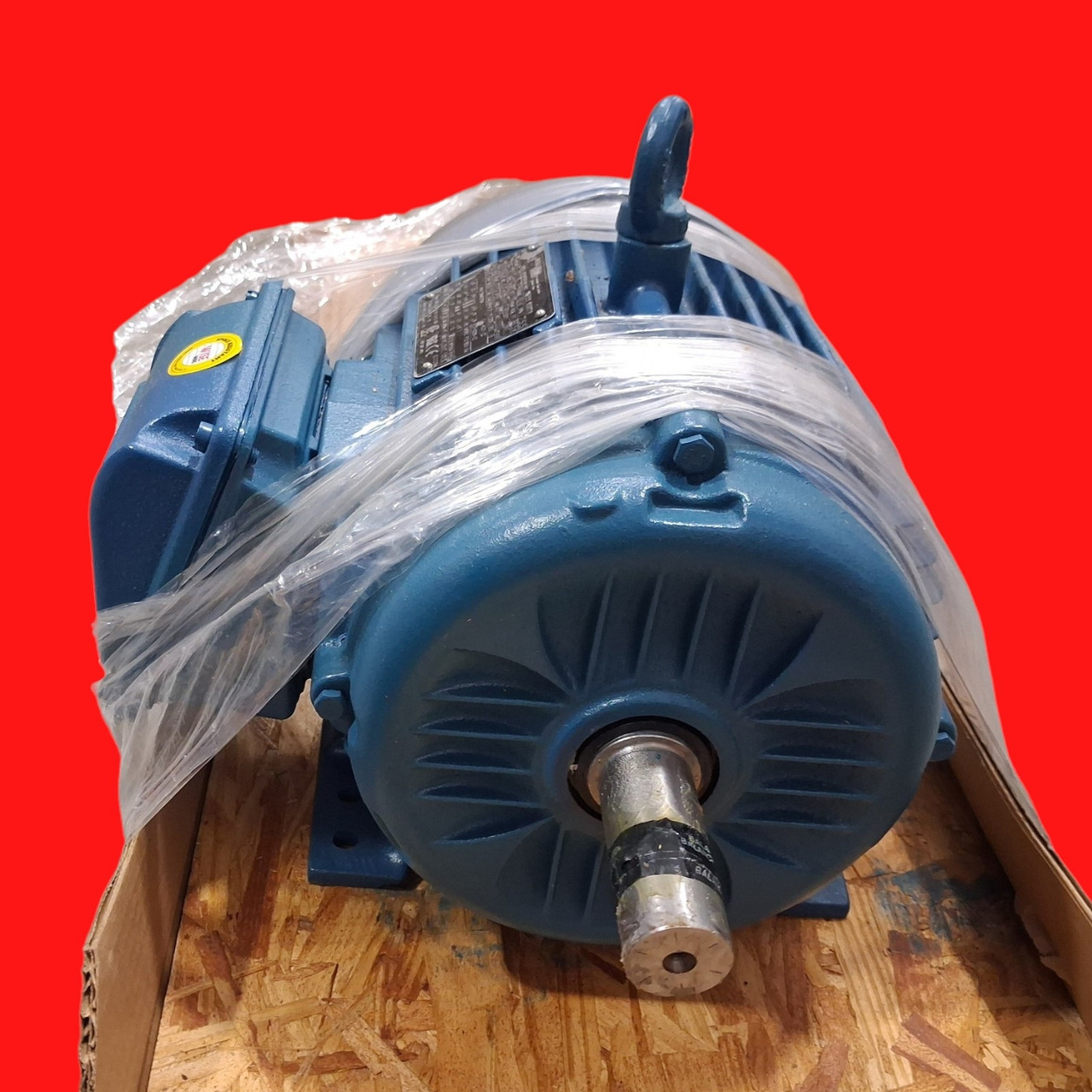

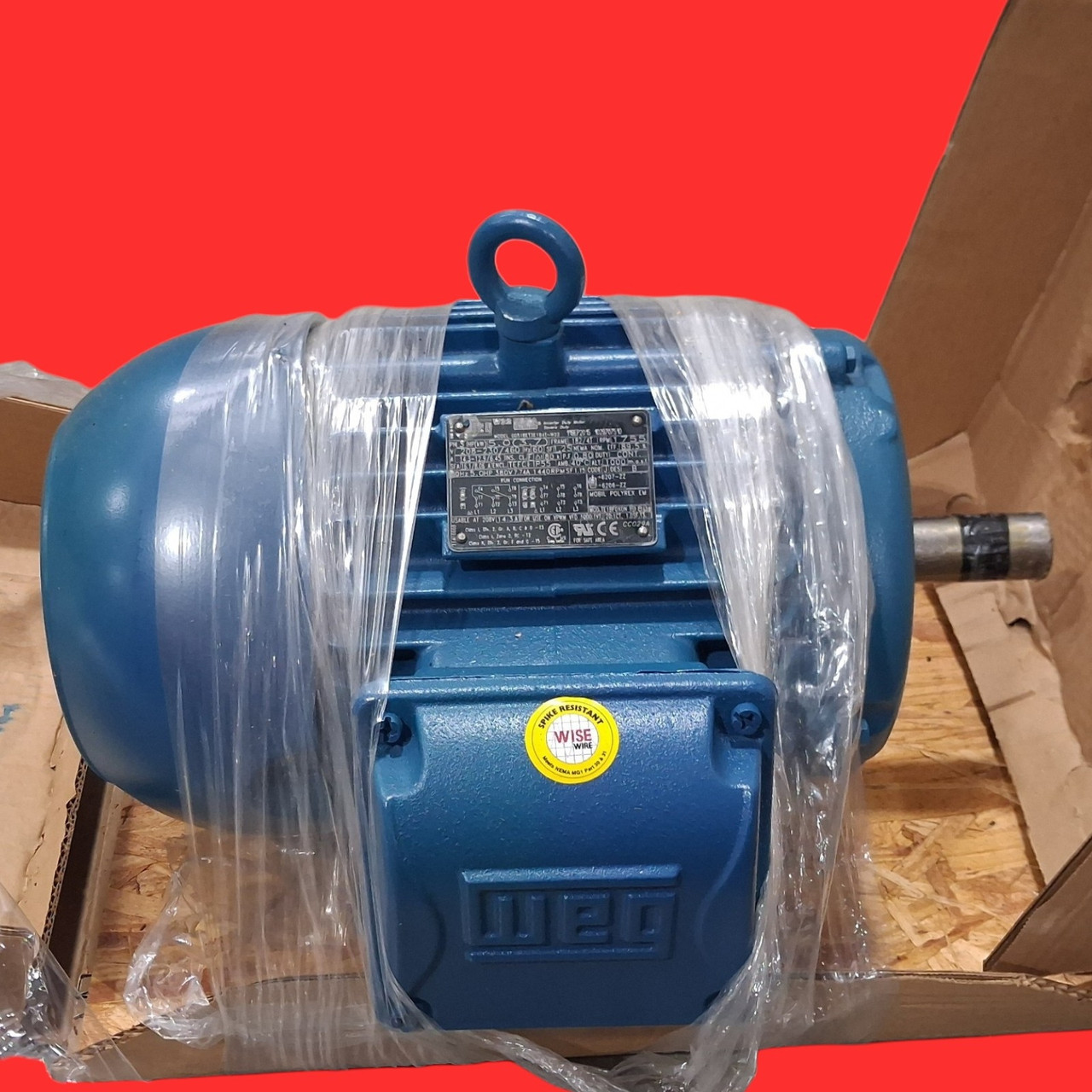

Weg 00518ET3E184T-W22 NEMA Premium Efficiency 5 HP 4P 182/4T 3Ph 208/230/460V 60/50 Hz - TEFC - Foot-Mounted Motor
Part#: 00518ET3E184T-W22
- Power Output: 5 HP (3.7 kW)
- Speed: 1755 RPM base nameplate speed (4-pole design)
- Voltage: Dual rated for 208-230/460V AC at 60 Hz (also usable at 190/380V at 50 Hz)
- Full Load Amps: 12.9/6.45 A at 230/460V
- Frame Size: 182/4T NEMA frame with standard rigid foot-mounting
- Enclosure Type: Totally Enclosed Fan Cooled (TEFC) with an IP55 ingress protection rating against dust and moisture
- Efficiency: 89.5% nominal efficiency meeting NEMA Premium (IE3) standards
- Service Factor: 1.25, ensuring cooler operating temperatures and high overload capacity
