Product Description

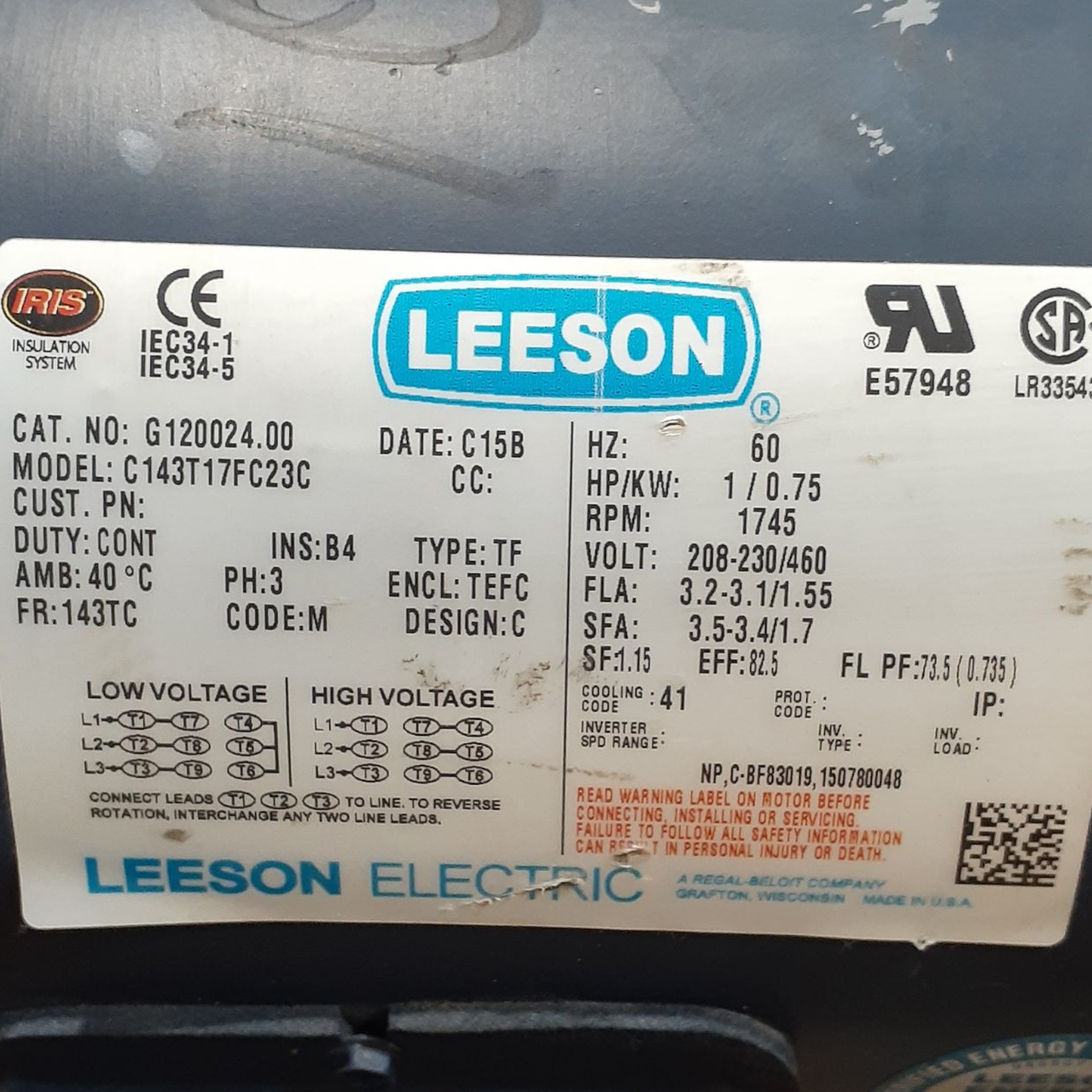

Leeson G120024.00 Motor, 1HP, 1745 RPM, 143TC, TEFC, 230/460V, 3PH, 60HZ
PN: G120024.00
- Phase: 3
- Output HP: 1 Hp
- Output KW: 0.75 kW
- Voltage: 230/460 V
- Speed: 1745 rpm
- Service Factor: 1.15
- Frame: 143TC
- Enclosure: Totally Enclosed Fan Cooled
- Thermal Protection: No Protection
- Efficiency: 82.5 %
- Ambient Temperature: 40 °C
- Frequency: 60 Hz
- Current: 3.1/1.6 A
- Power Factor: 73.5
- Duty: Continuous
- Insulation Class: B
- Design Code: C
- KVA Code: M
- Drive End Bearing Size: 6205
- Opp Drive End Bearing Size: 6203
- UL: Recognized
- CSA: Y
- CE: Y
- IP Code: 43
- Number of Speeds: 1
