Product Description

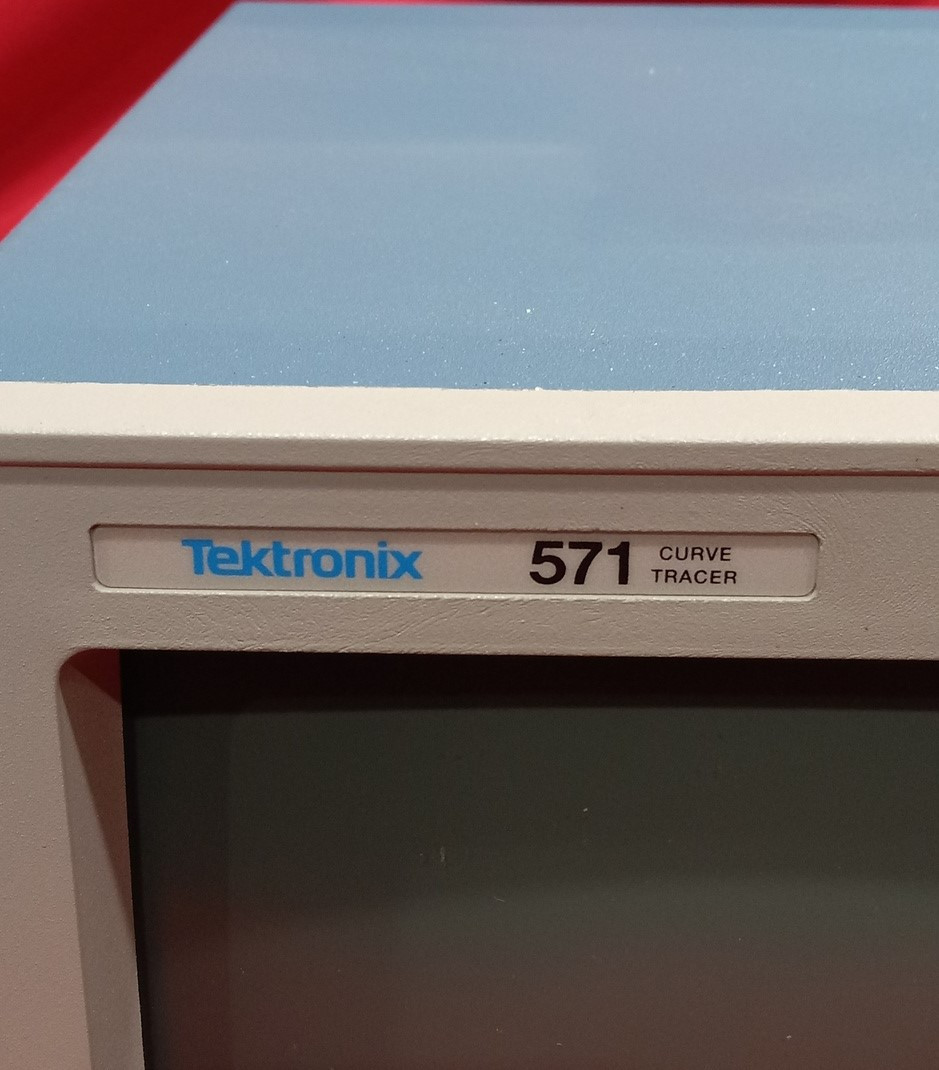

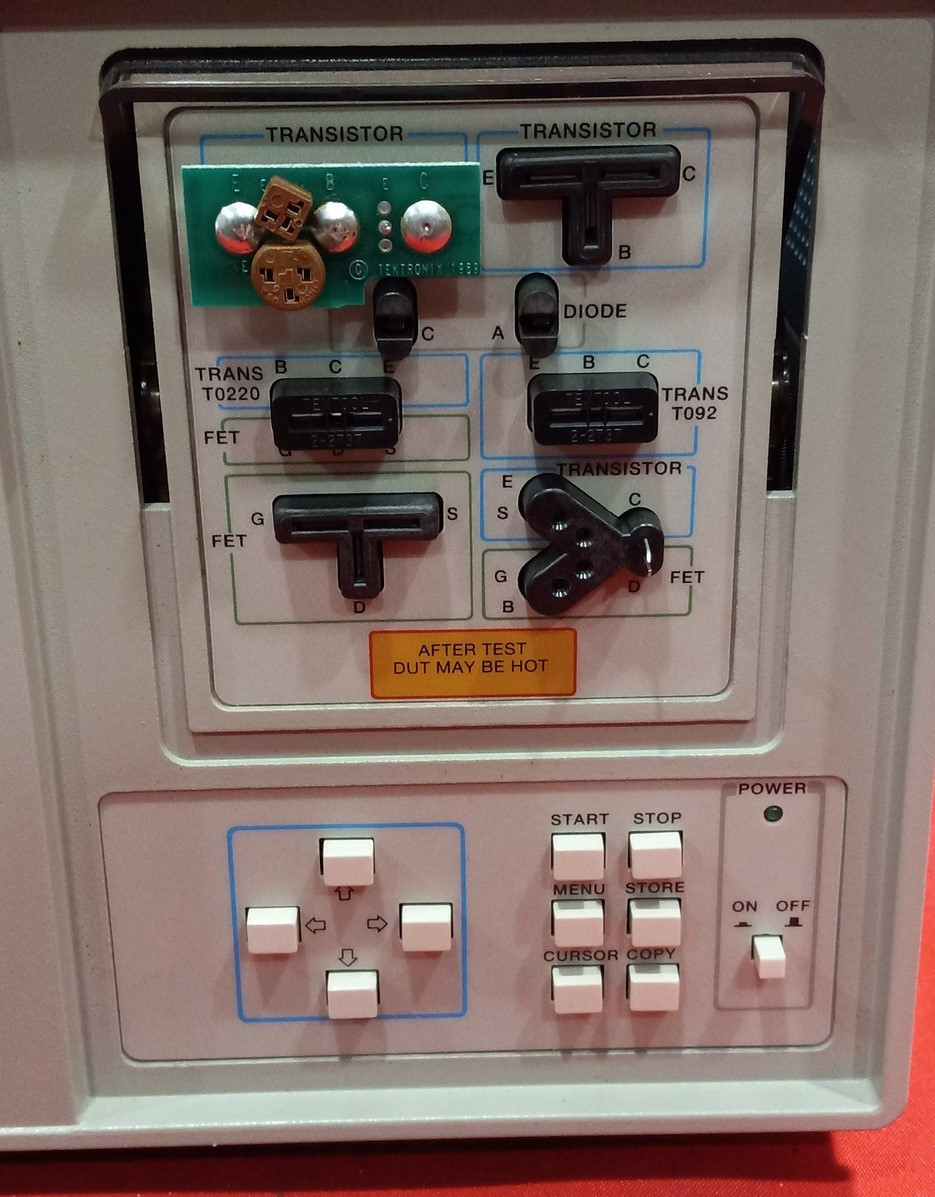

Tektronix 571 Curve Tracer
Tektronix curve tracers offer power and versatility to test the DC characteristics of semiconductor devices. The 371B curve tracer combines a simple-to-use front panel, digital acquisition and display, and programmability to serve a variety of application needs.
In the R&D lab, Tektronix curve tracers are used for characterization of new designs, extraction of SPICE parameters, failure analysis and data sheet generation. In manufacturing test, Tektronix curve tracers are used to verify device quality and process monitoring. They are also used for incoming inspection to verify device performance, perform failure analysis and match components.
-
Modes (positive and negative polarities for both modes) - High current: 250 µs pulses with maximum peak of 30 V.
High voltage: Full rectified sine wave with maximum peak of 3,000 V.
-
Polarity Modes - NPN +.
PNP -.
-
Variable Collector Supply Range - Continuously variable from 0% to 100% in 0.1% increments.
- Looping Compensation (high voltage mode) - Stray capacitance between collector terminal and ground is compensated for up to a maximum of 100 pF.
-
Resolution - 10 bits for 1024 division, 100 points per one division.
- Tolerance - Within ±2 counts.
- Max. Data Point - 1024.
- Max. Sample Rate - 1024 x line frequency.
- Min. Sample Rate - 1/8 x line frequency.
