Product Description

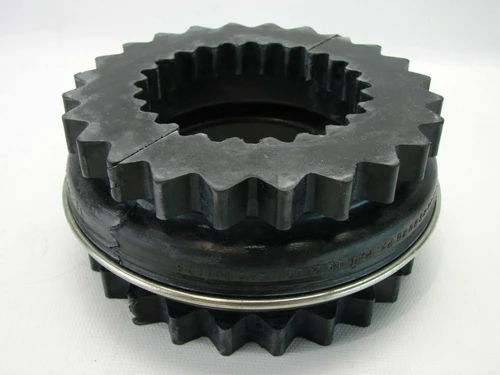

TB Wood's 8JES EPDM Split Sleeve
- Coupling Outside Diameter: 5-1/16 in
- Coupling Size: Code 8
- Sleeve Type Code: JS
- Sleeve Construction: One Piece Split
- Sleeve Material: EPDM
- Coupling Overall Length: 2-1/2 in
- Torque Capacity: 1475 in-lbs
- Maximum RPM: 4500 rpm
- Horsepower @ 100 RPM 2.3 hp
- Maximum Angular Misalignment: 1°
- Maximum Parallel Misalignment: 0.020 in
- Operating Temperature Range: -30 to +275 °F
- Series Sure-Flex
- Color: Black
- Stiffness: 4335 in·lb/rad
- Max HP @ 1750 RPM 41 HP
- Max HP @ 3500 RPM 82 HP
