Product Description

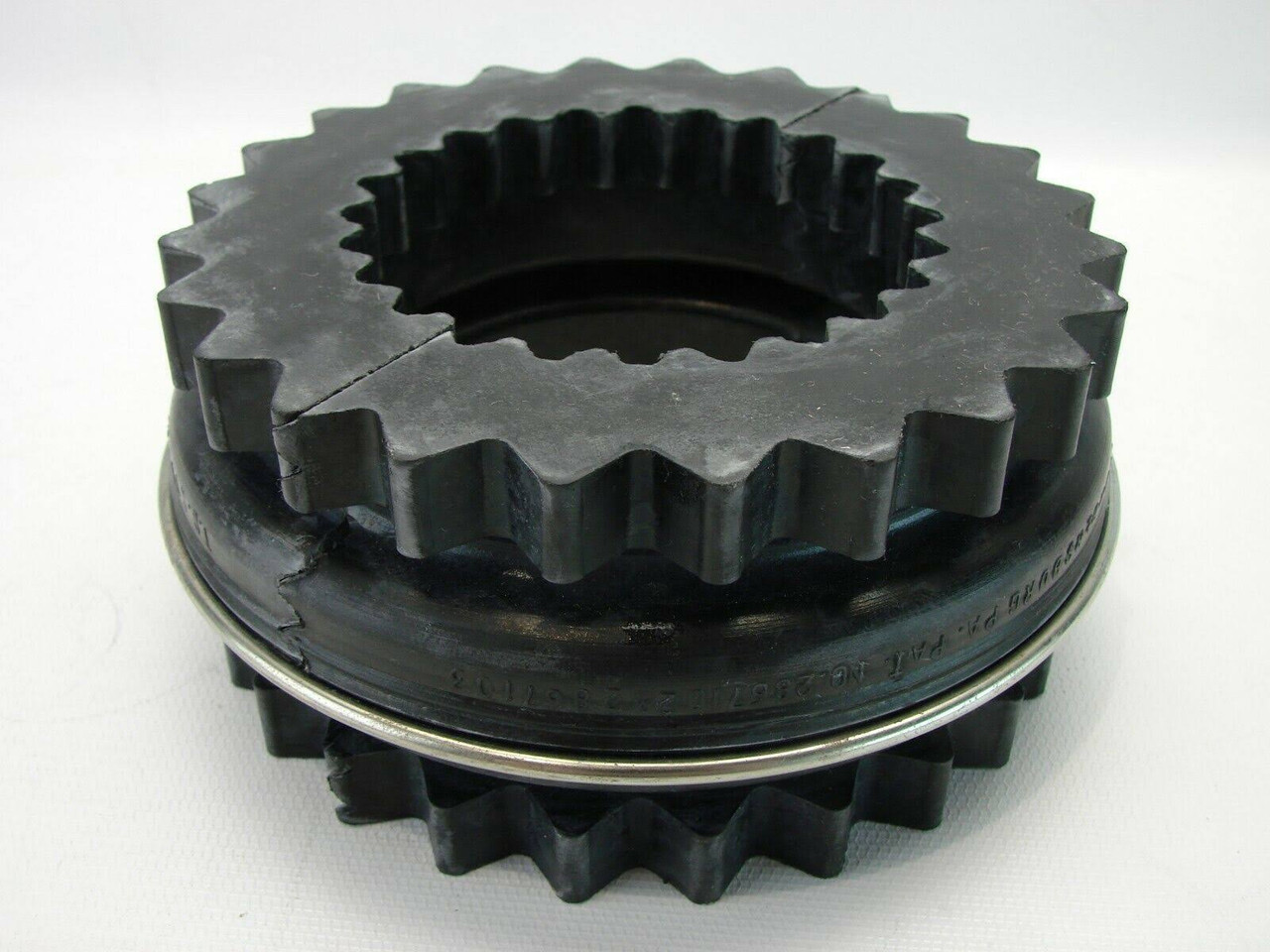

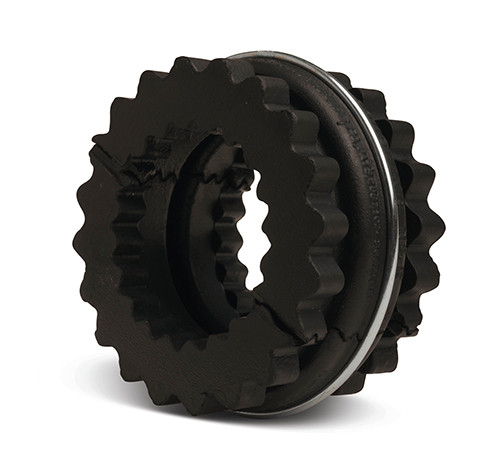

TB Woods 8E EPDM SF+ Sleeve
Coupling Sleeve - 8, E, Two Pieces with Ring, EPDM
| Coupling Outside Diameter | 5-1/16 in |
|---|---|
| Coupling Size Code | 8 |
| Sleeve Type Code | E |
| Sleeve Construction | Two Pieces with Ring |
| Sleeve Material | EPDM |
| Coupling Overall Length | 2-1/2 in |
| Torque Capacity | 1475 in-lbs |
| Maximum RPM | 4500 rpm |
| Horsepower @ 100 RPM | 2.3 hp |
| Maximum Angular Misalignment | 1 ° |
| Maximum Parallel Misalignment | 0.020 in |
| Operating Temperature Range | -30 to +275 °F |
