Product Description

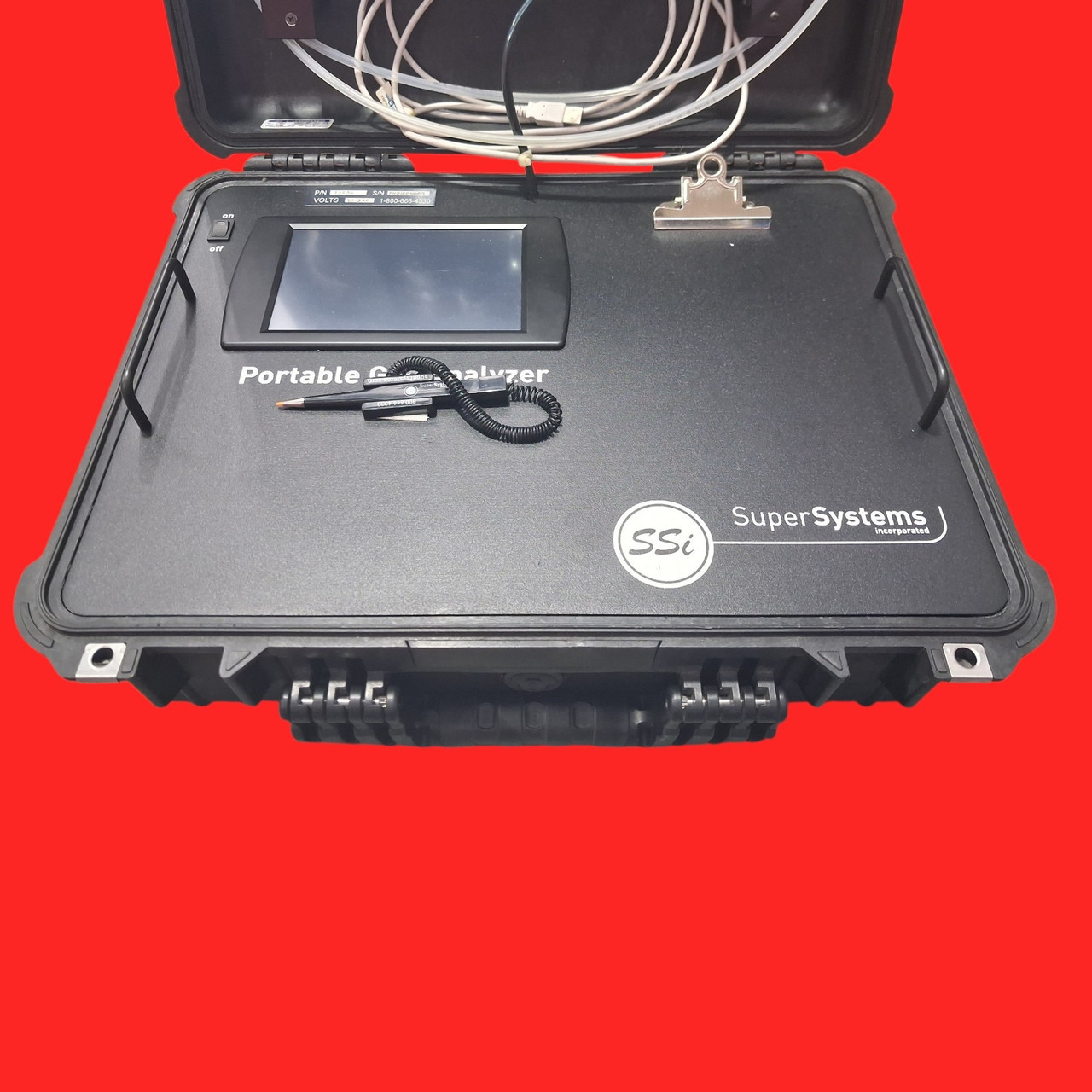

SSI Super Systems PH2 Portable Hydrogen Analyzer, PN: 13536
Part #13536
Condition: Used in good shape. (Will need calibrated for compliance)
The SSI Super Systems PH2 Portable Hydrogen Analyzer (Part Number: 13536) is a specialized instrument used primarily in industrial heat treatment applications, such as nitriding and ferritic nitrocarburizing (FNC). It measures hydrogen levels to provide critical process data, including percent Hydrogen (H2), percent Dissociation (DA), and percent Ammonia (NH3).
Key Features and Functions:
- Measurement Capabilities: The device uses a thermal conductivity sensor to measure Hydrogen (0–100% range) and calculate other related parameters, including %DA (0-100%) and %NH3 (0-100%).

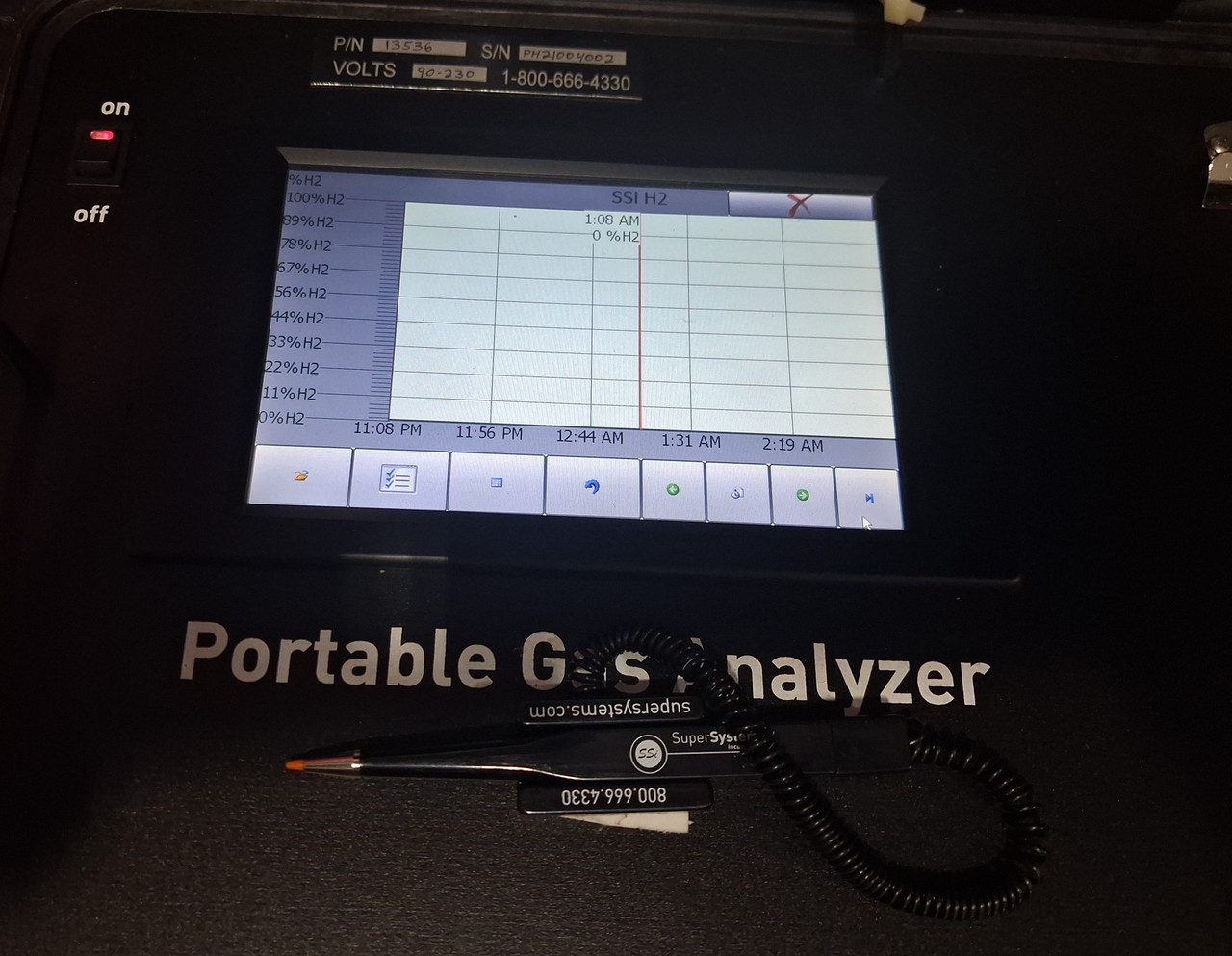

- Data Visualization: The analyzer features a touchscreen display that provides a chart view, allowing users to view from 1 to 24 hours of process variable data on the screen.
- Data Logging: It offers internal storage to record and analyze data from heat treatment processes, allowing for auditing and quality control.

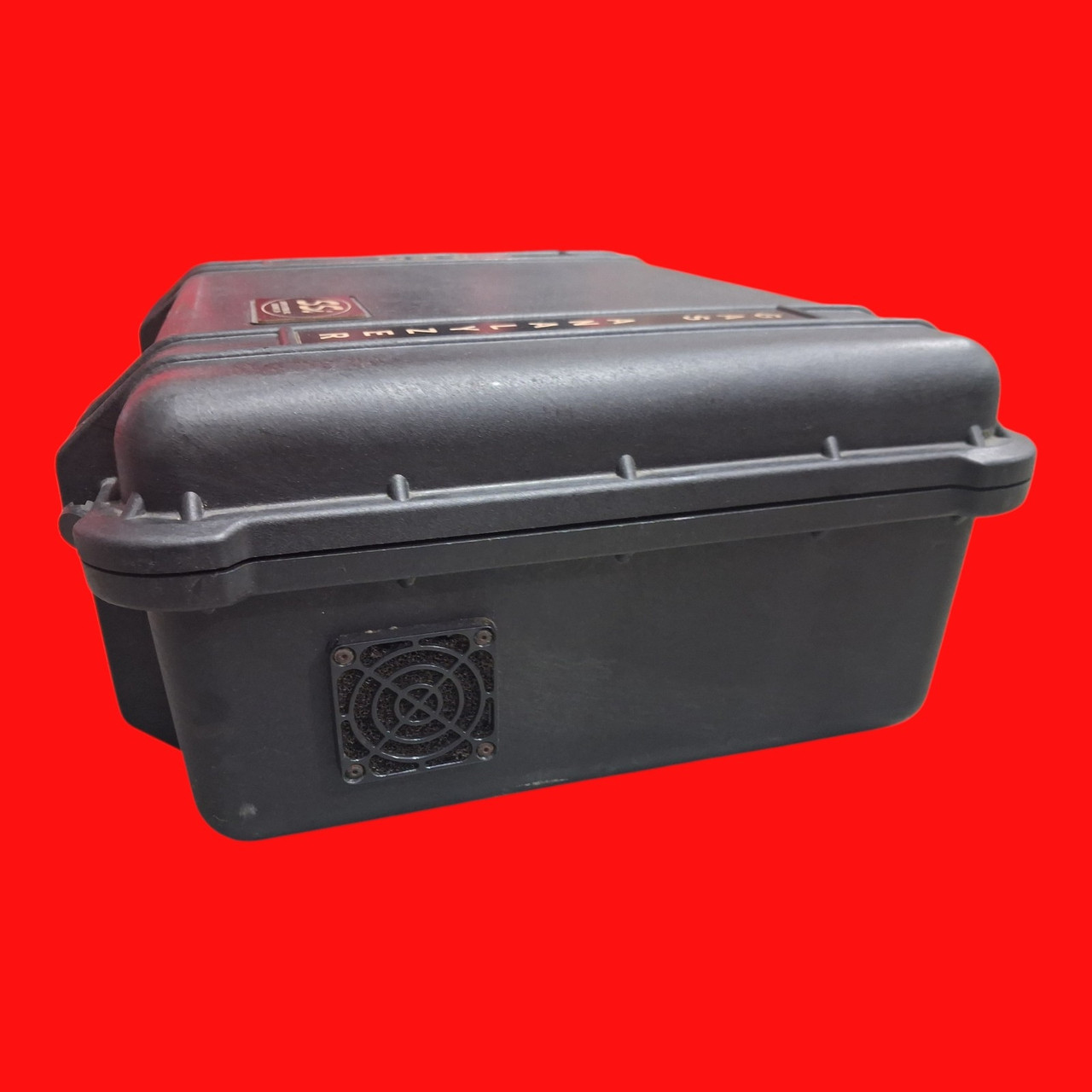

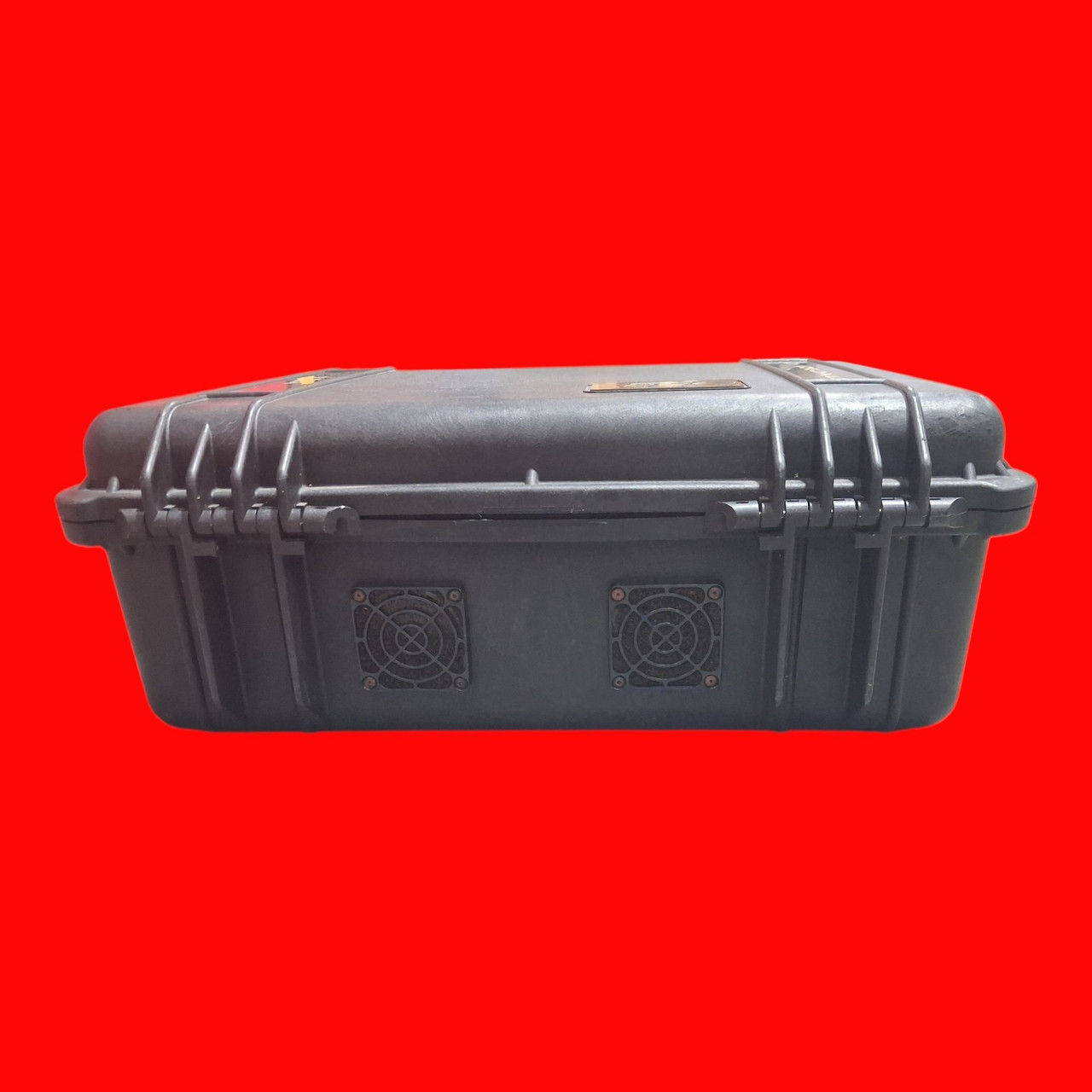

- Portability: Designed for easy transport within a plant, making it suitable for checking multiple furnace locations.
- Operation Specs: It requires a 100-240 VAC power source and utilizes an Ethernet/USB port for connection to a PC.
Applications:
The PH2 Analyzer (PN 13536) is commonly used for:
The PH2 Analyzer (PN 13536) is commonly used for:
- Nitriding and FNC processes: Monitoring the atmosphere within a furnace to maintain appropriate dissociation rates.
- Furnace troubleshooting: Identifying issues related to atmosphere composition in heat-treating furnaces.
- Atmosphere Verification: Assisting in compliance with CQI-9 requirements for heat treatment.
Operation and Calibration:
- Gas Flow: The sensor is designed to operate with a recommended sample gas flow rate of 1.5 SCFH.
- Calibration: The analyzer is calibrated using a zero gas (nitrogen or argon) and a span gas (typically (100%) hydrogen or a known hydrogen mix).

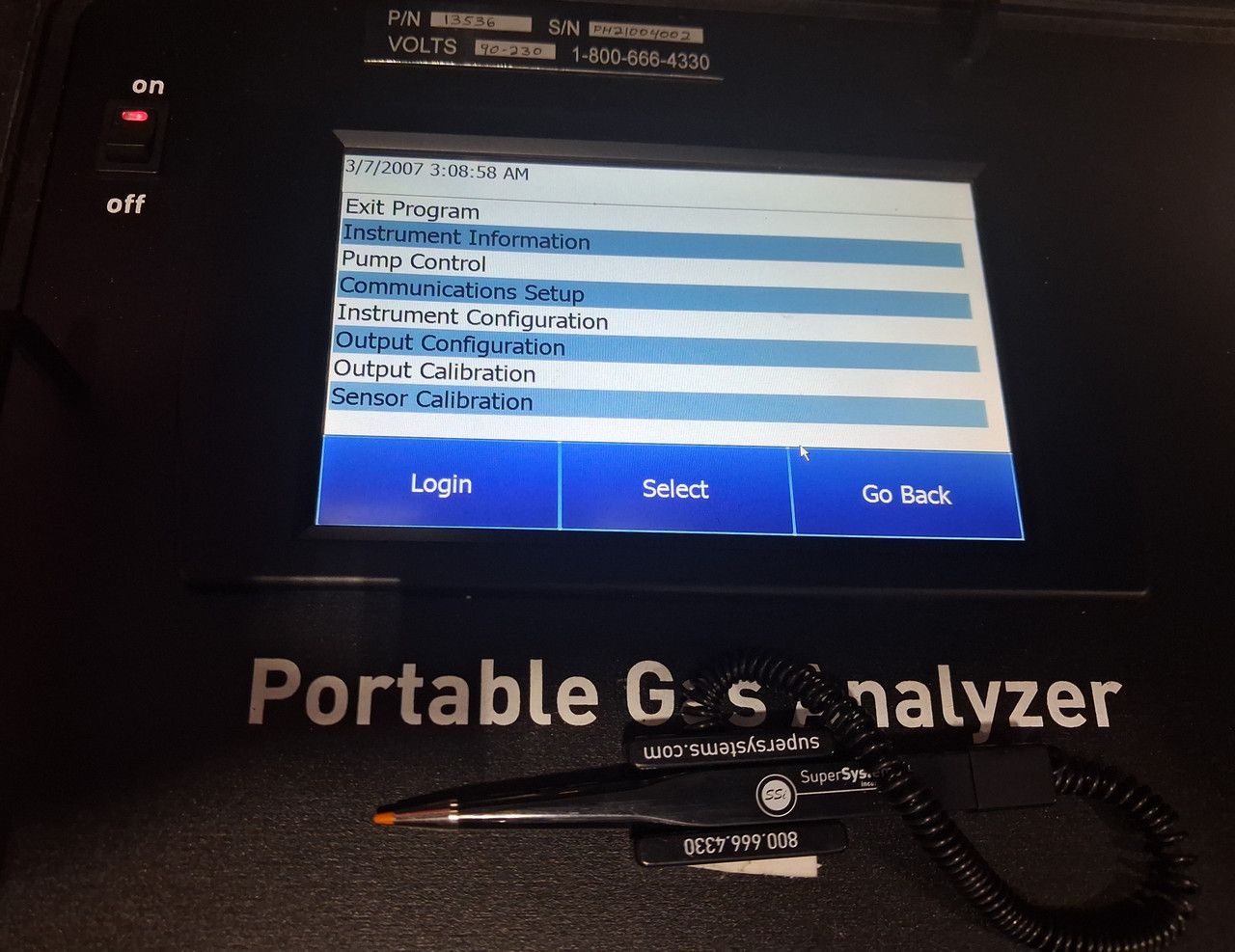

- Interface: The unit uses a user-friendly touchscreen interface with a sub-menu available by pressing and holding the screen.
