Product Description

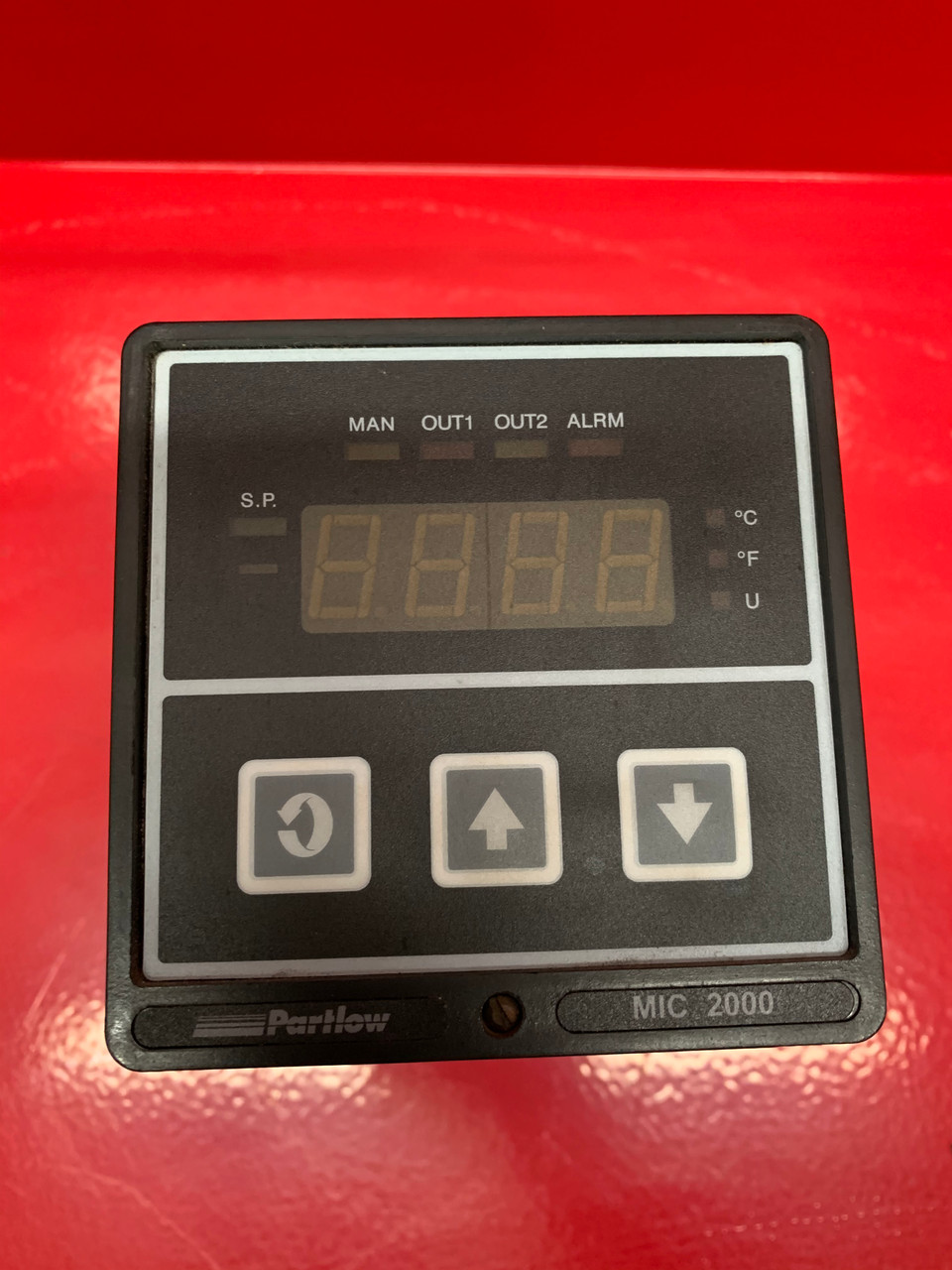

Partlow Process Controllers, MIC 2000 Series
Item# 2120101 - MIC 2000 TCMV/SS/--/RL/---/115
MIC 2000 Series Information
The MIC 2000 is a single loop, 1/4 DIN controller capable of controlling a variety of processes ranging from simple on/off to dual 4‑20mA output with full PID. Inputs include thermocouple, RTD, millivolt, volt, and milliamp. Standard features include: isolated process input, setpoint and output limits, and .56‑inch‑high LEDs. It will display programming of process deviation and setpoint, of percent output, and scaling with decimal point positioning. Optional features include: up to three relay outputs, three types of alarms, remote setpoint input, electric motor modulation, RS‑485 communications and process value retransmission output as well as restricted security access. Access to configuration parameters and setpoint may be restricted by using the instrument's security‑access mode.Specifications
Item Number: 2120101
Brand: Partlow
Item Category: Process Controllers
Series: MIC 2000
Case Size: 1/4 DIN
Power Supply: 115 VAC
Input Type: Thermocouple; Millivolts DC
Number of Outputs: 1
Output Type: Solid State Relay Driver
Display Type: LED
Thermocouple Class: J;K;T;R;S;E;B;N;C
Approvals: UL;CSA
H x W x D: 3.78 in x 3.78 in x 6.53 in
