Product Description

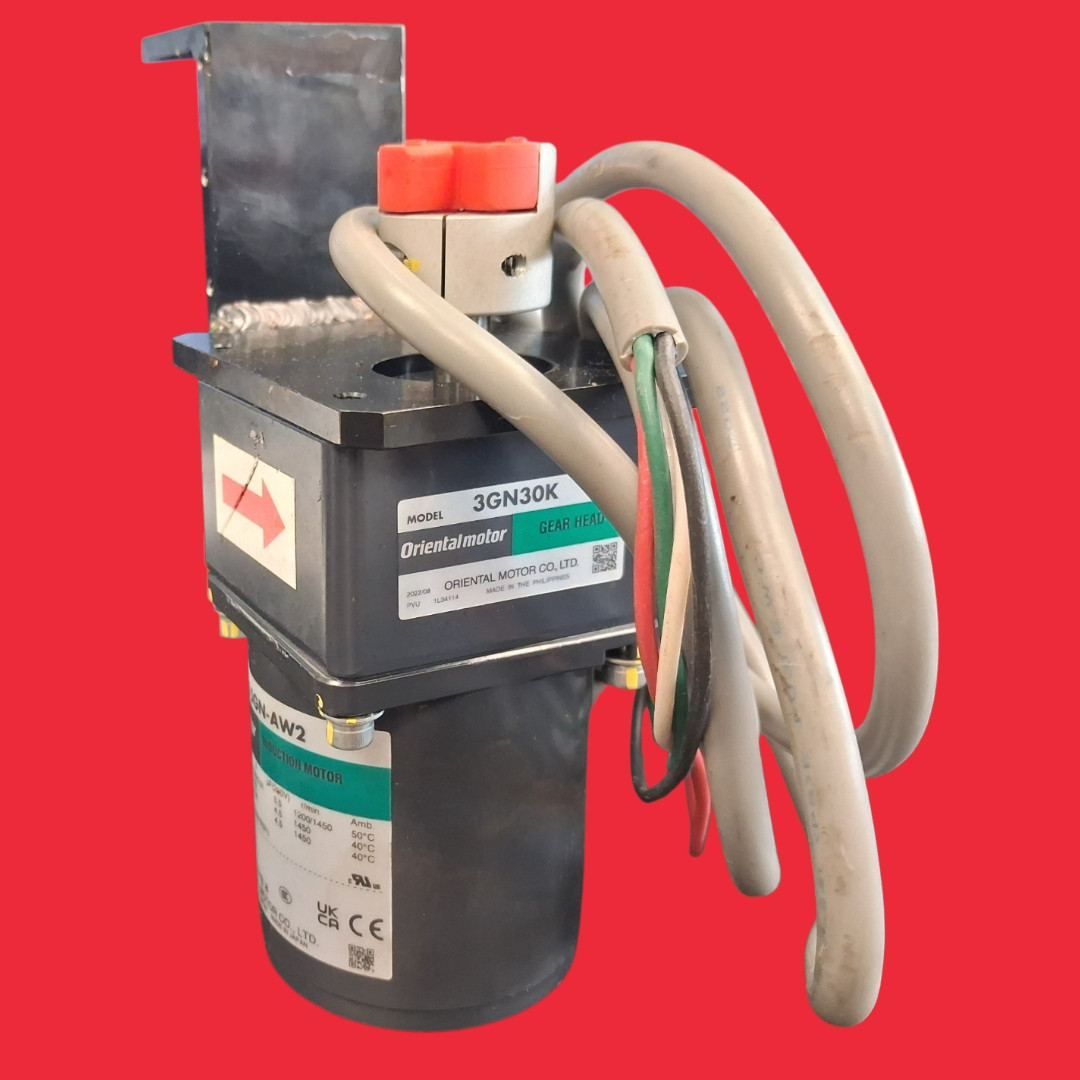

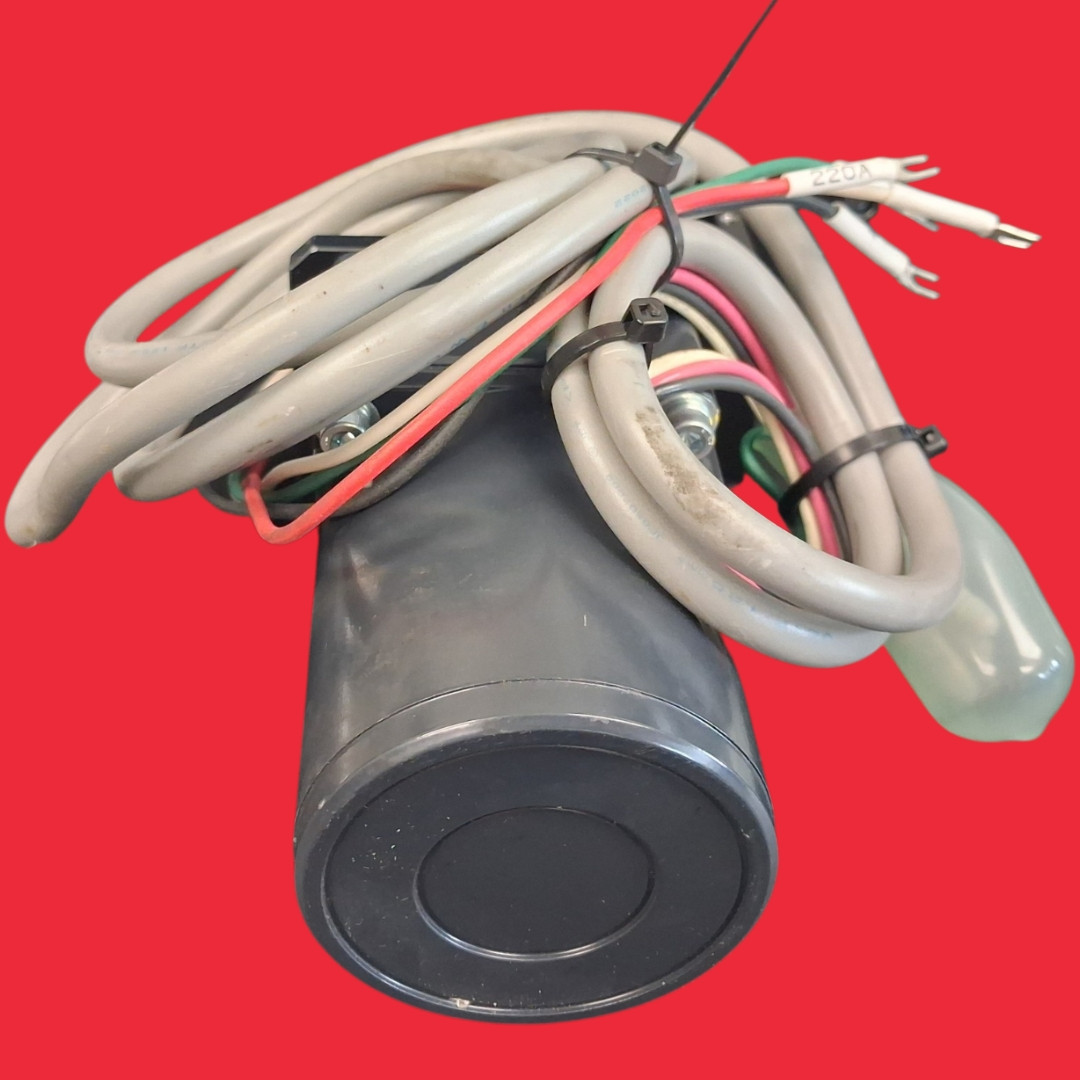

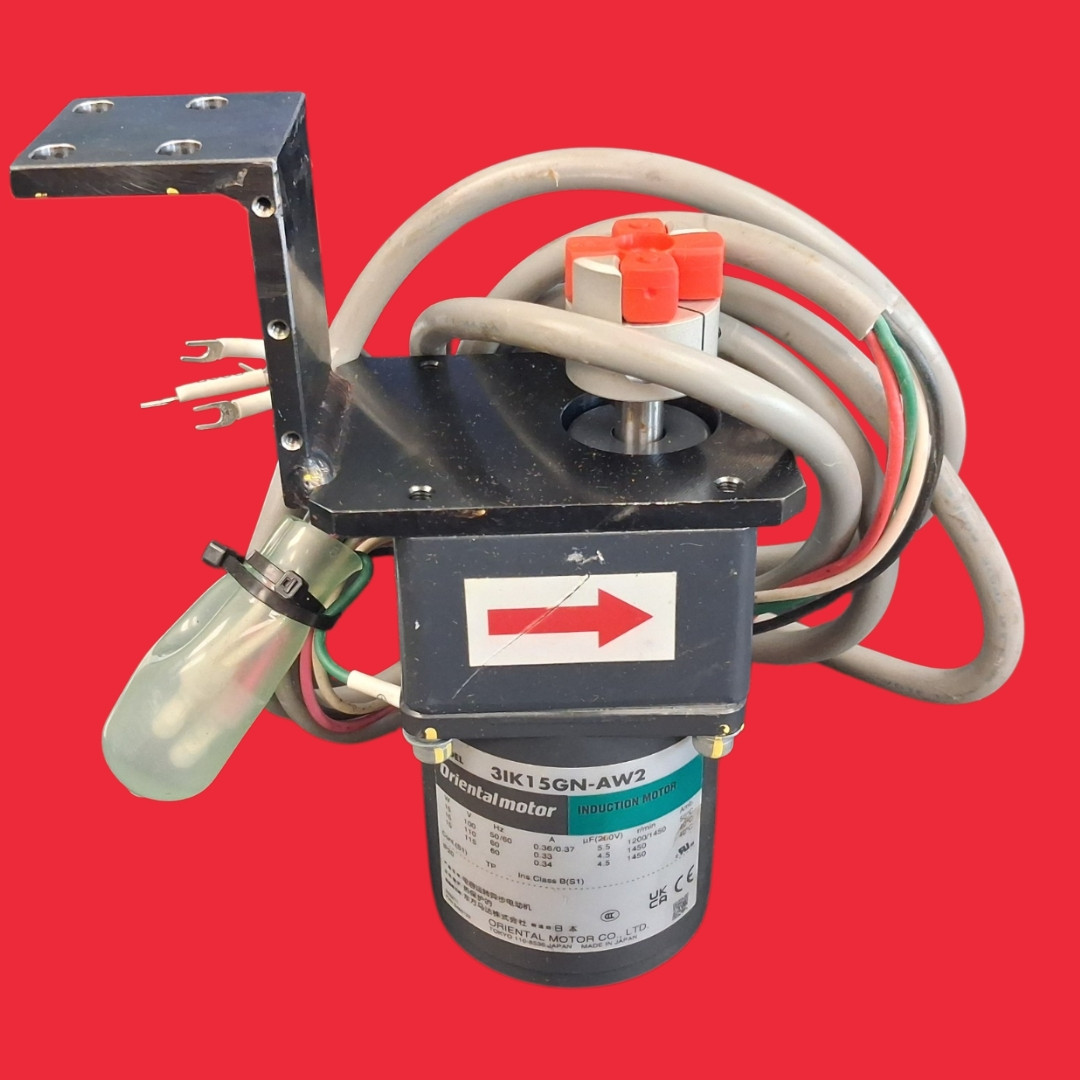

Oriental Motor Single-Phase AC Induction Gear Motor Assembly- 3IK15GN-AW2 / 3GN30K
The Oriental Motor 3IK15GN-AW2 / 3GN30K single-phase AC induction gear motor assembly is a 15 W (1/50 HP) single-phase AC induction motor paired with the 3GN30K gearhead, which provides a 30:1 gear reduction. It is an ideal, robust setup for unidirectional, continuous-duty applications like small conveyors and automation equipment.

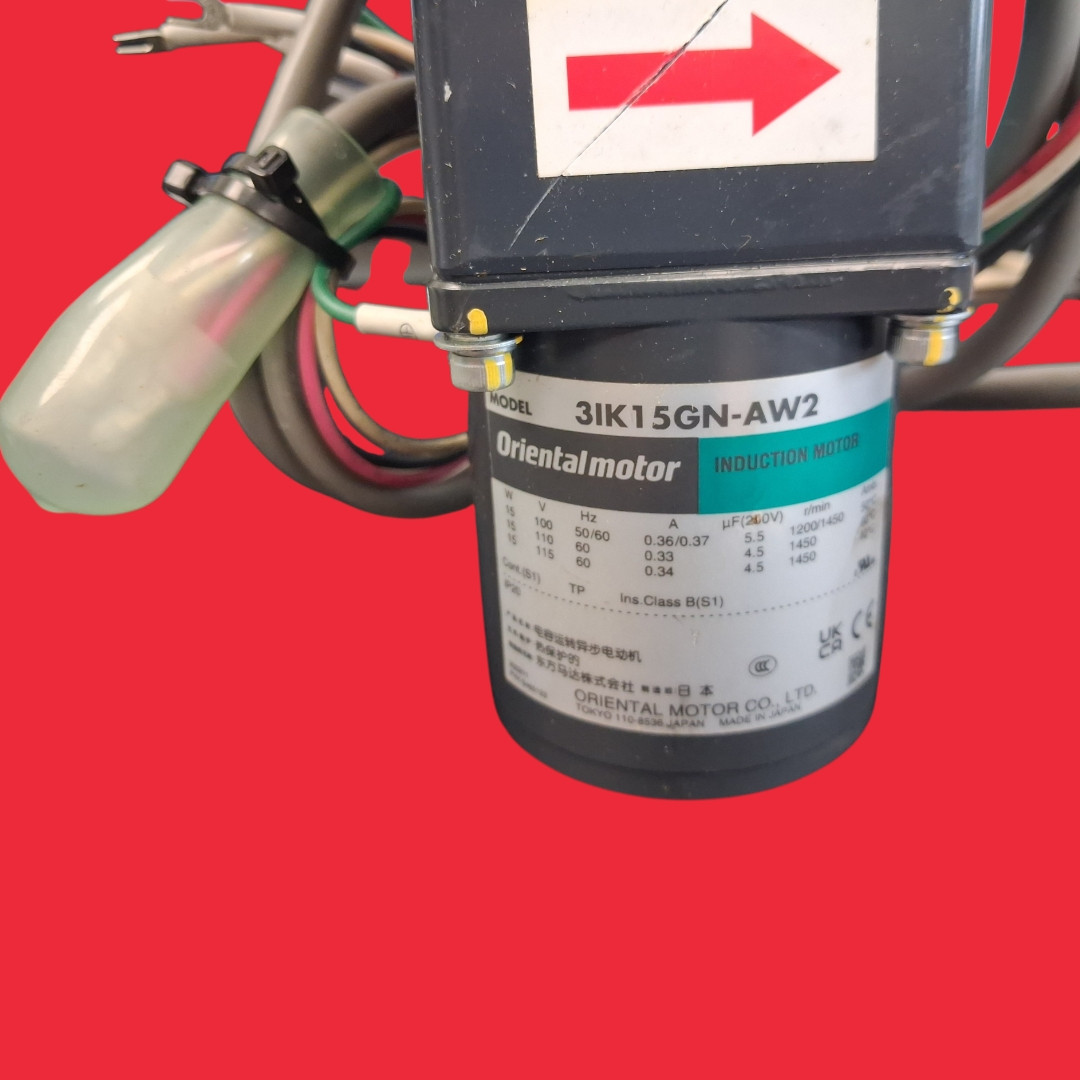

Motor (3IK15GN-AW2):
- Motor Type: Single-Phase AC Induction Motor
- Output Power: 15 Watts (1/50 HP)
- Input Voltage: 110 / 115 VAC
- Product Series: World K Series
- Shaft Type: Pinion Shaft (designed for gearheads)
- Safety Standards: UL, CSA, CCC, EN, CE
Gear Head (3GN30K):
- Gear Type: Parallel Shaft
- Gear Ratio: 30:1 reduction
- Output Shaft: 10 mm Diameter Metric Shaft
