Product Description

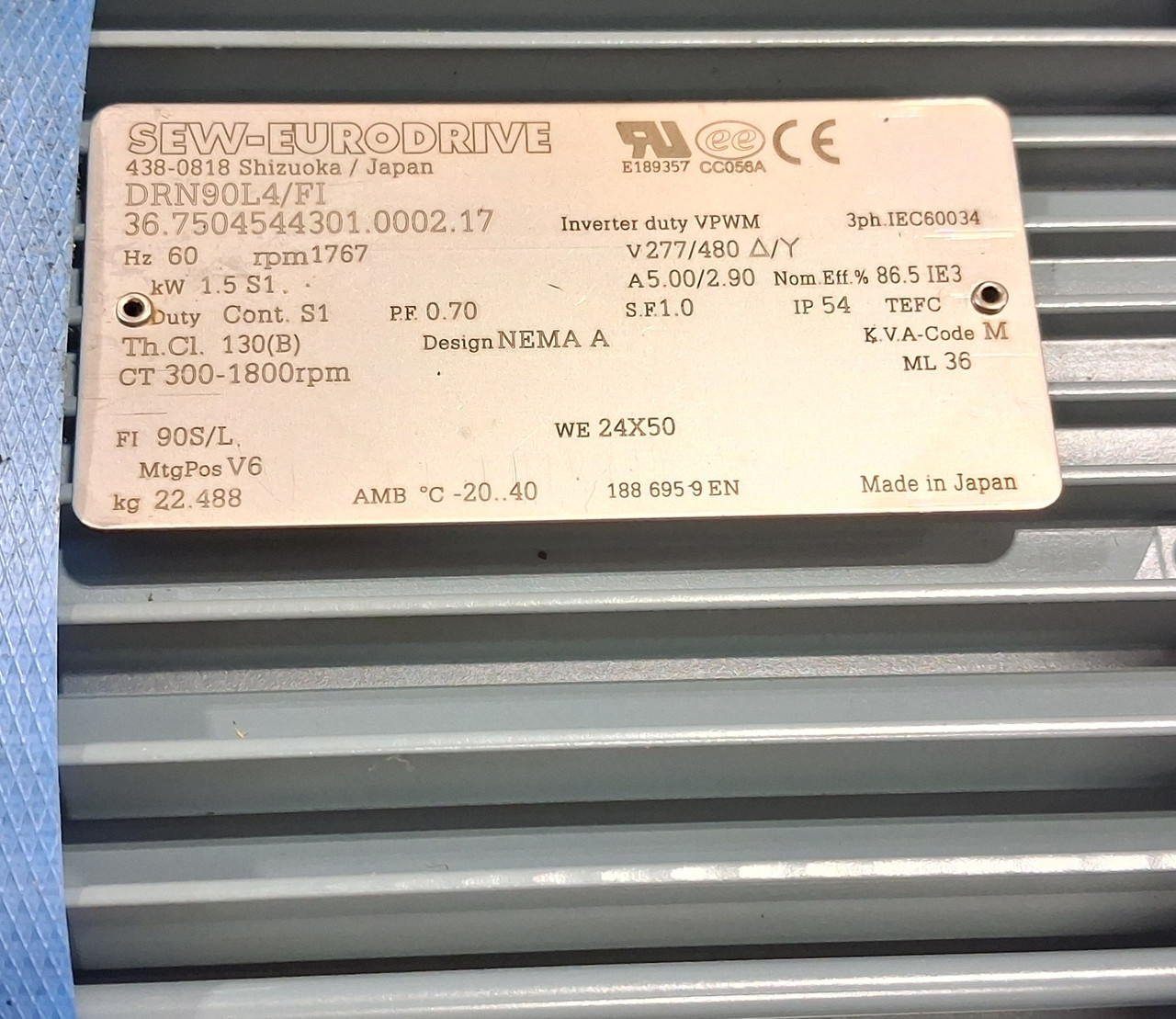

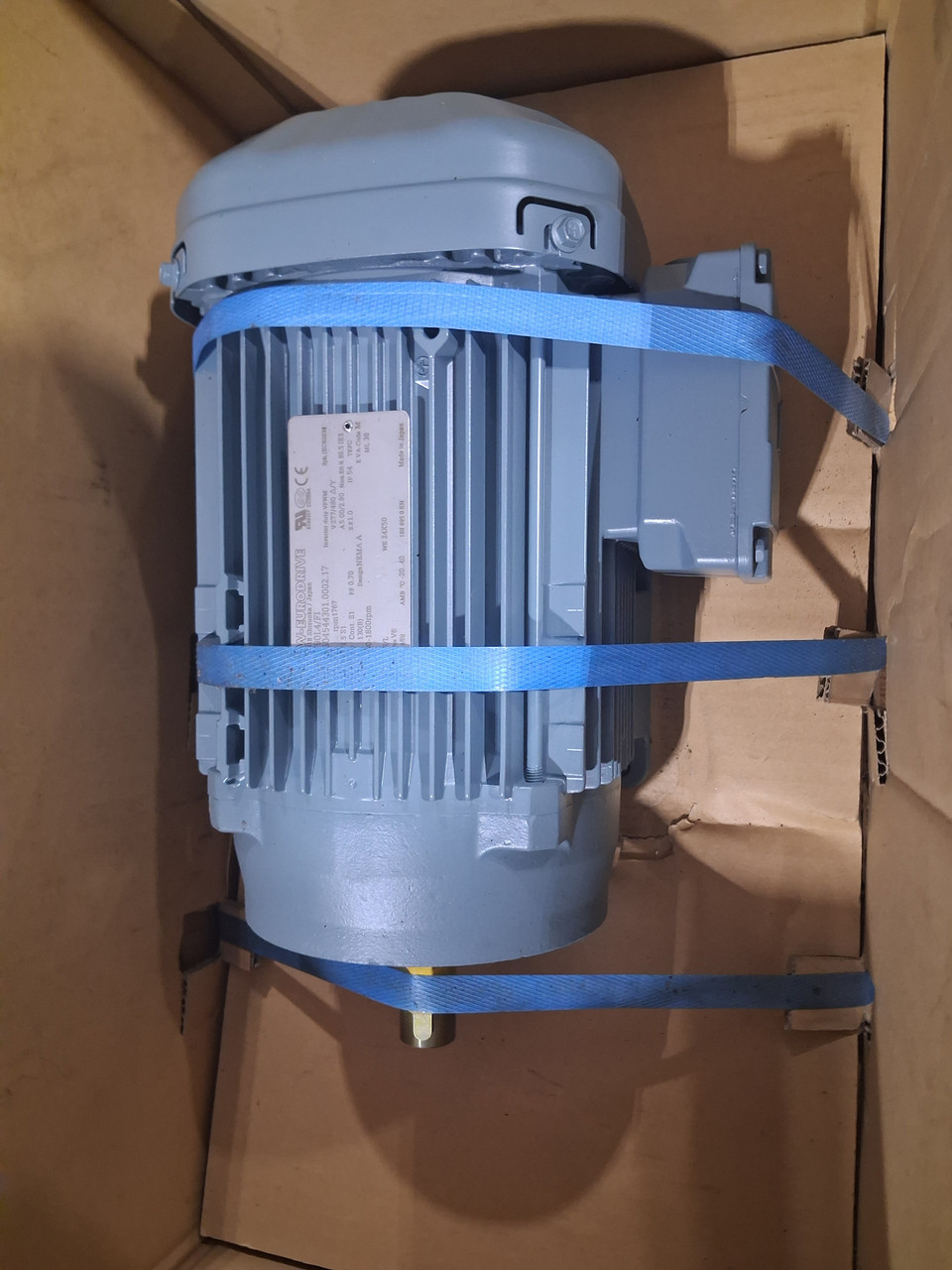

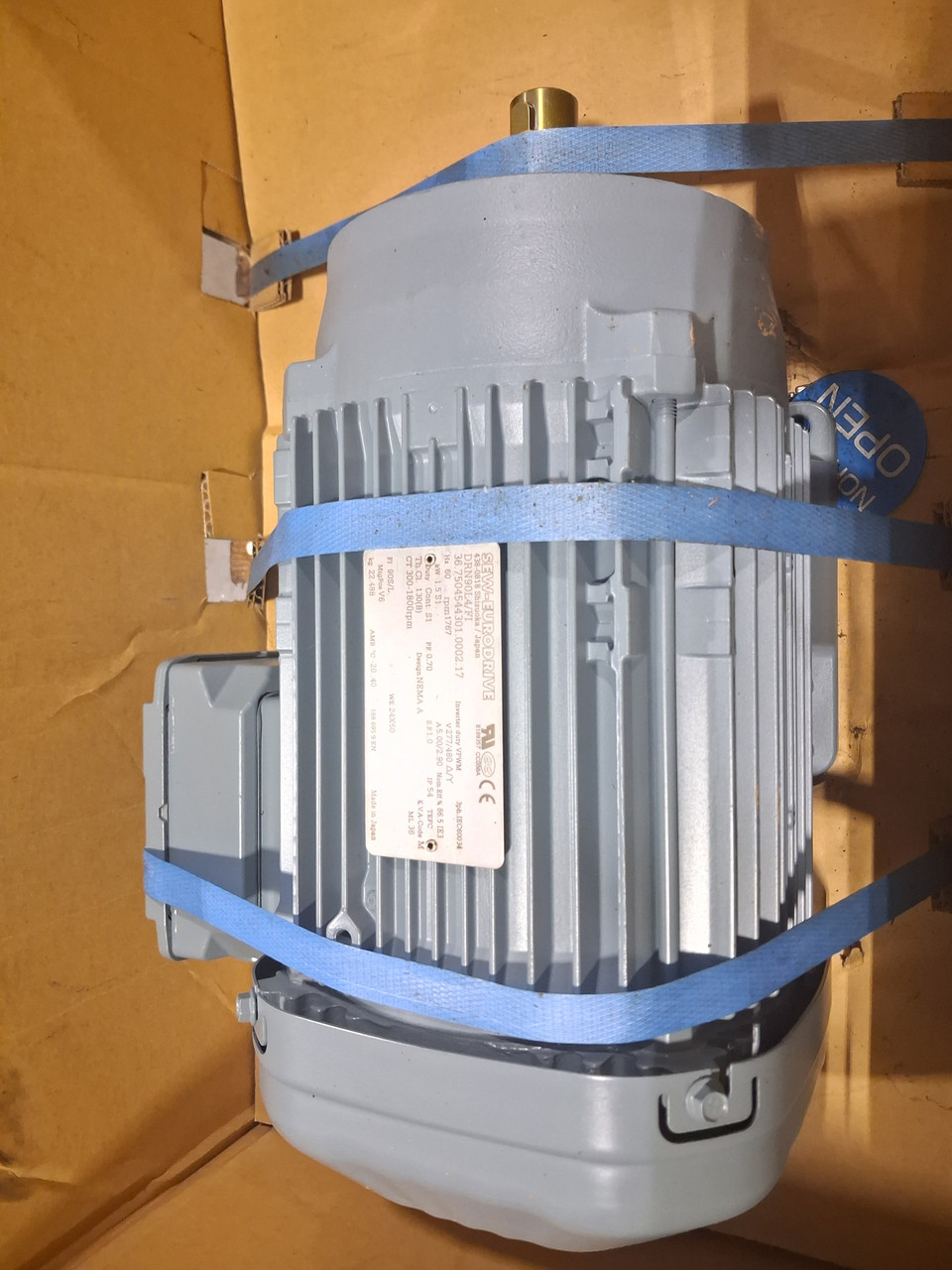

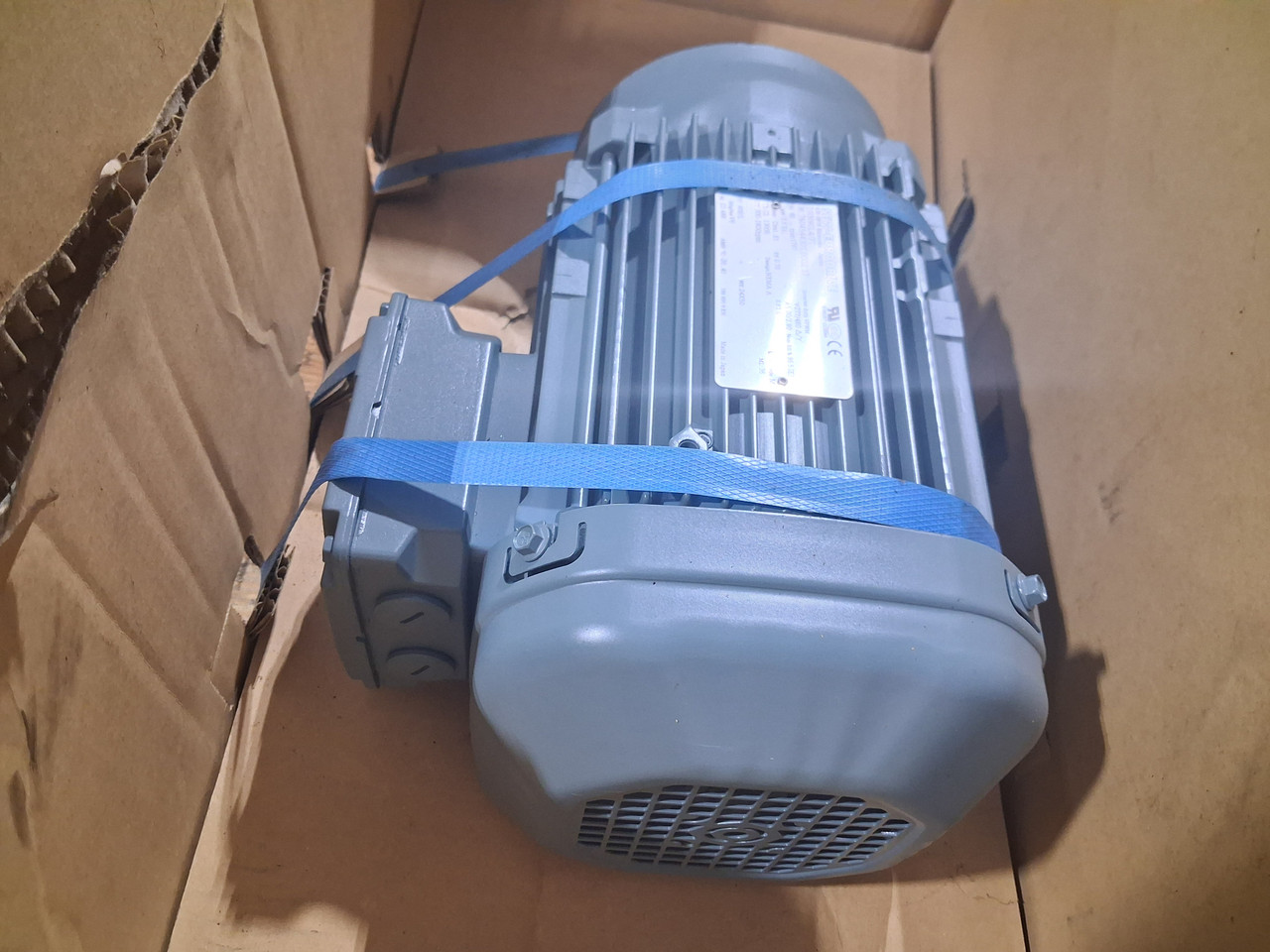

SEW DRN90L4/FI TEFC, 3-Phase, 1767 RPM AC Motor
Part#: DRN90L4/FI
- Phase: 3-phase
- Frequency: 60 Hz
- Rotational Speed: 1767 rpm
- Power Output: 1.5 kW (~2 Horsepower)
- Operating Duty: Continuous duty
- Power Factor: 0.70
- Supply Voltage: 277 V Delta (Δ) / 480 V Wye (Y)
- Current Rating: 5.00 A / 2.90 A
- Efficiency Rating: 86.5% IE3 (Premium Efficiency)
- Service Factor: 1.0
- Enclosure Rating: IP 54
- Cooling Type: TEFC (Totally Enclosed Fan Cooled)
- NEMA Design: NEMA A
- Inverter Application: Inverter duty VPWM / Constant Torque (CT) range of 300–1800 rpm
- Thermal Class: 130(B)
- Mounting Position: MtgPos V6
- Weight: 22.488 kg (~49.6 lbs)
- Ambient Temperature Range: -20°C to +40°C
