Product Description

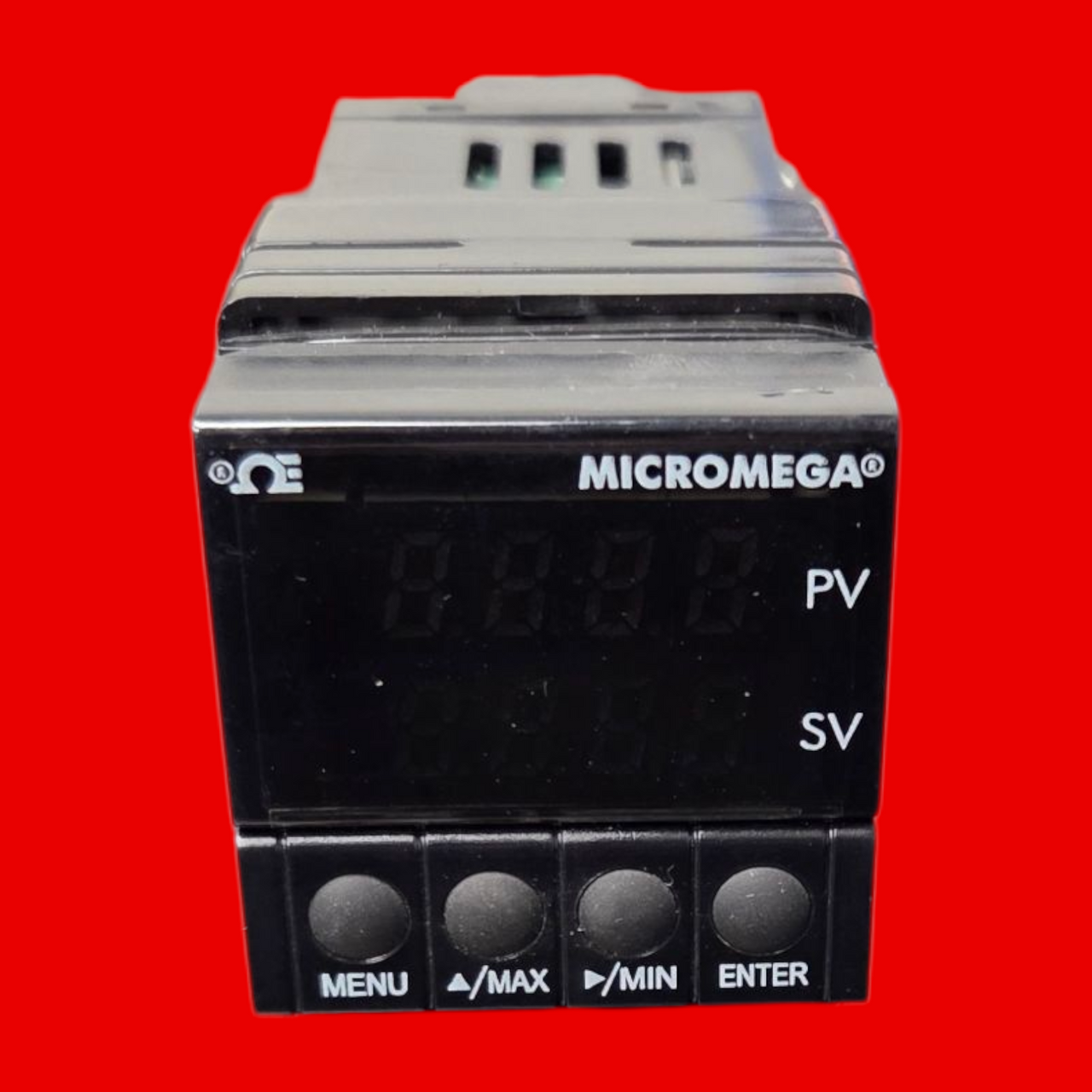

Omega Micromega CN77000 Series Controller, CN77343-C4
PN: CN77343-C4
Description
Dual displays for simultaneous display of measured value and setpoint. Selectable preset tune, adaptive tune, autotune, PID, PI, PD control modes. The
dual control outputs can be configured for a variety of control and alarm applications such as heat, heat/cool, heat/alarm, cool or cool/alarm. The ramp to
setpoint feature allows the user to define the rate of rise to setpoint, minimizing thermal shock to the load during start-up. Maximum ramp time 99.59 (HH.MM),
Soak: 00.00 to 99.59 (HH.MM),Damping: 1 to 8 in unit steps. Input types J,K,T,E,R,S,B,N,J-DIN°C, RTD 100Ω 0.00385, 100Ω & 1kΩ 0.00392, 0 to 20 mA,
4 to 20 mA, 0 to 100mV, 0 to 1V, 0 to 10Vdc. Alarm 1 output includes SPST relay, 3A @ 120Vac, 3A @ 240Vac.
- Case Type: NEMA 12 bezel for 1/16 DIN panel cutout 45mm x 45mm (1.772 x 1.772")
- Control Output #1: Pulsed 10Vdc @20mA (for use with external SSR)
- Control Output #2: Relay: Form “C” 5A @ 120Vac, 3A @ 240Vac
- Model Description Cont: Isolated RS485, 300 to 19.2k baud
