Product Description

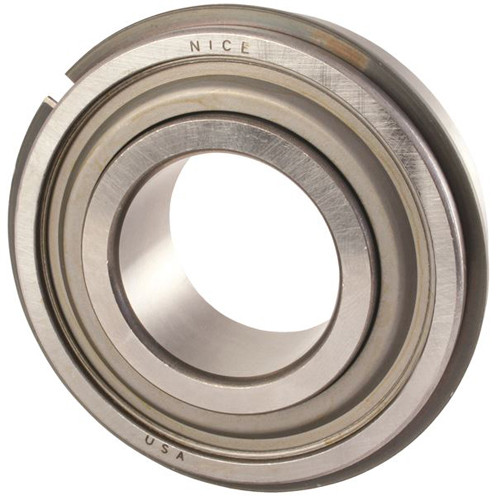

Nice Ball Bearing 7520DLGTN Heavy Duty Radial Ball Bearing
Round Bore, 1.2500 in ID, 2.5625 in OD, 0.7500 in Width, Double Sealed, C0 Internal Clearance
| Bore Type | Round |
|---|---|
| Bore Diameter | 1.2500 in |
| Outside Diameter | 2.5625 in |
| Overall Width | 0.7500 in |
| Closure Type | Double Sealed |
| Row Type & Fill Slot | Single Row Non-Fill Slot |
| Snap Ring Included | With Snap Ring |
| Internal Clearance | C0 |
| Operating Temperature Range | Maximum of +300 °F |
| Maximum Operating Temperature | 300 ºF |
| Dynamic Load Capacity | 5360 lbf |
| Static Load Capacity | 2620 lbf |
| Precision Rating | Not Rated |
| Finish/Coating | Chrome Steel |
| Bearing Material | 52100 Bearing Quality Steel |
| Cage Material | Nylon |
| Inner Ring Width | 0.8750 in |
| Outer Ring Width | 0.7500 in |
| Fillet Radius | 0.035 in |
| Maximum RPM | 5000 rpm |
| Outside Diameter Design | Straight with Snap Ring Groove |
| Series | 7500 |
| Manufacturer UPC Number | 637400292782 |
| Weight | 0.63 lbs |
