Product Description

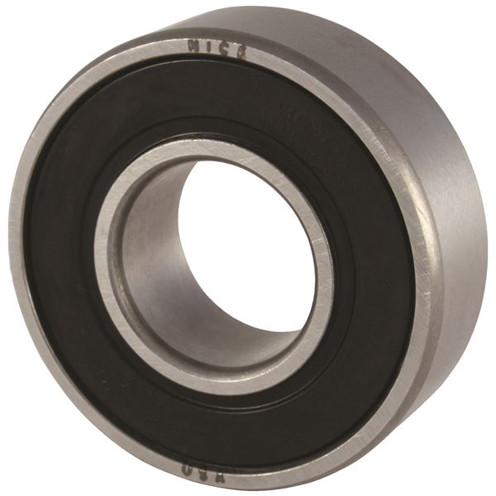

Nice Ball Bearing 1630 DCTN Precision Ground Radial Bearing
- Precision Ground Radial Bearing
- -Inner Dia. 19.05mm
- -Outer Dia. 41.28mm
- -Width 12.7mm
- -Deep Groove Ball Bearing
|
Round |
|---|---|
| Bore Diameter | 0.7500 in |
| Outside Diameter | 1.6250 in |
| Overall Width | 0.5000 in |
| Closure Type | Double Sealed |
| Row Type & Fill Slot | Single Row Non-Fill Slot |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C0 |
| Maximum Operating Temperature | 284 ºF |
| Operating Temperature Range | -40 to +284 °F |
| Dynamic Load Capacity | 2595 lbf |
| Static Load Capacity | 1010 lbf |
| Precision Rating | Not Rated |
| Finish/Coating | Chrome Steel |
| Bearing Material | 52100 Bearing Quality Steel |
| Cage Material | Nylon |
| Inner Ring Width | 0.5000 in |
| Outer Ring Width | 0.5000 in |
| Fillet Radius | 0.025 in |
| Maximum RPM | 5000 rpm |
| Outside Diameter Design | Straight |
| Series | 1600 |
| Manufacturer UPC Number | 637400291693 |
| Weight | 0.15 lbs |
