Product Description

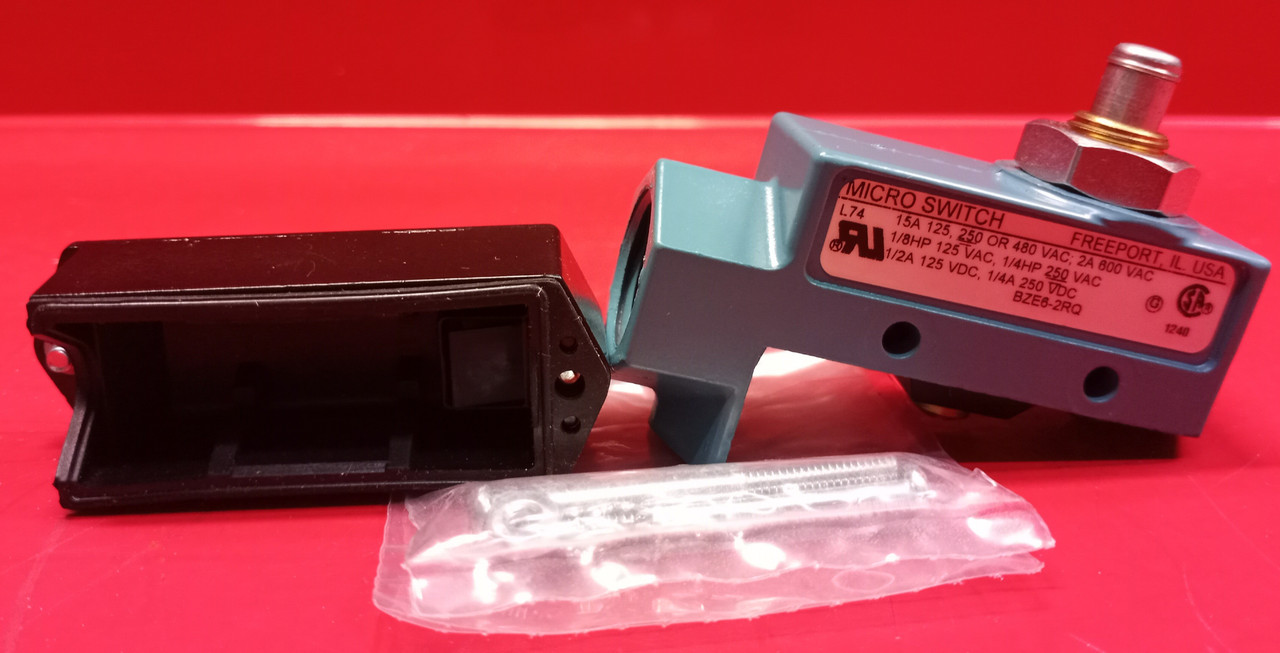

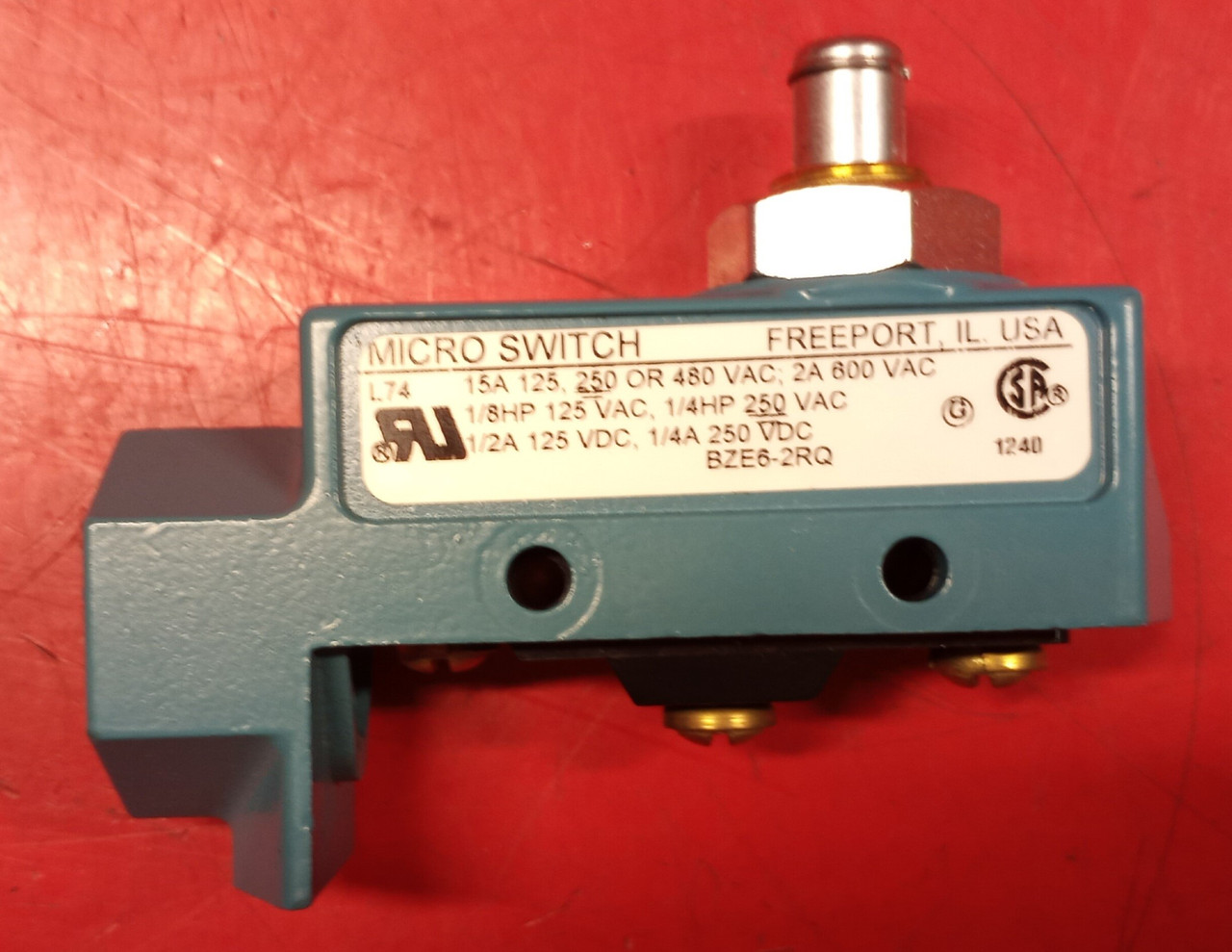

Honeywell BZE6-2RQ Micro Switch
PN: BZE6-2RQ
- RoHS: Yes
- Housing Material: Zinc Die Cast
- NEMA Standard as Enclosure Rating: 1
- Maximum Pre-Travel: 0.38 mm
- Operating Temperature: -32 to 71 °C
- Actuator Style: Top Roller Plunger
- Switch Configuration: N.O./N.C.
- Minimum Over-Travel: 5.56 mm
- Mounting: Screw Mount
- Pole Throw Configuration: SPDT
- Device Type: Linear
- Terminal Type: Conduit
- Maximum DC Voltage Rating: 250 V
- Type: Compact
- Maximum Current Rating: 15@480VAC A
- Operating Force: 3.62 N
- Maximum AC Voltage Rating: 600 V
- Release Force: 1.11 N
- Maximum Power Rating: 1/4 HP
