Product Description

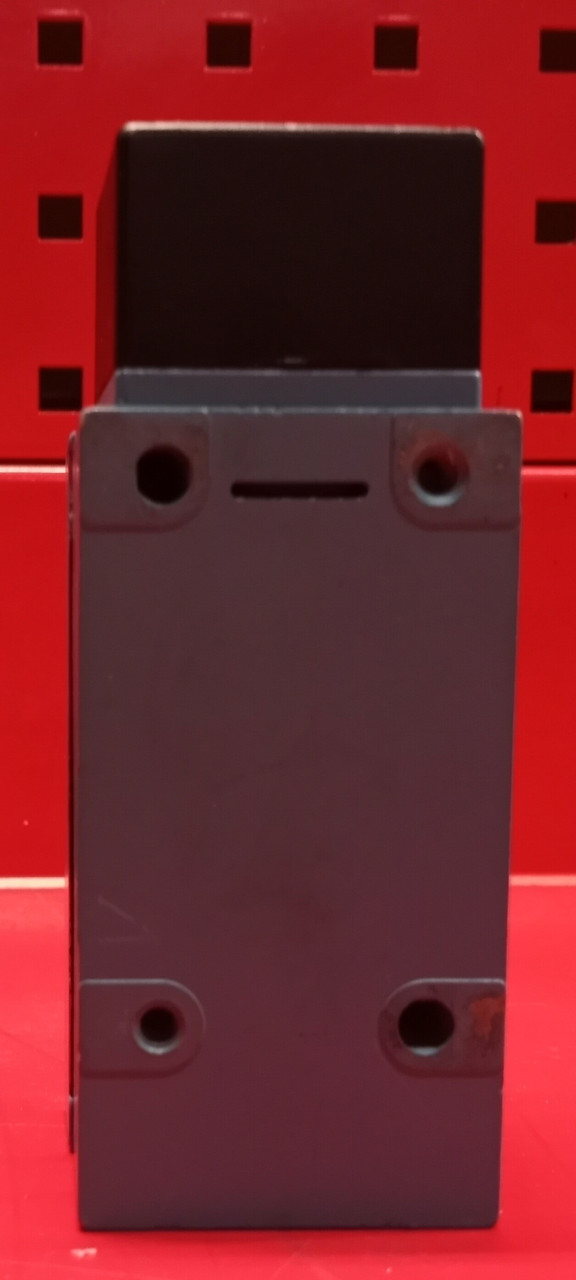

Honeywell LSA6B Micro Switch
PN: LSA6B
- Actuator Type: No Actuator
- Contact Form: DPDT
- Current Rating: 5 A ; 10 A
- Head Type: Side Rotary
- Material: Zinc Die-Cast (Housing)
- Mounting Hole Size: 0.203 In.
- Mounting Type Mount by either of two methods: (a) use two #10 screws from the front, or (b) use two #10-32 UNF screws from the back.
- NEMA Rating NEMA: 1, 3, 4, 4X, 6, 6P, 12, 13
- Operating Force: 4 lbs.-in. (Max.)
- Operating Temperature: -20 to 121 °C
- Standards: UL Listed, CSA Certified, CE Marked, EN Approved, NEMA Approved
- Termination: Screws
- Type: Limit
- Voltage Rating: 250 VDC ; 600 VAC
