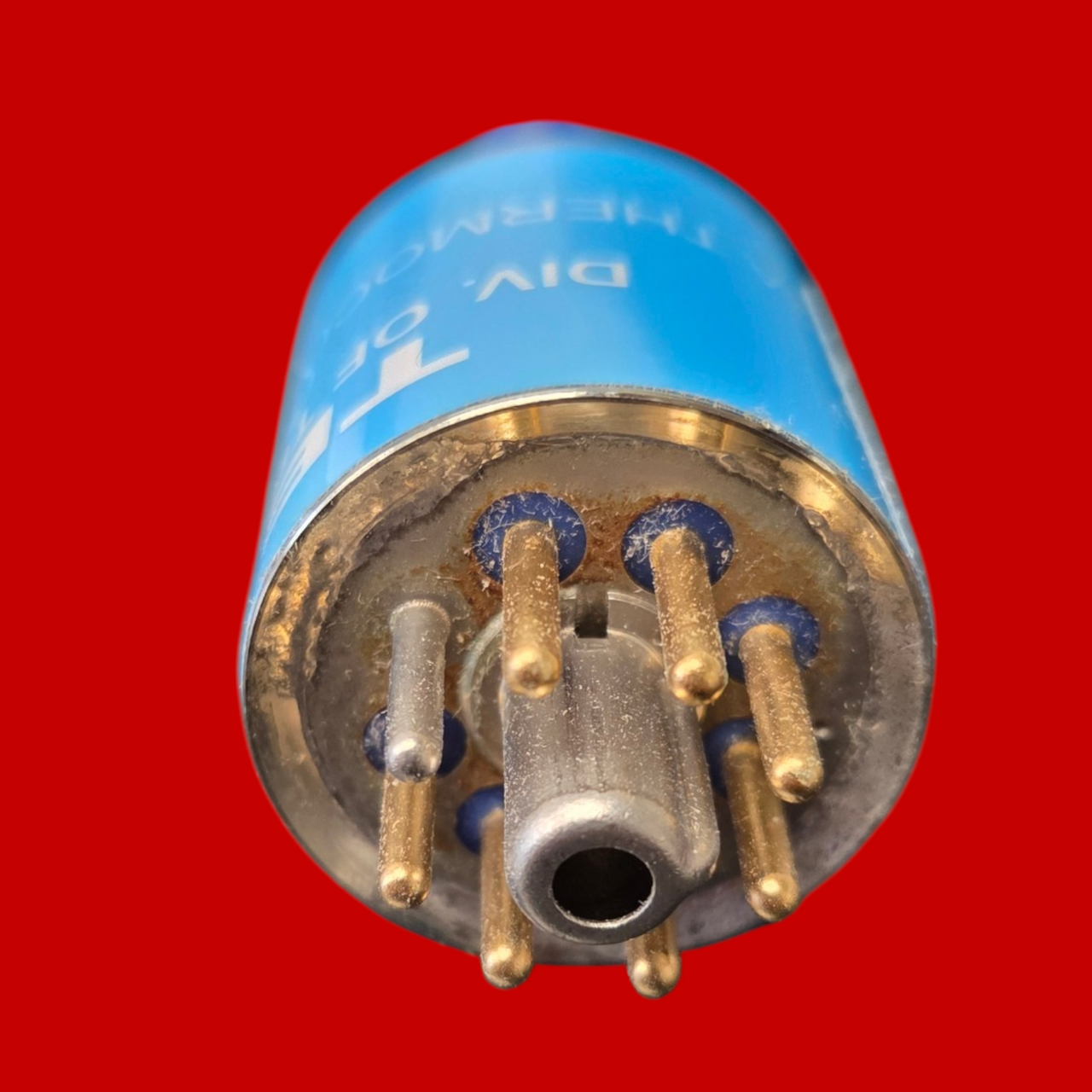

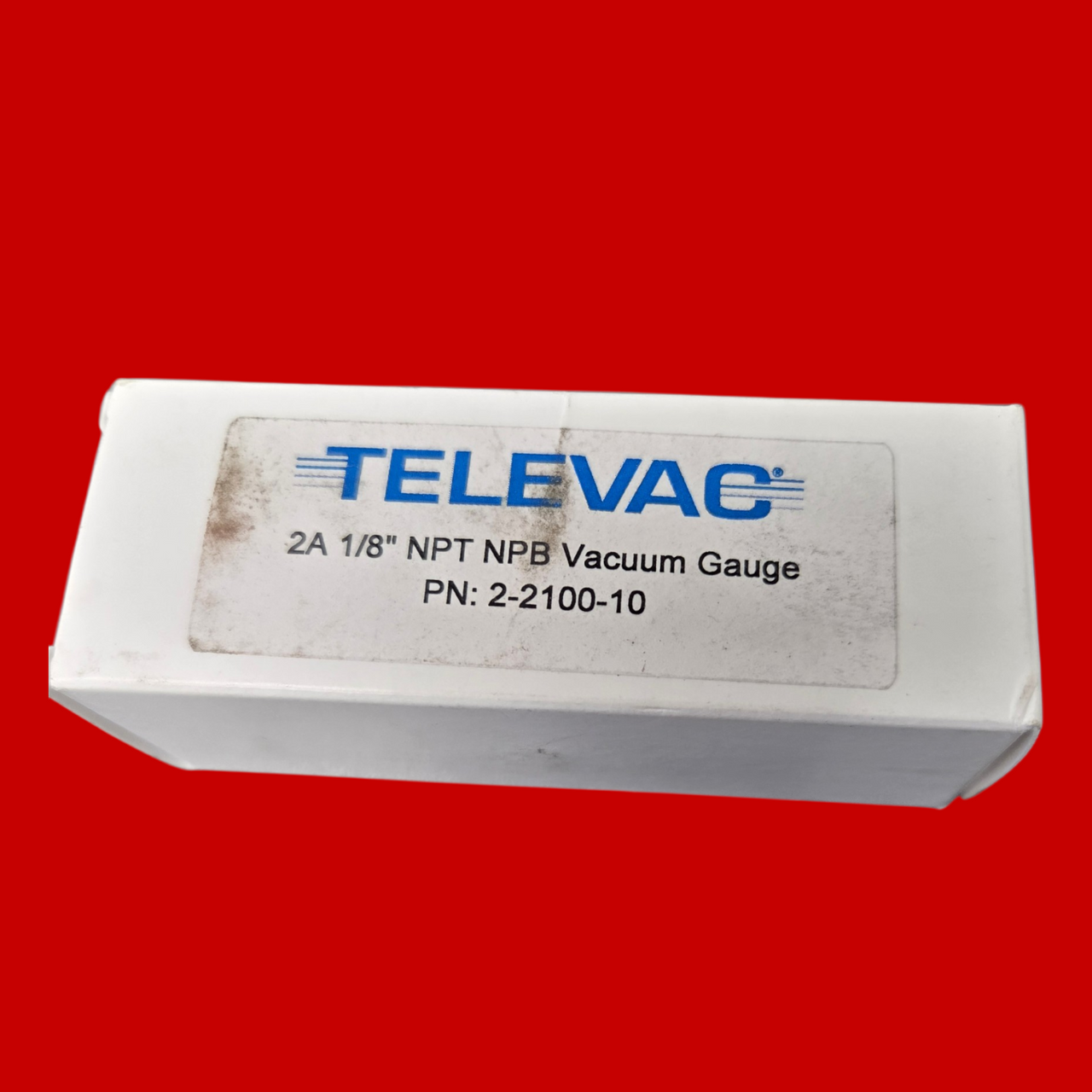

Fredericks 2-2100-10 Televac Thermocouple Passive Vacuum Gauge, 2A
PN: 2-2100-10
The Televac 2-2100-10 is a 2A Series thermocouple vacuum gauge tube designed for measuring absolute pressure in vacuum systems, typically ranging from 1 micron (10⁻³ Torr) up to 20,000 microns (20 Torr). It features a 1/8" male NPT port and is constructed from nickel-plated brass.
- Measurement Range: 1x10⁻³ Torr (1 micron) to 20 Torr (20,000 microns).
- Connection: 1/8" Male NPT threaded port.
- Material: Nickel-plated brass envelope with a volume of approximately 20cc.
- Operating Temperature: 0 °C to 50 °C with a maximum bakeout temperature of 120 °C.
- Accuracy: Ranges from ±1 mTorr (at 1–10 mTorr) to ±20% of reading (at 100 mTorr–1 Torr).
- Compatible Controllers: Works with Televac controllers including the MX200, Compact 2A, MV2A, and VacuGuard.
