Product Description

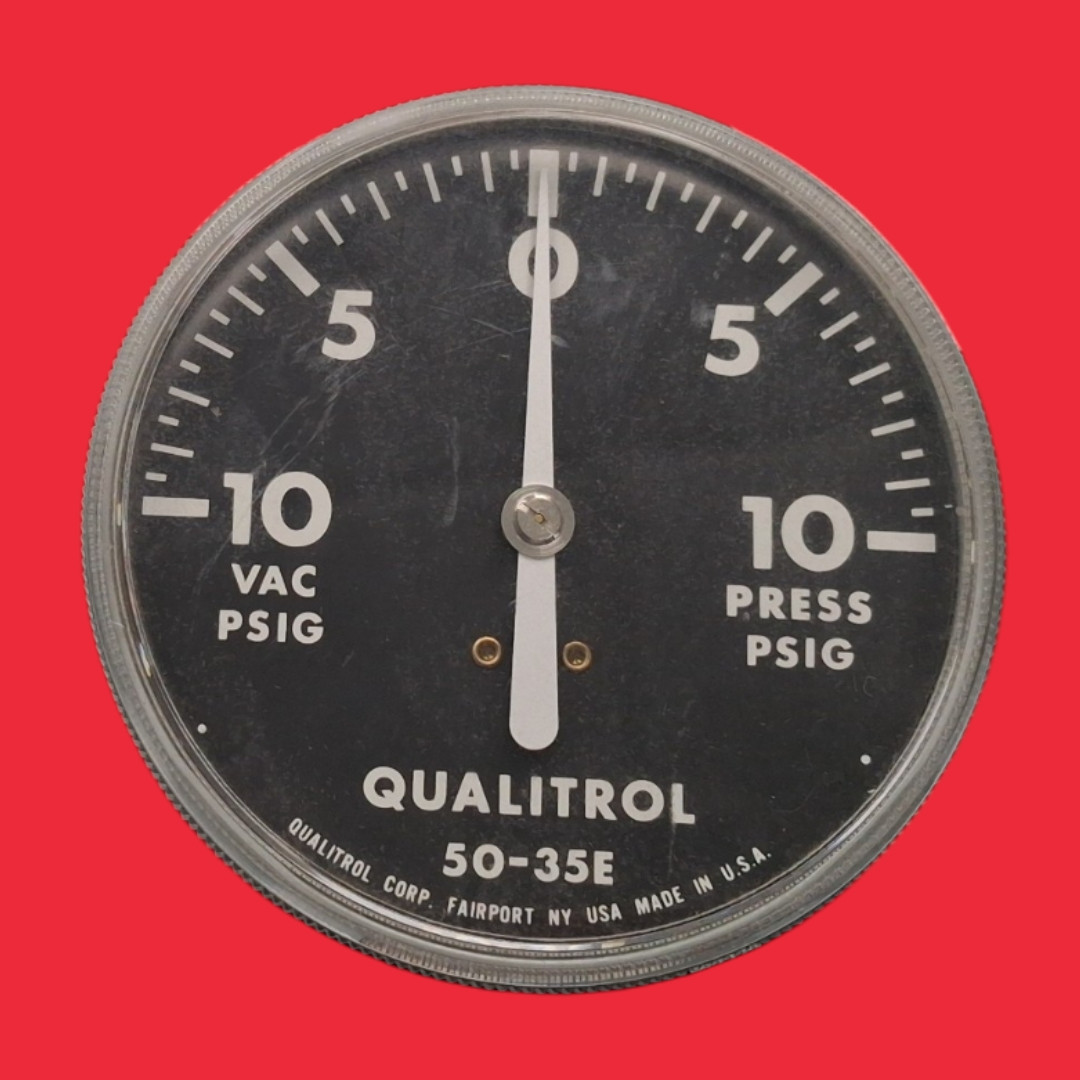

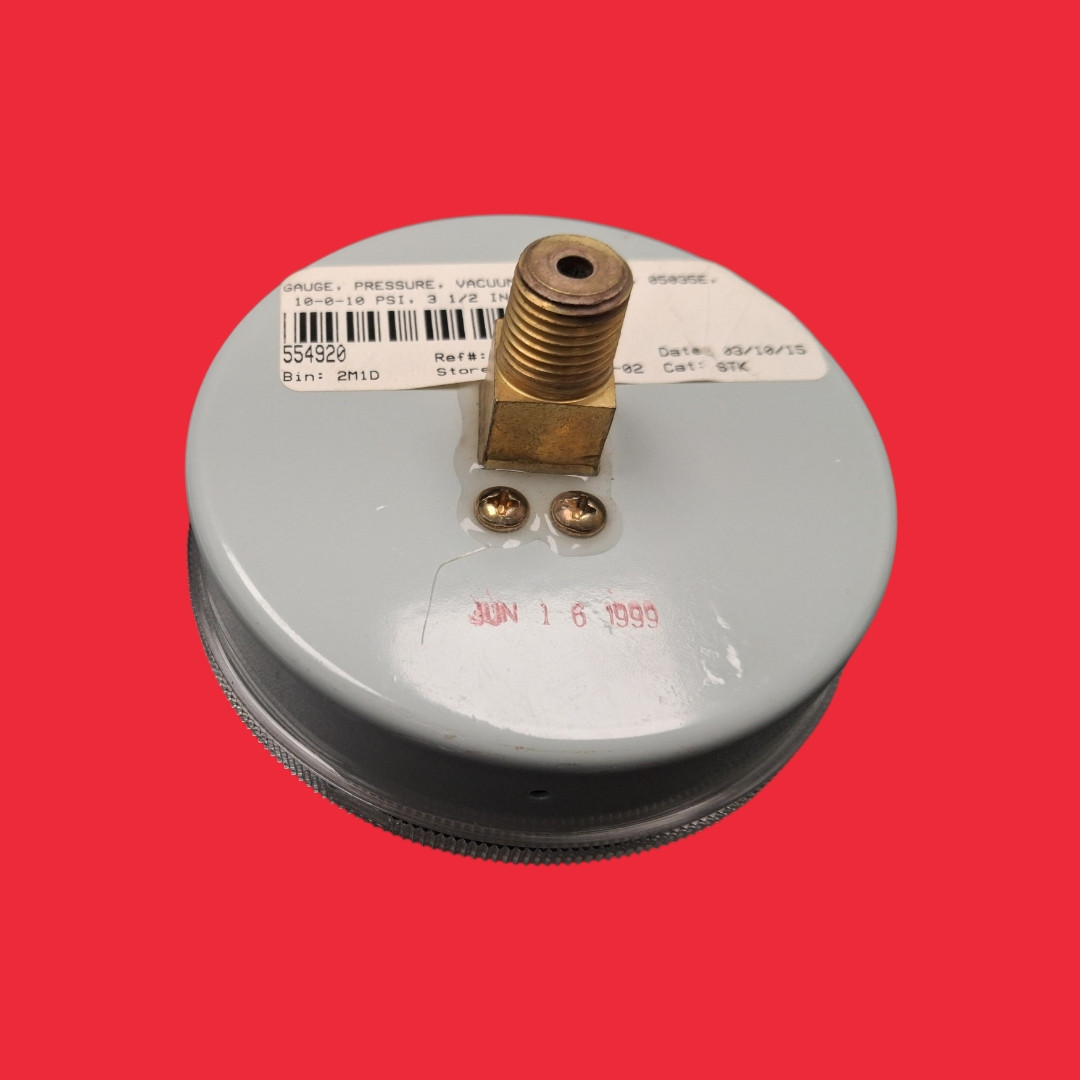

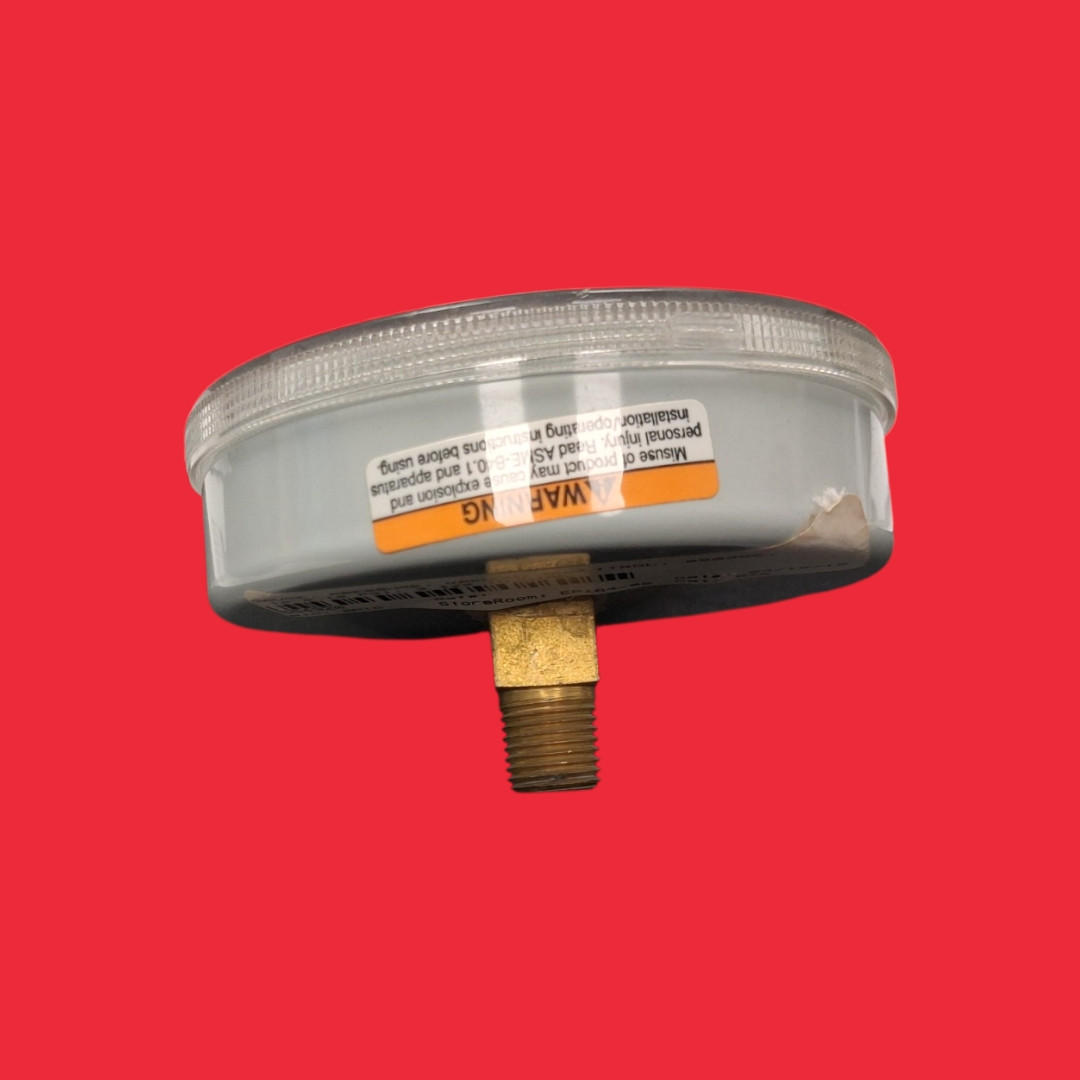

Qualitrol 50-35E Compound Pressure and Vacuum Gauge -10 to +10 PSIG, 3-1/2" Dial
Part#: 50-35E
- Dial Size: 3-1/2"
- Mounting: ¼-18 NPT thread mount (centered on back)
- Dial Range: -10 to +10 psi
- Accuracy: ±3% of full scale accuracy
- Zero Band: ±2% of dial range
- Mounting Connection: Brass
- Case: Cold rolled steel with ANSI #70 light gray coating
- Fastening Bezel and Lens: One piece molded UV stabilized polycarbonate
- Environmental Ambient Operating Temperature: -58 to 180° F (-50 to 82 C°)
- Vibration Resistance: Not affected when subjected to 60 Hz. or whole multiples thereof
- Dial Graduations: 5 psi
