Product Description

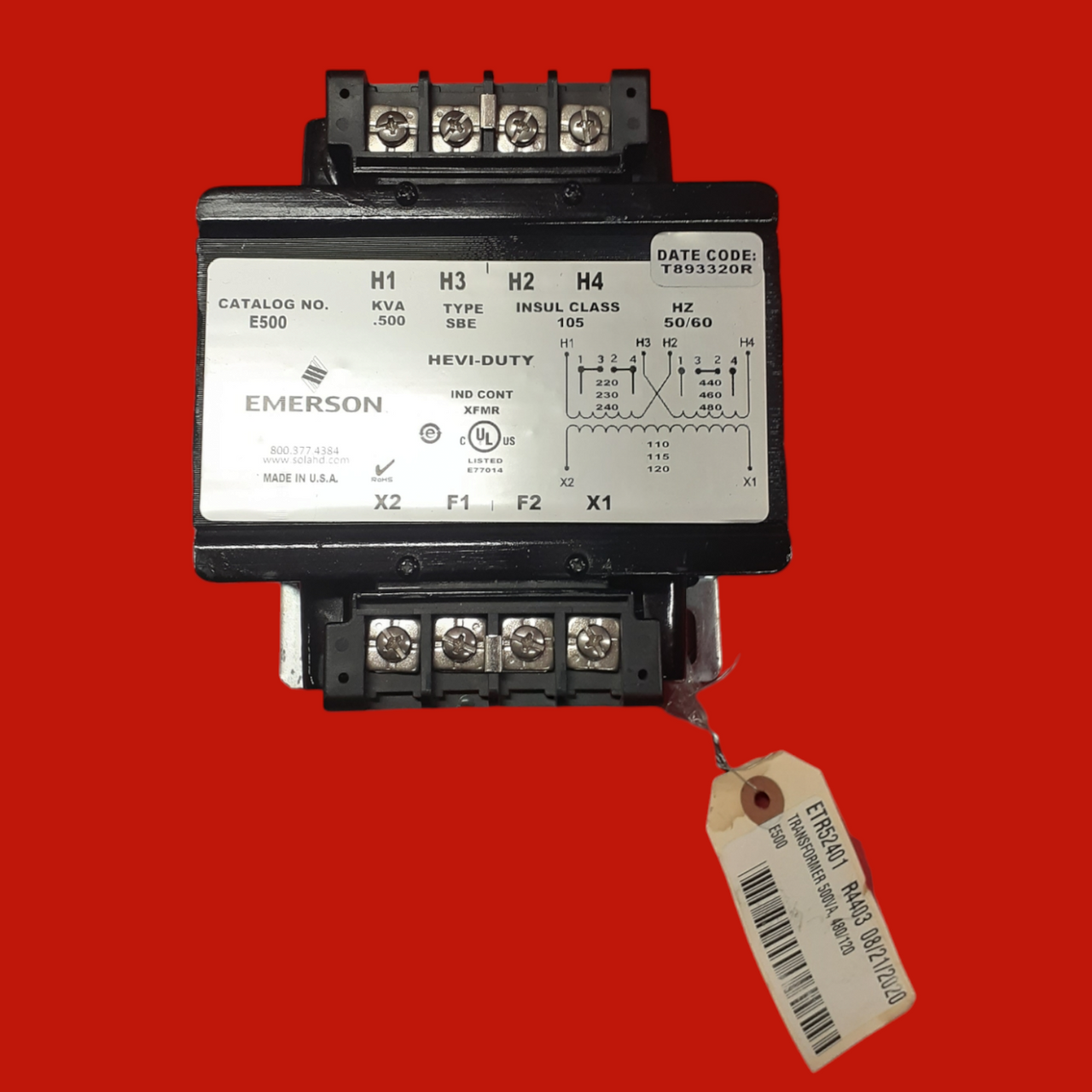

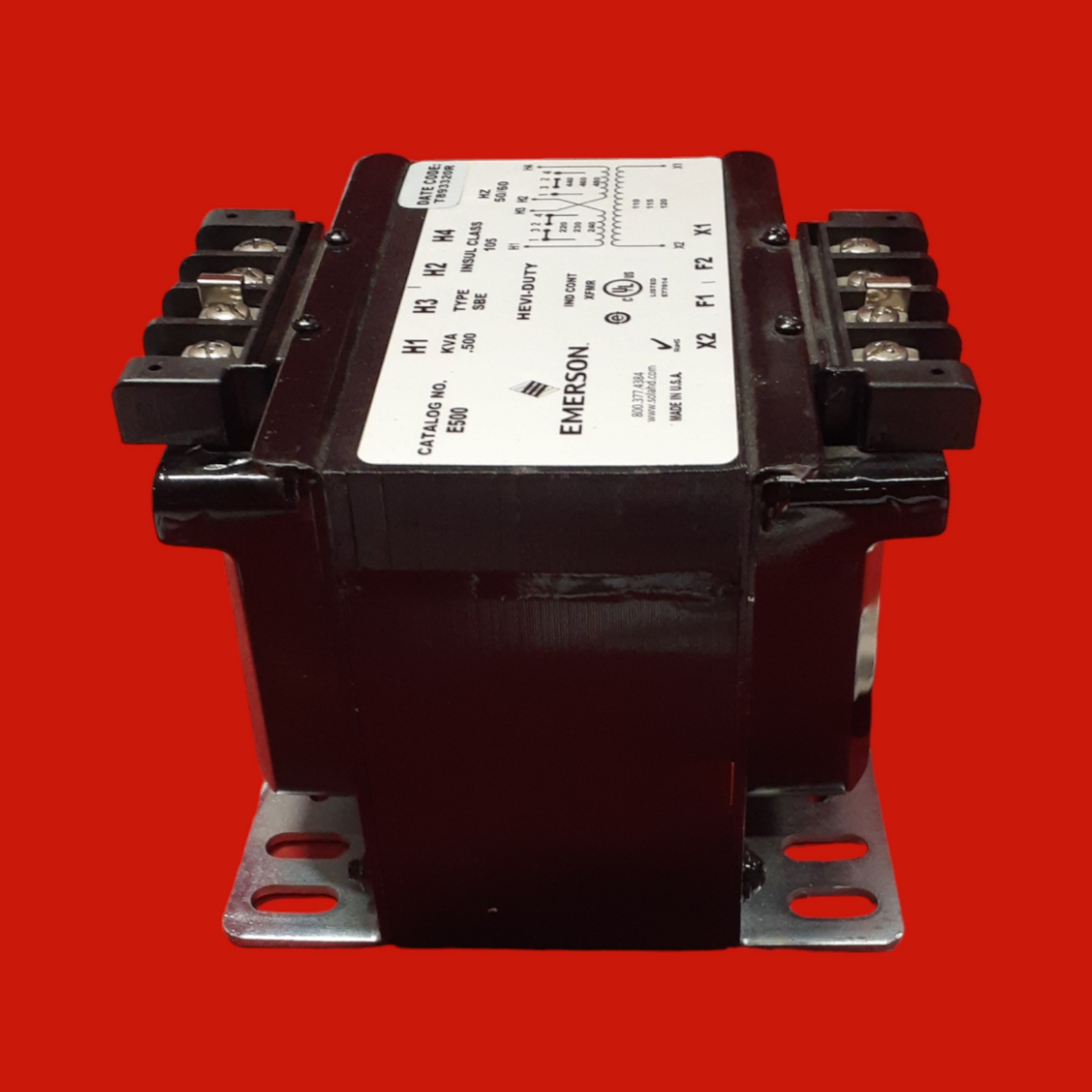

Emerson SolaHD E500 Transformer
PN: E500
The Emerson SolaHD E500 is a 500VA industrial control transformer that is epoxy encapsulated to protect the cores and coils from moisture, dirt, and industrial contaminants. It has a 240/480 VAC primary, 120 VAC secondary, 0.5 kVA power rating, 50/60 Hz, and 1 phase. It also has extra deep, molded terminal barriers that reduce the chance of electrical failure from arcing or frayed lead wires.
- Available Voltage: 240 V ; 480 V ; 230 V ; 460 V ; 220 V ; 440 V
- Configuration: Encapsulated
- Frequency: 50/60 Hz
- Mounting Hole Size: 4.38 in ; in ; in ; 3.75 in ; 4.33 in
- Mounting Type: Panel Mount
- Needed Voltage: 120 VAC ; 115 VAC ; 110 VAC
- Number of Outlets: 1
- Operating Temperature: 55 °C
- Phase: 1 Phase
- Power Rating: 500 VA
- Primary Type: Industrial Transformer
- Primary Voltage: 240 (230, 220)/480 (460, 440) VAC
- Product Header: SBE Encapsulated Series Industrial Control Transformer
- Secondary Voltage: 120 (115, 110) VAC
- Series: SBE Series
- Standards: cULus, NEMA, ANSI
- Termination: Lead Wires
- Type: Control Transformer
