Product Description

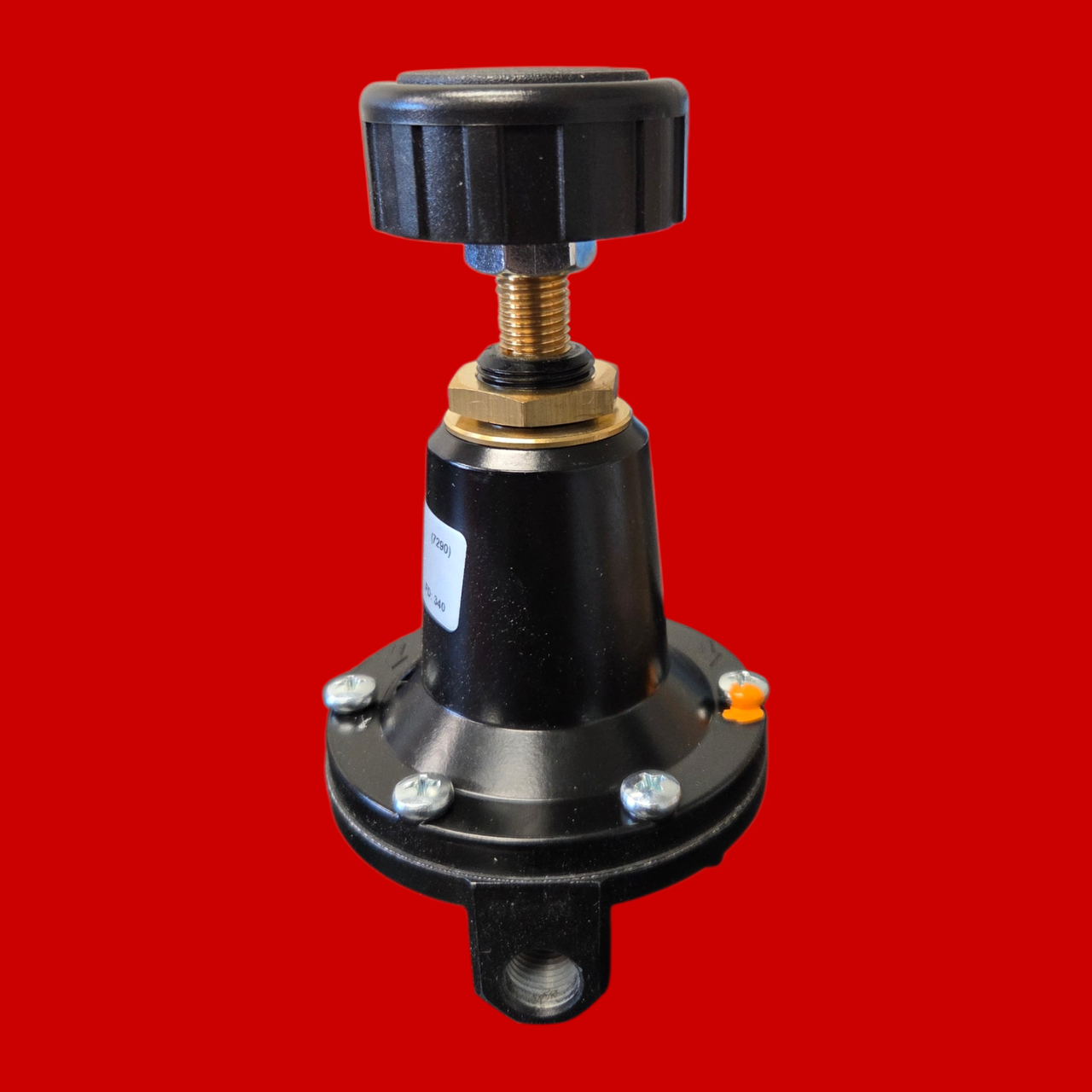

Emerson Aventics R412010259 Precision Pressure Regulator, Series PR1-RGP
PN: R412010259
- Function: Precision pressure regulator
- Parts: Precision pressure regulator
- Mounting orientation: Any
- Regulator type: Diaphragm-type pressure regulator
- Port: G 1/4
- Nominal flow Qn: 480 l/min
- Min. regulation range: 0.1 bar
- Max. regulation range: 1 bar
- Min. working pressure: 0.5 bar
- Max. working pressure: 16 bar
- Min. ambient temperature: -10 °C
- Max. ambient temperature: 60 °C
- Activation: Mechanical
- Version: Regulator without pressure gauge
- Regulator function: with relieving air exhaust
- Pressure supply: single
- Medium: Compressed air, Neutral gases
- Recommended pre-filtering: 5 µm
- Weight: 1.02 kg
- Housing material: Die cast zinc
- Seal material: Acrylonitrile butadiene rubber
