Product Description

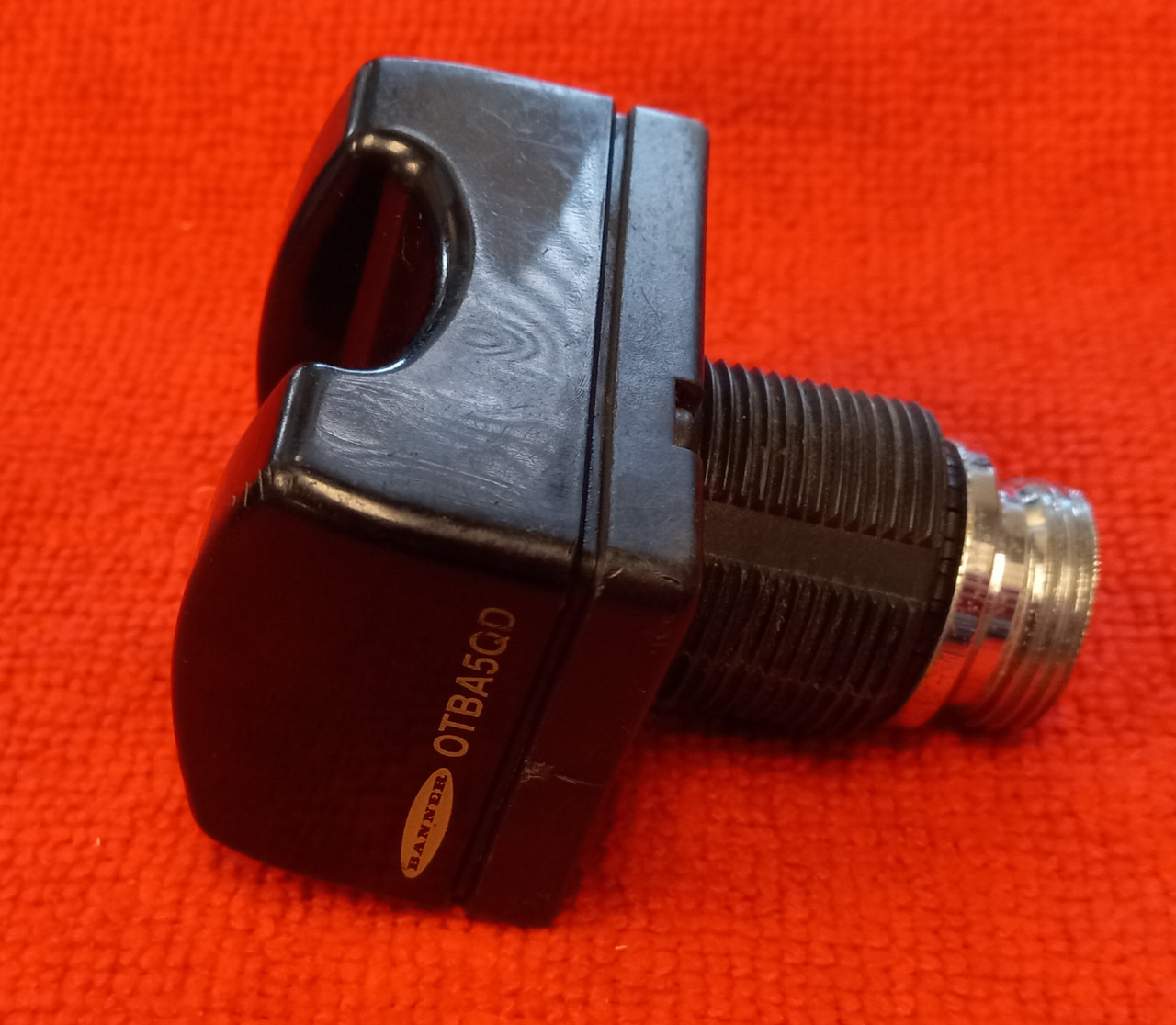

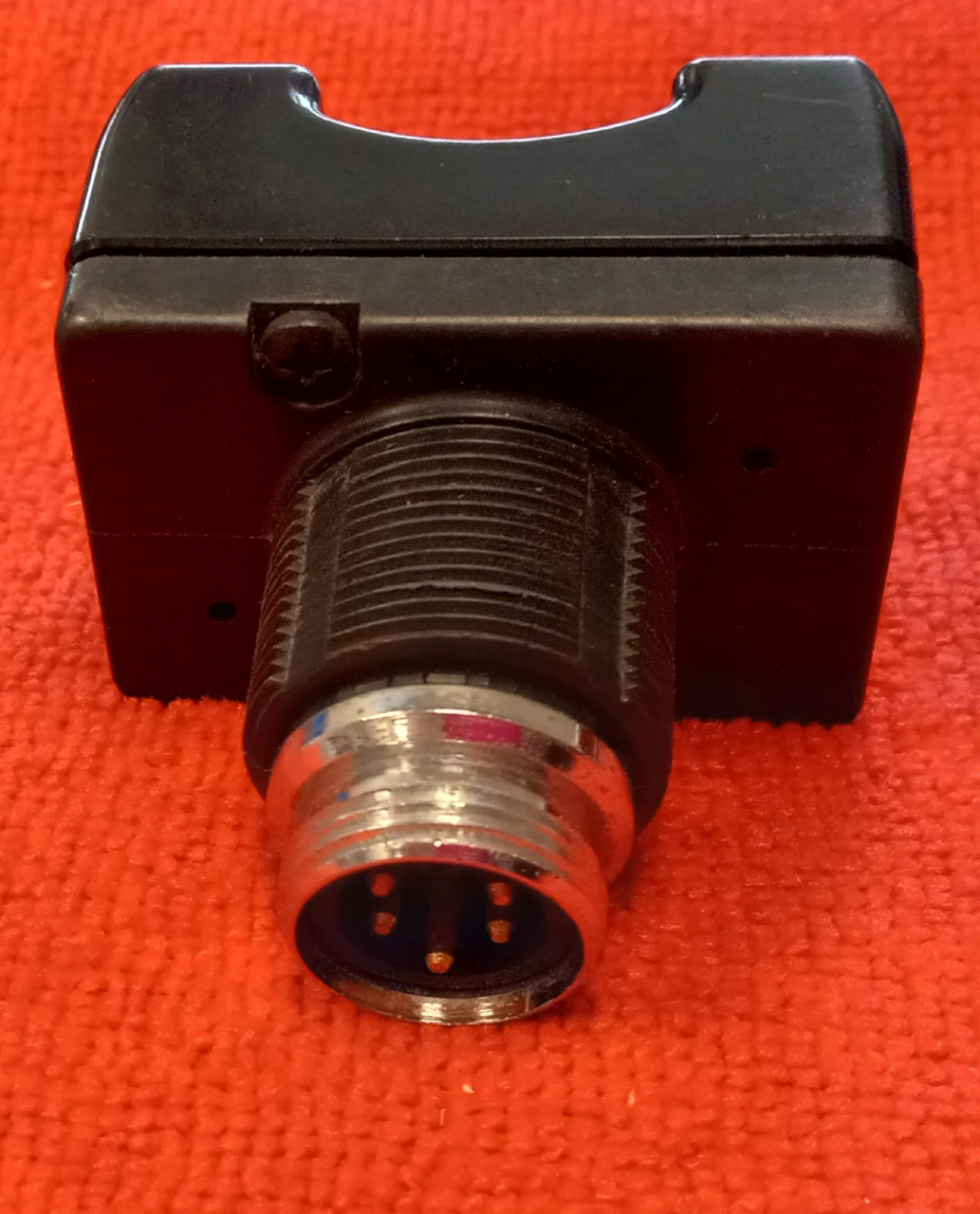

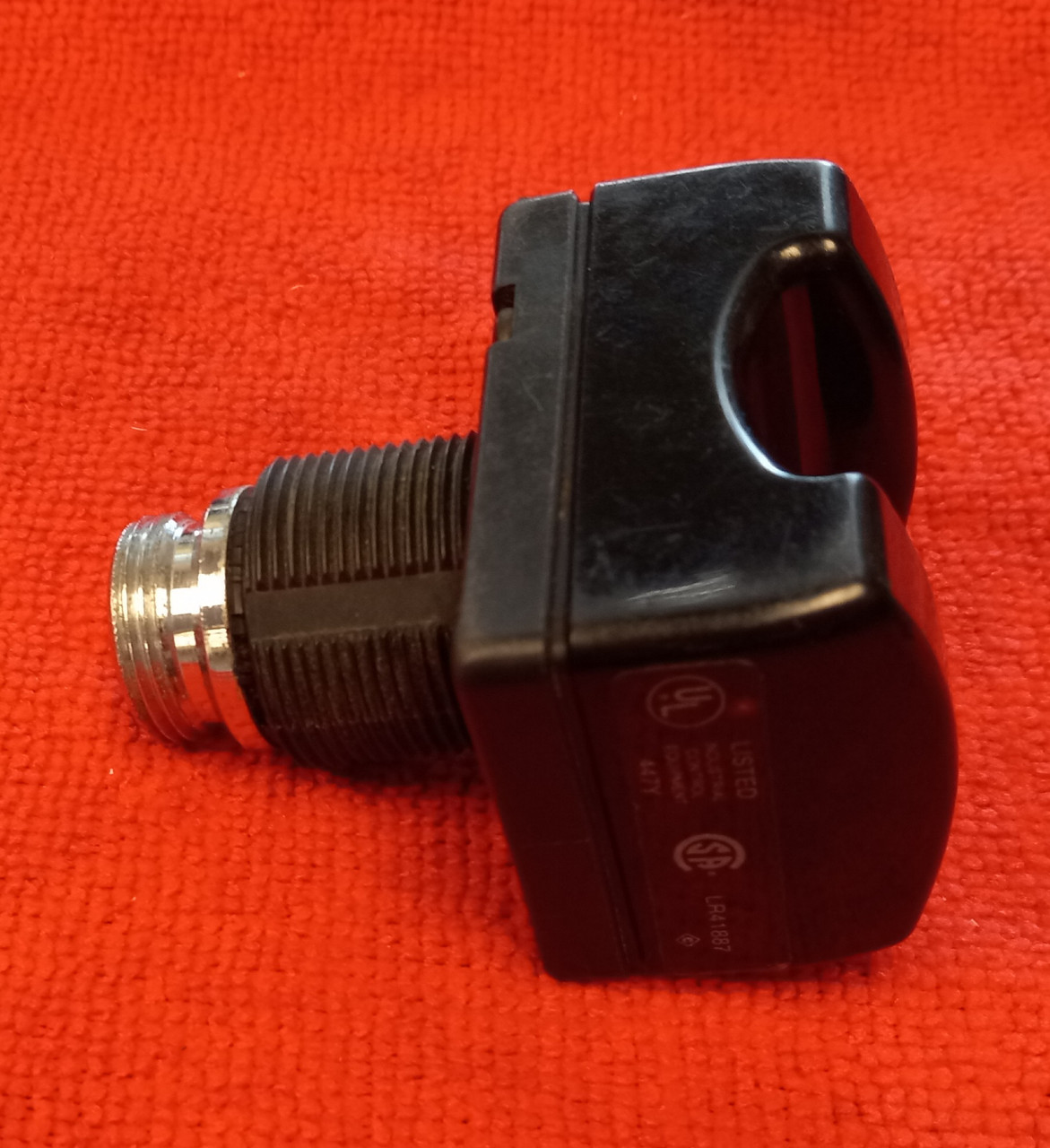

Banner OTBA5QD Optical Touch Button
- Non-Illuminated: Yes
- Power Source: AC
- Sensing Mode (General): Single Point Optical
- Housing Style: Base Mount - Saddle
- Primary Housing Material: Thermoplastic Poly sulfone
- Actuation: Yes
- Activation Function: Optical
- Mounting Thread: M30 x 1.5
- Connection: Integral QD
- Number of Input Pins/Conductors: 5
- Operation Normally: Open/Normally Closed
- Supply Voltage: 105-130 V ac
- Output Type SPDT e/m Relay
- Input Type: AC
- Max Input Response Time: (ms) 100
- Max Output Response Time: (ms) 100
- Physical Dimensions: (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
- Number of Beams: 1
- Environmental Rating: IP66
- NEMA Type and UL Type Rating: NEMA 1, 3, 4, 4X, 12, 13
- Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C
- Max Op. Temperature (°C): 50
- Min Op. Temperature (°C): -20
- Primary Housing Color: Black
- Button Operation: Momentary
