Product Description

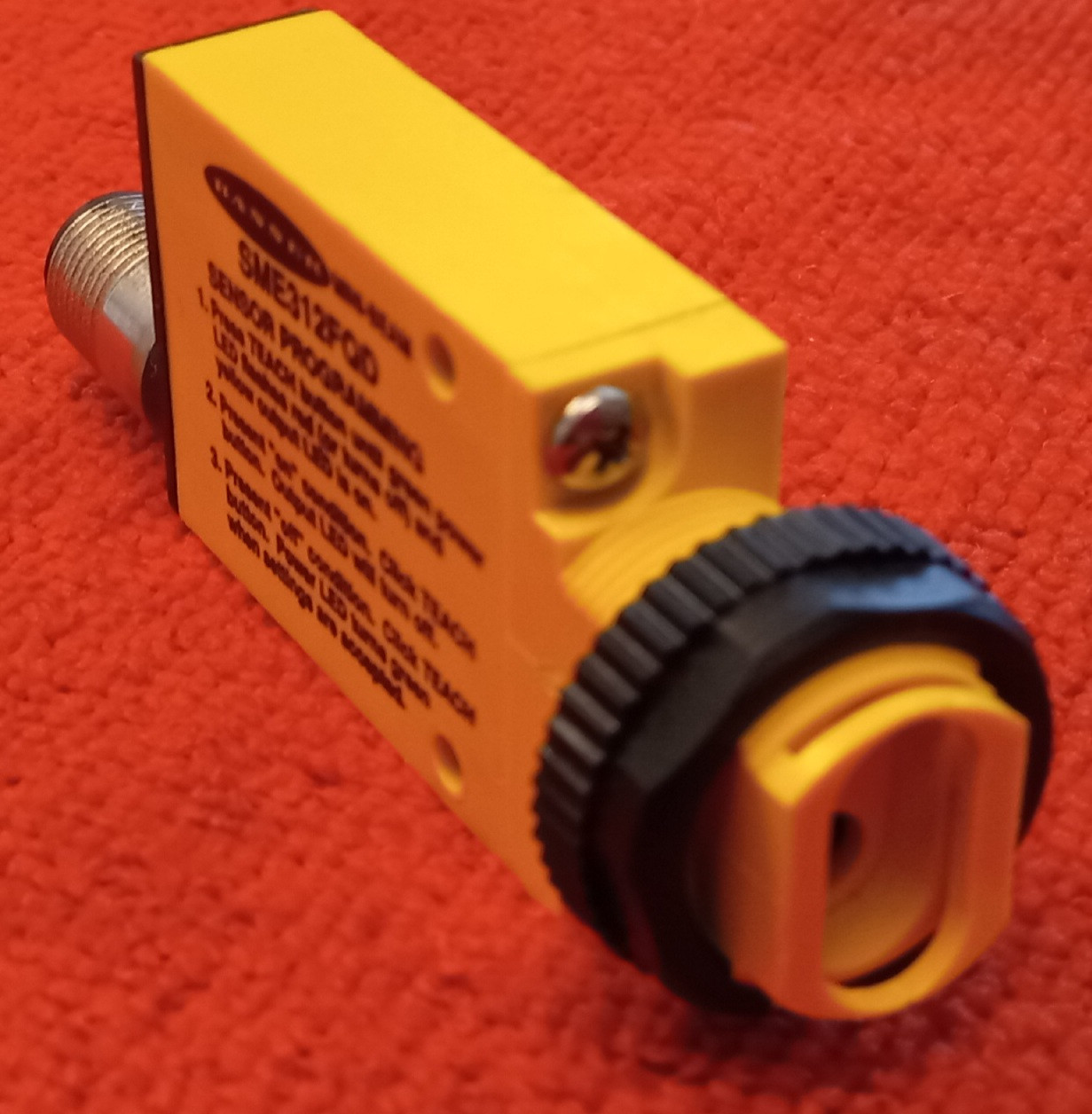

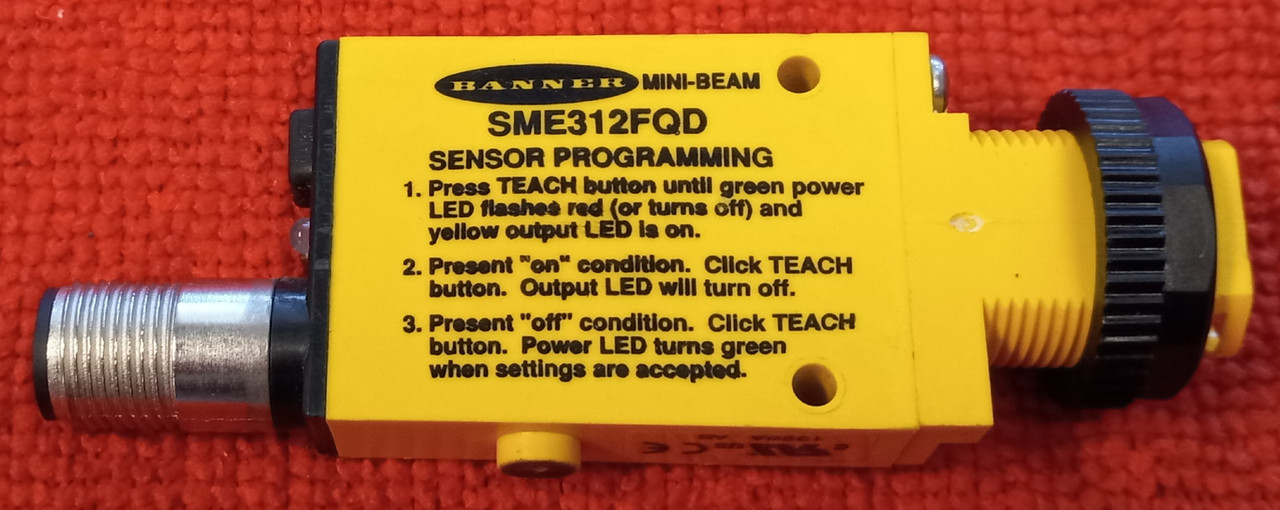

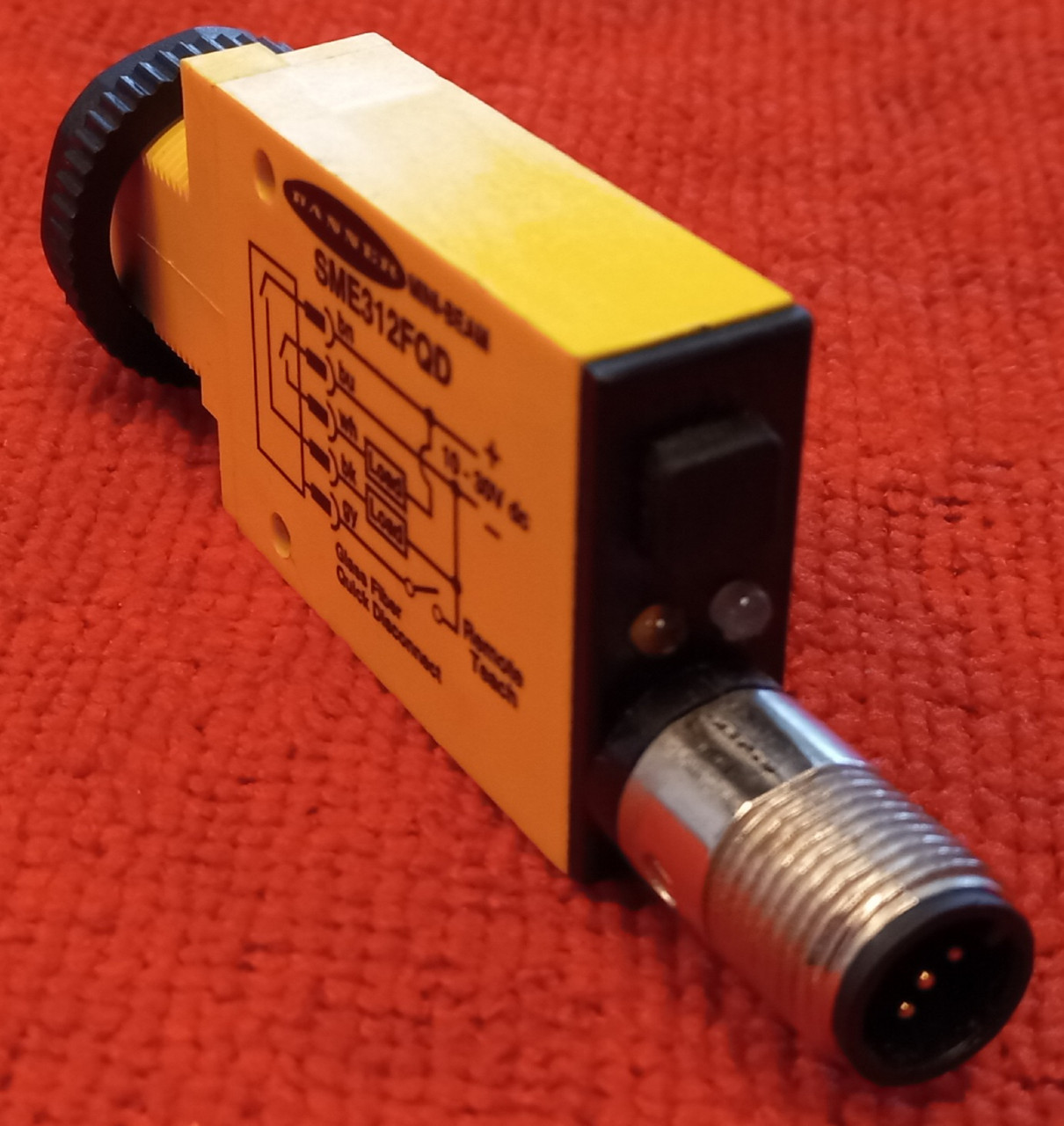

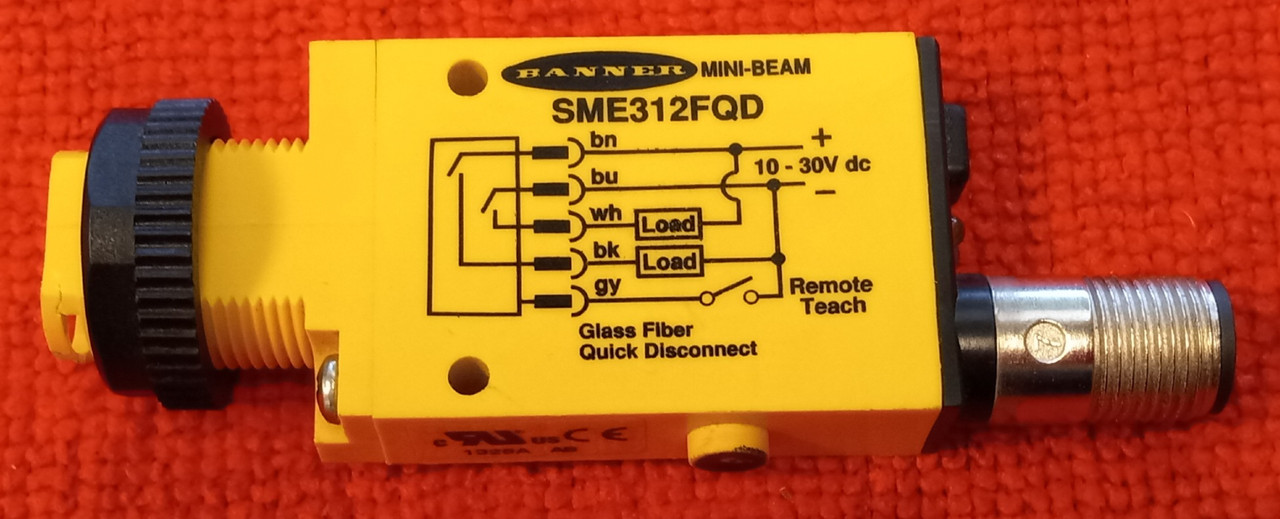

Banner SME312FQD Mini-Beam Fiber Optic Amplifier
- Power: DC
- Housing Style: Rectangular w/M18 Mount
- Primary Housing Material: Thermoplastic
- Input/Output: Discrete
- Color LED - Amplifiers: Infrared
- Fiber Type: Glass Only
- Connection: Integral QD
- Output: Bipolar (NPN & PNP)
- Quick Disconnect Type: M12 (Euro)
- Output Type (Specific): Single Discrete
- Repeatability (µs): 100
- Number of Pins: 5
- IP Rating: IP67
- NEMA Rating NEMA: 1, 2, 3, 3S, 4, 4X, 6, 12, 13
- Max Op. Temperature (°C): 70
- Min Op. Temperature (°C): -20
- Max Op. Relative Humidity (%): 90% @ 50°C
- Remote Teach: Yes
- Intrinsically Safe: No
- Adjustments: Teach Button
- Power Supply/Supply Voltage: 10-30 V dc
- Delay at Power-up (ms): 1000
- Indicator Display Type: Indicator LEDs
- Minimum response time (ms): .5
- Housing Material: Thermoplastic
