Product Description

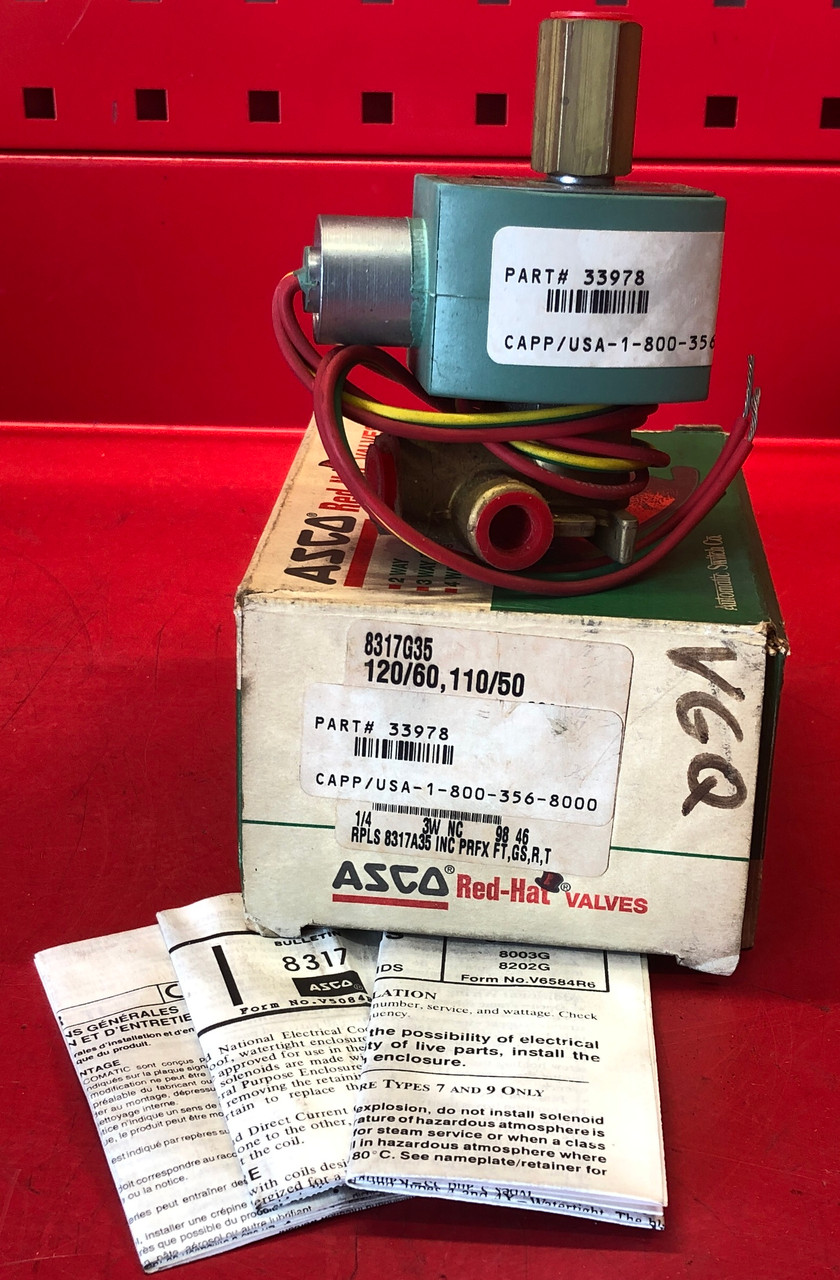

ASCO Solenoid Valve 8317G35
PN: 8317G35
- Valve Ways and Positions: 3-Way/2-Position
- Media: Air, Inert Gases, Light Oil, Water
- Min. Operating Pressure Differential: 5 PSI
- Max. Operating Pressure Differential Light Oil: 95 PSI
- Environmental Rating: Indoor, Outdoor
- Coefficient of Volume: 0.20
- Coil Insulation Class: F
- Orifice Diameter:3/32"
- IP Rating: 66 Hz50/60 Coil Enclosure
- NEMA Type: 4, 4X
- Valve Configuration: Normally Closed
- Pipe Size: 1/4 in.
- Max. Operating Pressure Differential Air/Inert Gas: 150 psi
- Max. Operating Pressure Differential Water: 150 psi
- Voltage: 120VAC
- Body Material: Brass
- Seal Material: NBR
- NEMA Rating1, 2, 3, 3S, 4, 4X
- Max. Fluid Temperature: 180 Degrees F
- Watts: 10.1
- Electrical Connections: 1/2" Conduit w/18" Leads
- Center Line Pipe Center Size: 3-9/16"
