Product Description

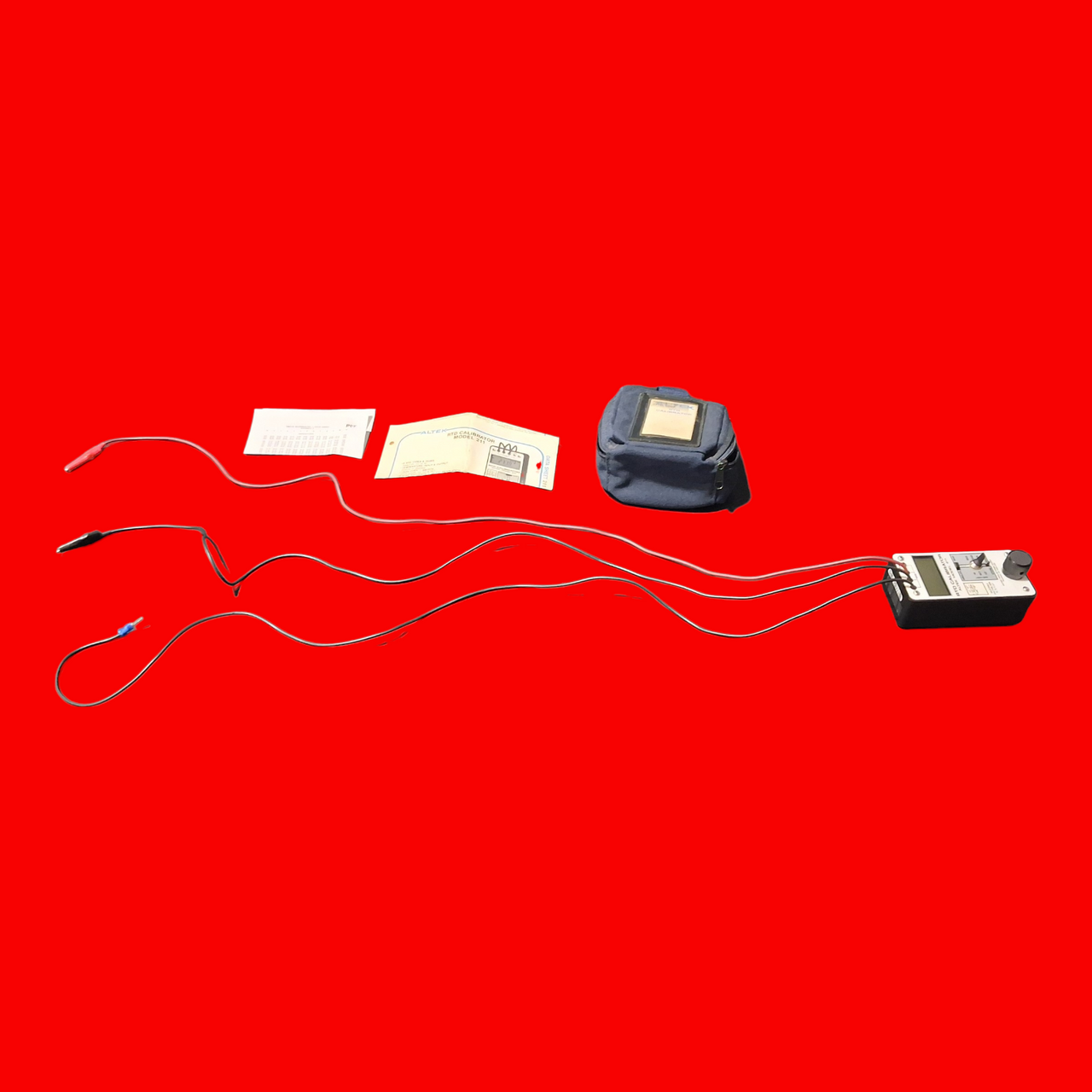

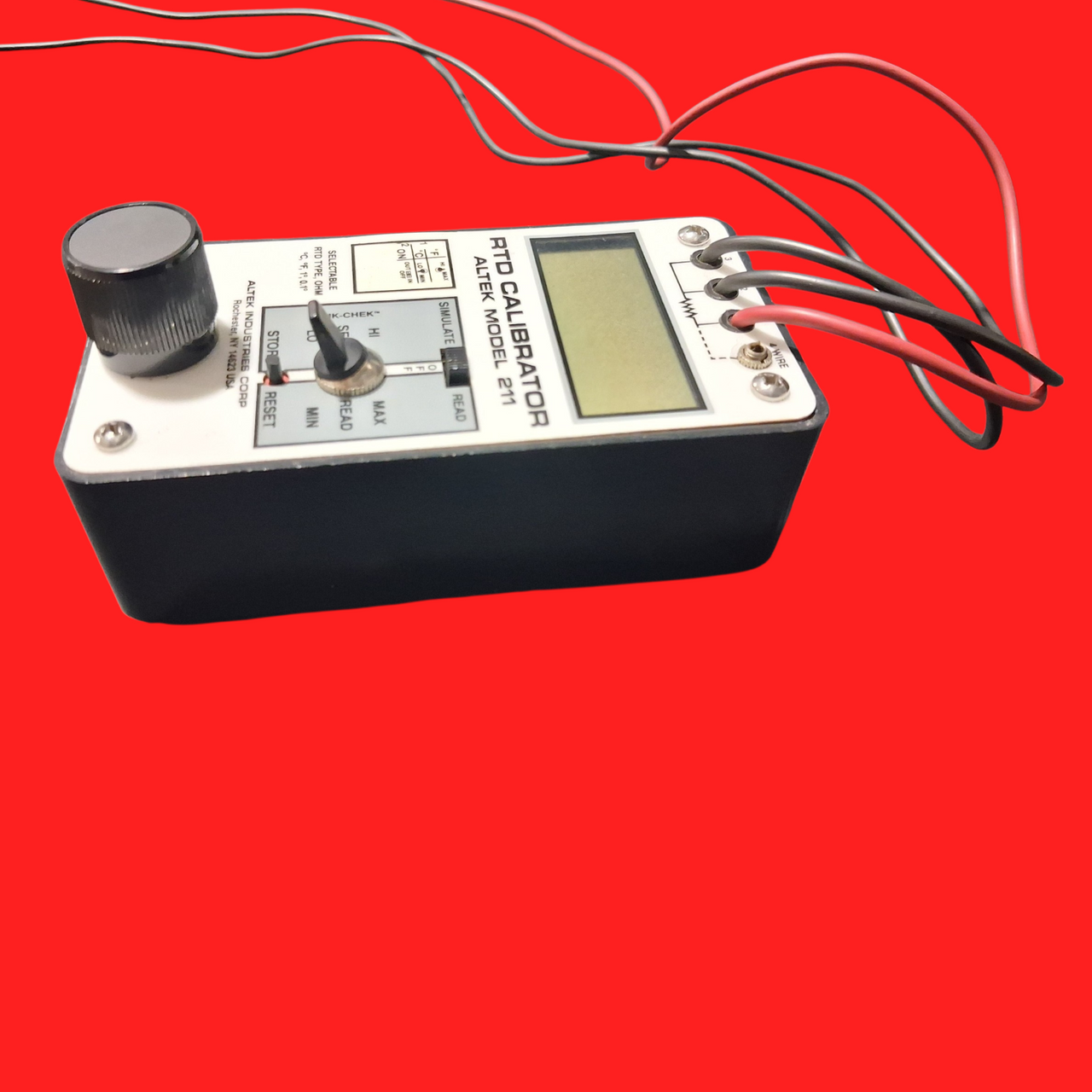

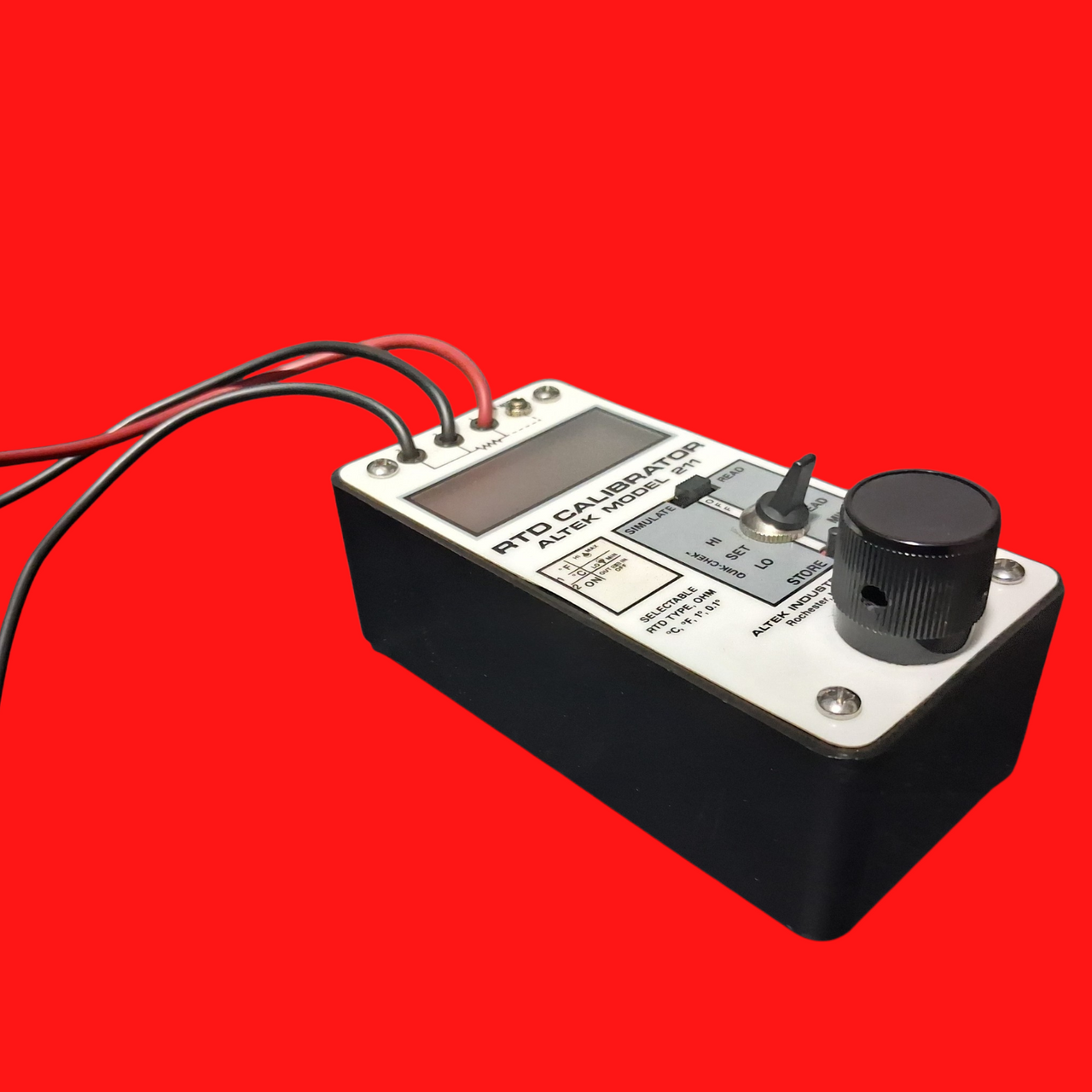

Altek Portable Resistance Temperature Detector (RTD) Calibrator Model 211
Model#: 211
The Altek Model 211 is a portable Resistance Temperature Detector (RTD) calibrator designed to simulate and read various RTD types across industrial temperature ranges.
- Accuracy: 0.25% (0.013% typical)
- Resistance Range: 0.00 to 2010.0 Ohms
- Power Source: 9-Volt Alkaline battery (approx. 50-hour life)
- Operating Temp.: -5°F to +140°F (-20°C to +60°C)
- Dimensions: 2.5 x 2.6 x 5.1 Inches
- Dual Functionality: It functions in "Simulate" mode to act as an RTD sensor for testing equipment, and "Read" mode to measure actual RTD sensors.
- Broad Compatibility: Supports 8 different RTD types (Platinum, Copper, and Nickel) as well as direct Ohms ranges from 0.00 to 2010.0.
- Quik-Chek™ Switch: Allows users to instantly store and recall three output temperatures (HI, SET, and LO) for rapid calibration.
- Wiring Flexibility: Accurately handles 2, 3, and 4-wire hookups, with built-in automatic compensation for 3-wire leads.
