Product Description

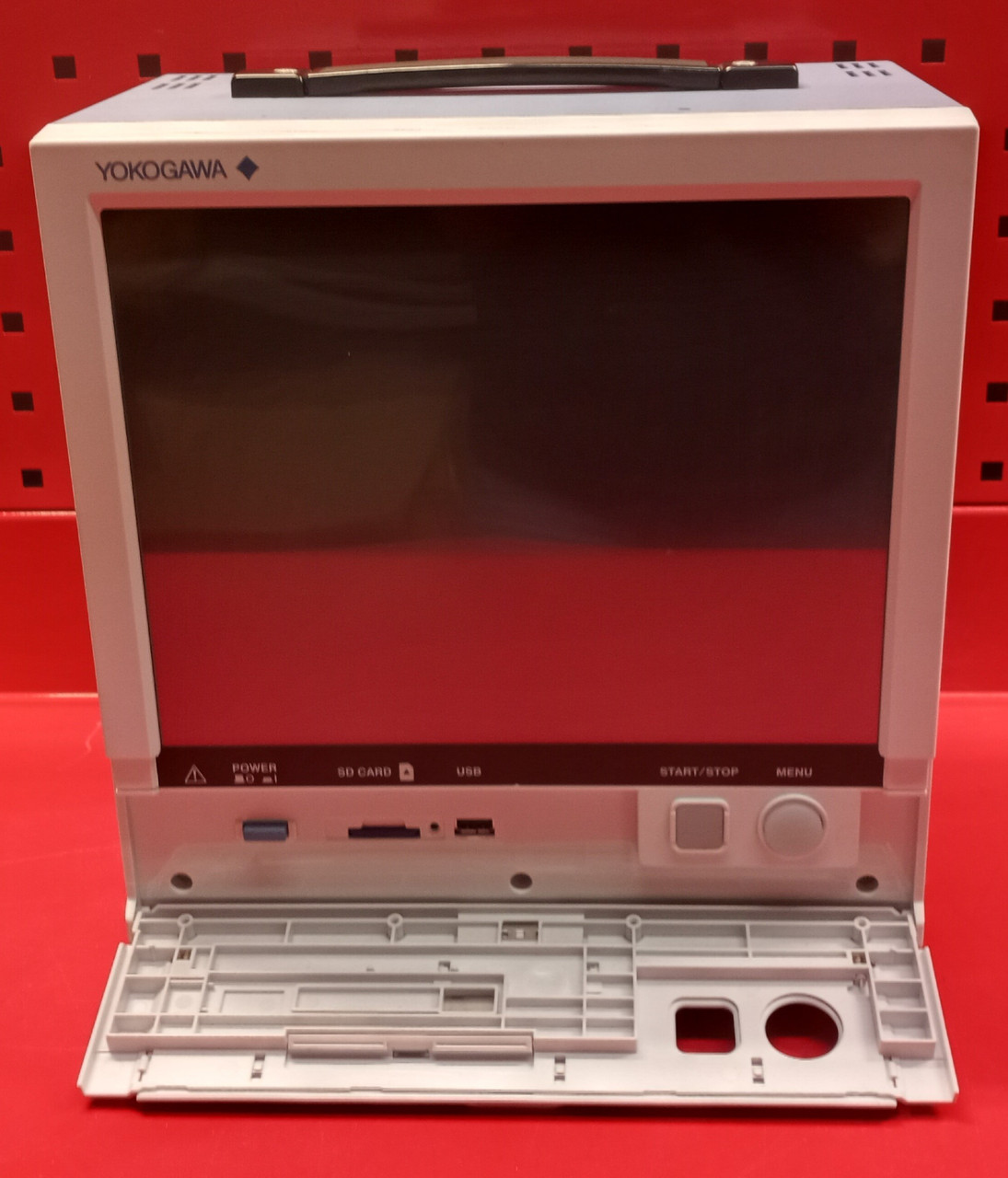

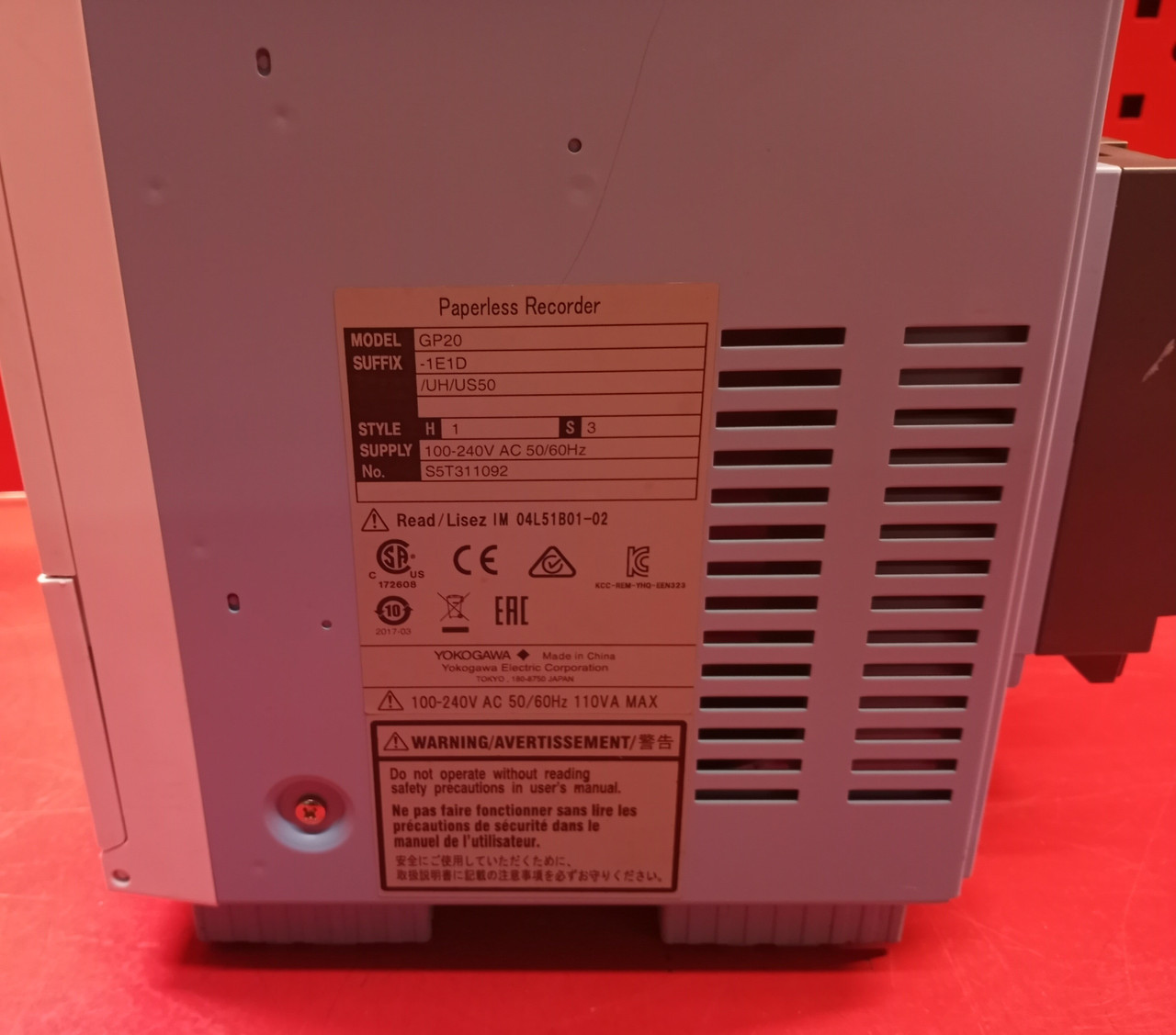

Yokogawa GP20 Portable Paperless Recorder
Part #: GP20-1E1D/UH/US50
- Touchscreen display with pinch-in / pinch-out capabilities
- Accessibility of historical trends during real-time analysis
- Stylus capability for hand-written messages
- Custom display for trend, numeric, and bar graphs
- Multi-panel display (9 layouts and up to 20 configurations)
- External data viewing through Ethernet or external memory (SD/USB)
- Modular inputs and outputs for expandability
- Measurement capability of up to 450 actual input channels in a multi-unit configuration, or 1000 if MATH and communication channels are added.
- Internal memory of up to 500
- Open front panel for easy insertion or removal of modules
- 4 alarms per measurement channel: high limit, low limit, difference high limit, difference low limit, rate of change increase, rate of change decrease, delay high, delay low
- Power Supply: 100-240VAC; 50/60Hz.
The GP20 portable data acquisition system is a touchscreen interface accompanied by a modular housing that enables the user to control and view measurements while away from a computer. Up to 450 channels of measurement can be performed, or if MATH and communication channels are included up to 1000.
|
Model |
GP20 |
| |
|---|---|---|---|
| Construction | Portable | ||
| Display | 12.1" TFT color LCD (800 × 600 dots) | ||
| Touchscreen | 4 wire resistive touchscreen, 2-point touch detection | ||
| Max. no. of connectable modules | 10 (When mounted on expansion module: 9) | ||
| * The maximum number of connectable modules is limited by the maximum number of I/O channels, and differs depending on the types and combinations of modules. | |||
| Analog input channels | Standard: 100 | ||
| No. of mathematical channels | GP20-1: 100 | ||
| No. of communication channels | Standard: 300, Large memory: 500 | ||
| Internal memory (flash memory) | Standard: 500 MB | ||
| External storage media | SD memory card (up to 32 GB) (format: FAT32 or FAT16), 1 GB included USB interface (/UH option): USB 2.0 compliant (external storage media: USB flash memory) (Keyboard/mouse: HID Class Ver. 1.1 compliant) |
||
| Communication functions | Ethernet (10BASE-T/100BASE-TX), IEEE802.3 compliant (Ethernet frame type: DIX), Connecting configuration: Cascade max. 4 level (10BASE-T), max. 2 level (100BASE-TX), segment length: Max. 100 m, E-mail inform function (E-mail client), FTP client function, FTP server function, Web server function, SNTP client function, SNTP server function, DHCP client function Modbus/TCP (client*/server functions) */MC option is required. |
||
| Options | Serial communications (/C2: RS-232, /C3: RS-422 or RS-485), Modbus/RTU (master/slave functions), EtherNet/IP communication (/E1), WT communication (/E2), OPC-UA server (/E3), SLMP communication (Mitsubishi PLC) (/E4) | ||
| Other functions | Security functions: Key lock function, login function Clock functions: With calendar function, accuracy: ±5ppm (0 to 50°C) LCD saver function |
||
| Rated supply voltage | 100 to 240 VAC (allowable power supply voltage range: 90 to 132 VAC, 180 to 264 VAC) 12 VDC (allowable power supply voltage range: 10 to 20 VDC, only for a GP10 of power supply voltage code "2") |
||
| Rated supply frequency | 50/60 Hz | ||
| Power consumption | Max. 90 VA (100 VAC) | ||
| Insulation resistance | Between the Ethernet, RS-422/485, and each insulation terminal and earth: 20 MΩ or greater (at 500 VDC) | ||
| Withstand voltage | Between the power terminal and earth: 3000 V AC (50/60 Hz) for one minute | ||
| External dimensions （W×H×D） | Main Unit | 288 × 318 × 197 (mm) | |
| Including modules | 288 × 318 × 248 (mm) | ||
| Weight (main unit only) | Approx. 12 lbs | ||
