Product Description

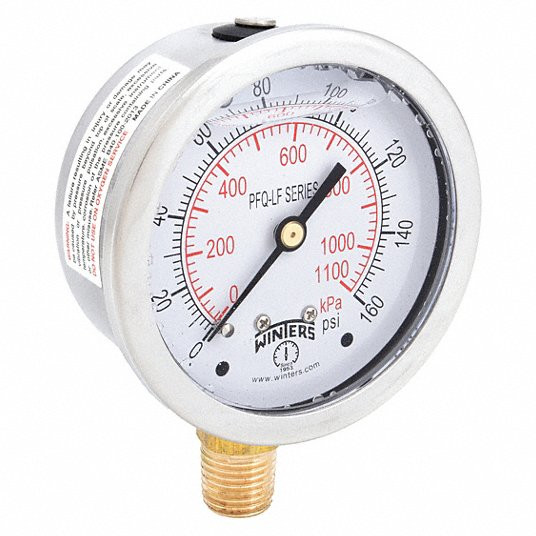

Winter Pressure Gauge, 0 to 160 psi Range, 1/4 in NPT, ±1.50% Gauge Accuracy
- Item Pressure Gauge
- Gauge Application Lead Free
- Gauge Nominal Dial Size 2 1/2 in
- Basic Gauge Case Material Stainless Steel
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 160
- Gauge Accuracy+/-1.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Case Material 304 Stainless Steel
- Gauge Case Color Stainless Steel
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Lead Free Phosphor Bronze
- Gauge Lens Material Polycarbonate
- Gauge Filled with Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range-4 Degrees to 150 Degrees F
- Gauge Special Options Restricted Orifice
- Characteristics Pulsation Resistant, Restricted Orifice, Crimp-On Bezel, CRN Registered
- Calibration Certificate Included No
