Product Description

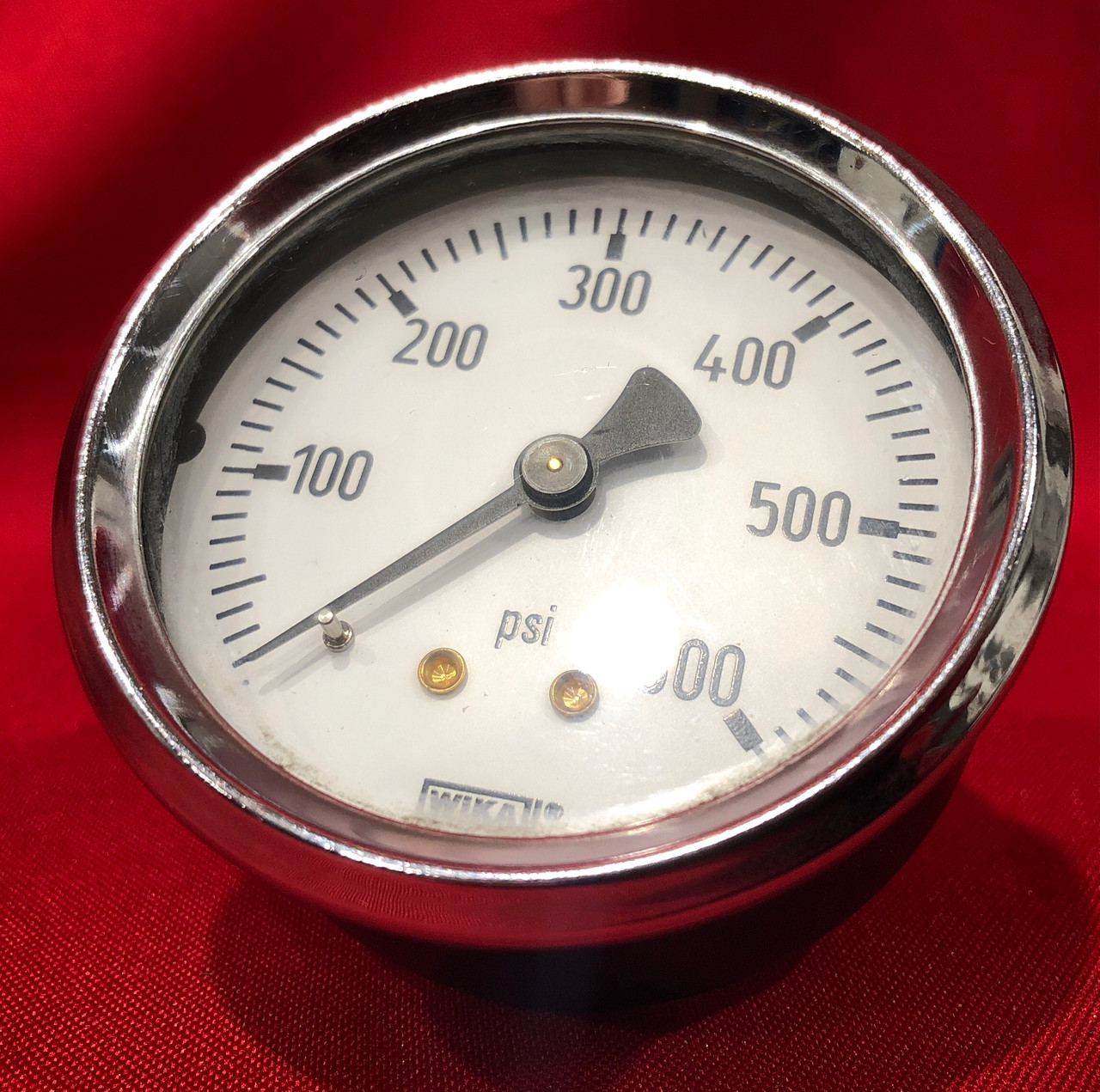

Wika 2.5" Pressure Gauge
Part #: 9240233
Details
Type 23X.30 - Solid-front Safety Case Pressure Gauges
Model: 232.30
Specifications according to data sheet: PM 02.04
Measuring System: Stainless Steel
Case filling: without
Nominal size: 2.5"
Measuring range: gauge pressure range
Scale range: 0/600 psi
Process Connection: 1/4 NPT
Connector location: lower mount
Window: Polycarbonate
Pointer: adjustable pointer
Accuracy Class: +/- 2/1/2% (ASME B40.100 Grade A)
Case surface: bare case / polished ring
Material pressure element: Measuring System 316 SS
Ingress Protection: IP 65
Permissible medium temperature: + 200 °C
Permissible ambient temperature: -40 ... +60 °C
Pressure Gauge Standard: US-Standard
Manufacturer logo: *WIKA®*
stop pin on dial: at zero
with Serial number
Permissible ambient temperature: -40 ... +60 °C
