Product Description

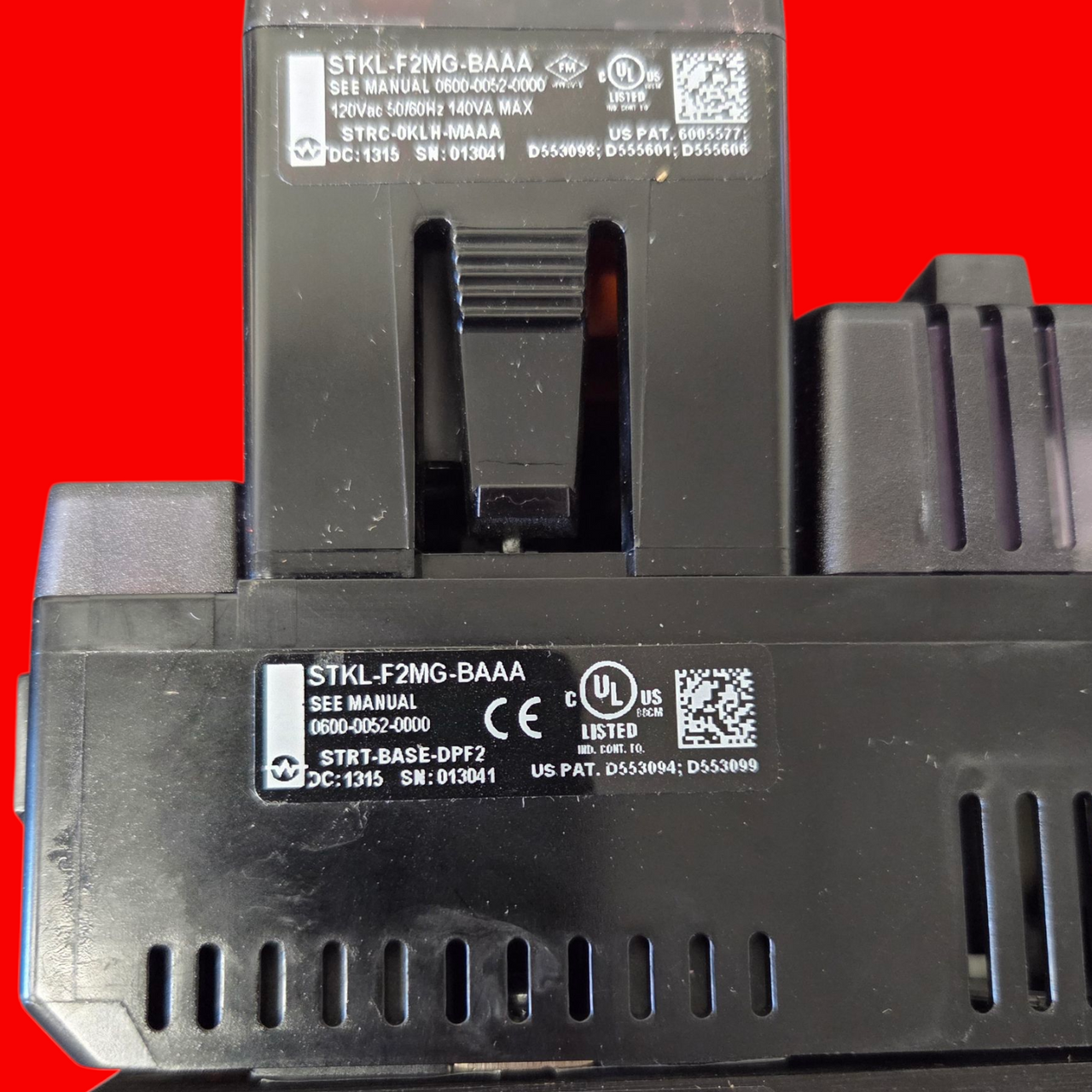

Watlow STKL-F2MG-BAAA EZ-Zone ST Solid State Controller
PN: STKL-F2MG-BAAA
Universal Input:
- Thermocouple, Grounded or Ungrounded Sensors
- RTD 2- or 3-wire, Platinum, 100 O @ 0øC Calibration to DIN Curve (0.00385 O/O/øC)
- Process, 0 to 20 mA @ 100 O, or 0 to 10VDC @ 20kO Input Impedance; Scalable, 0 to 5 mV
- Inverse Scaling
- >20 MO Input Impedance
- Maximum of 20kO Source Resistance
- Maximum of 20O Lead Resistance for an RTD
- 42VDC Isolation Voltage for Input 2
Outputs:
- 1: SSR Zero Cross 25 A, 48 to 600VAC
- 2: 0.5A SSR
- 3: Limit Control 5A, Form C Mechanical Relay
- 4: 2A, Form A Mechanical Relay
Contactor: 2-Pole 40A 120VAC
Communication: Isolated EIA 485 Modbus RTU
Power Requirements: 110/120VAC
Mounting: DIN Rail
