Product Description

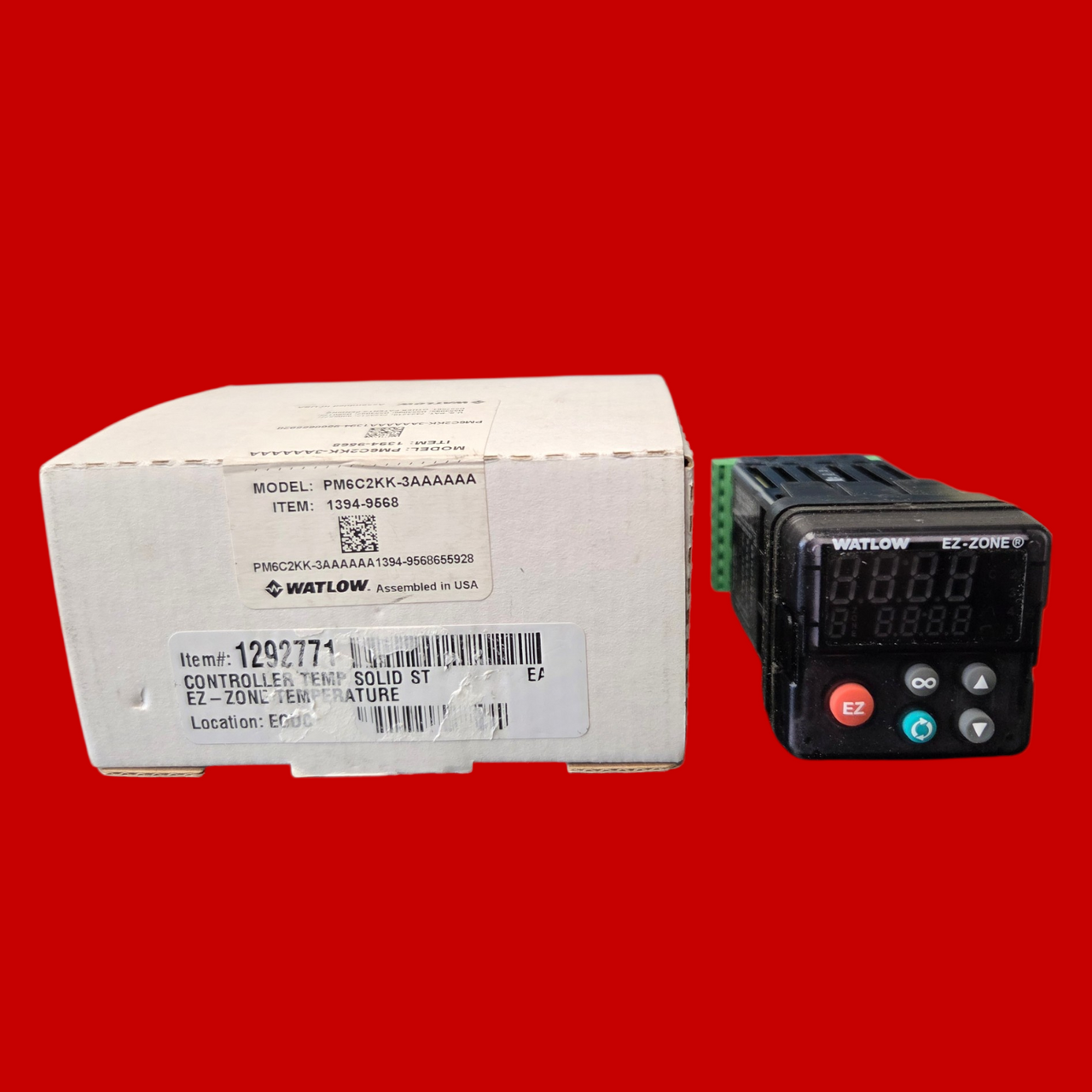

Watlow PM6C2KK-3AAAAAA EZ-ZONE Temperature Controller
PN: PM6C2KK-3AAAAAA
- Package Size/Mounting: 1/16 DIN panel mount (48x48mm).
- Primary Function: PID Controller with universal input.
- Input Type: Universal input, accepting thermocouple, 2- or 3-wire RTD (100Ω and 1000Ω @ 32°F), process signals (0-20mA, 0-10VDC, 0-50mV), and 0-1000Ω potentiometer inputs.
- Power Supply: 100-240 VAC.
- Outputs 1 & 2: Two SSR (Solid State Relay) Form A outputs, each rated for 0.5 Amp.
- Communications: Ethernet IP/Modbus/TCP.
- Display: Two lines of red and green LCD display for preset and current values.
- Keypad: SMOOTH-TOUCH keypad to prevent contamination points.
- Features: Includes TRU-TUNE+ adaptive control algorithm for tight control and supports the EZ-LINK mobile application via Bluetooth for easy setup and monitoring.
