Product Description

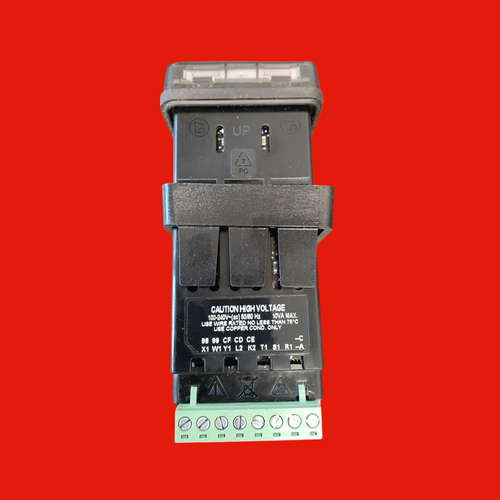

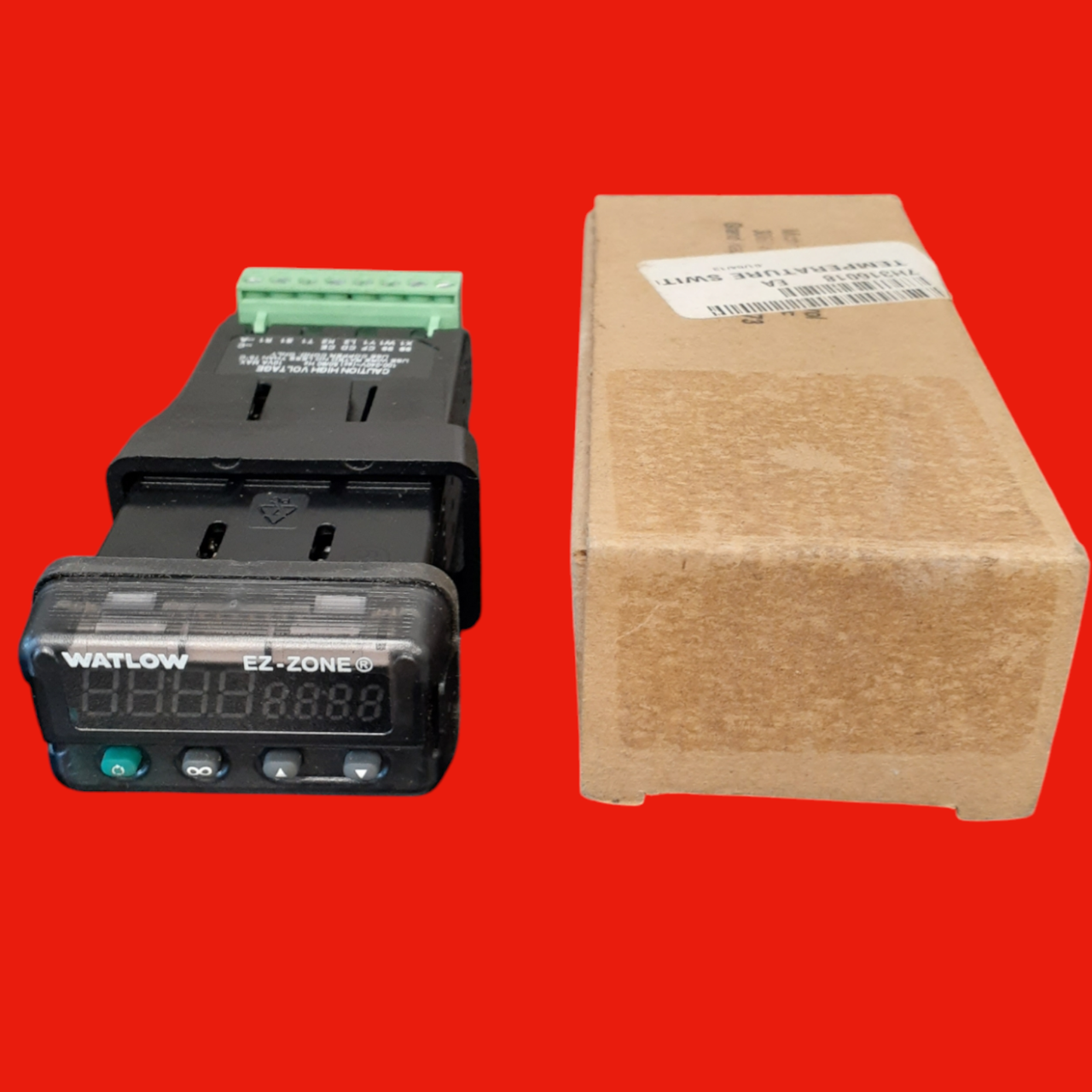

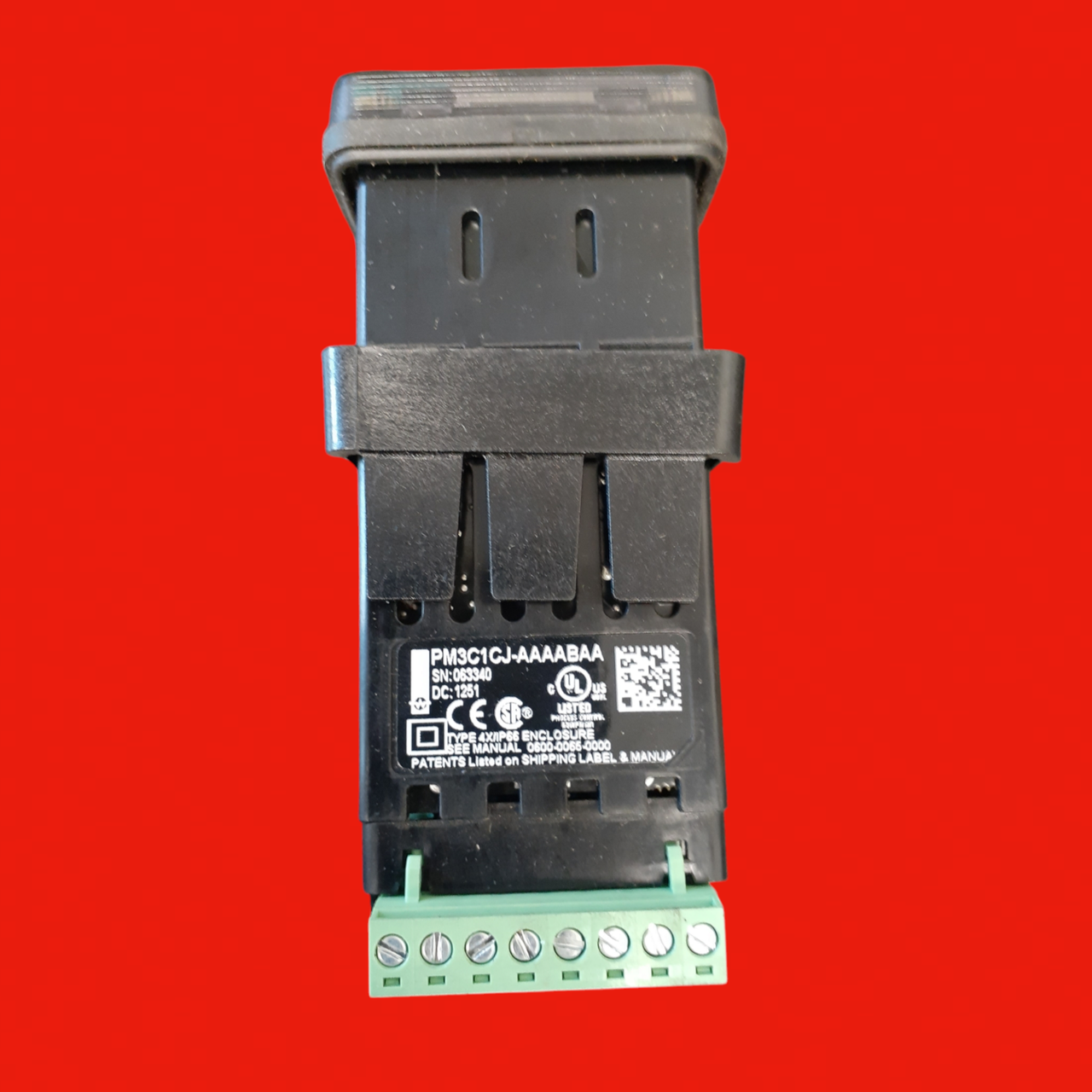

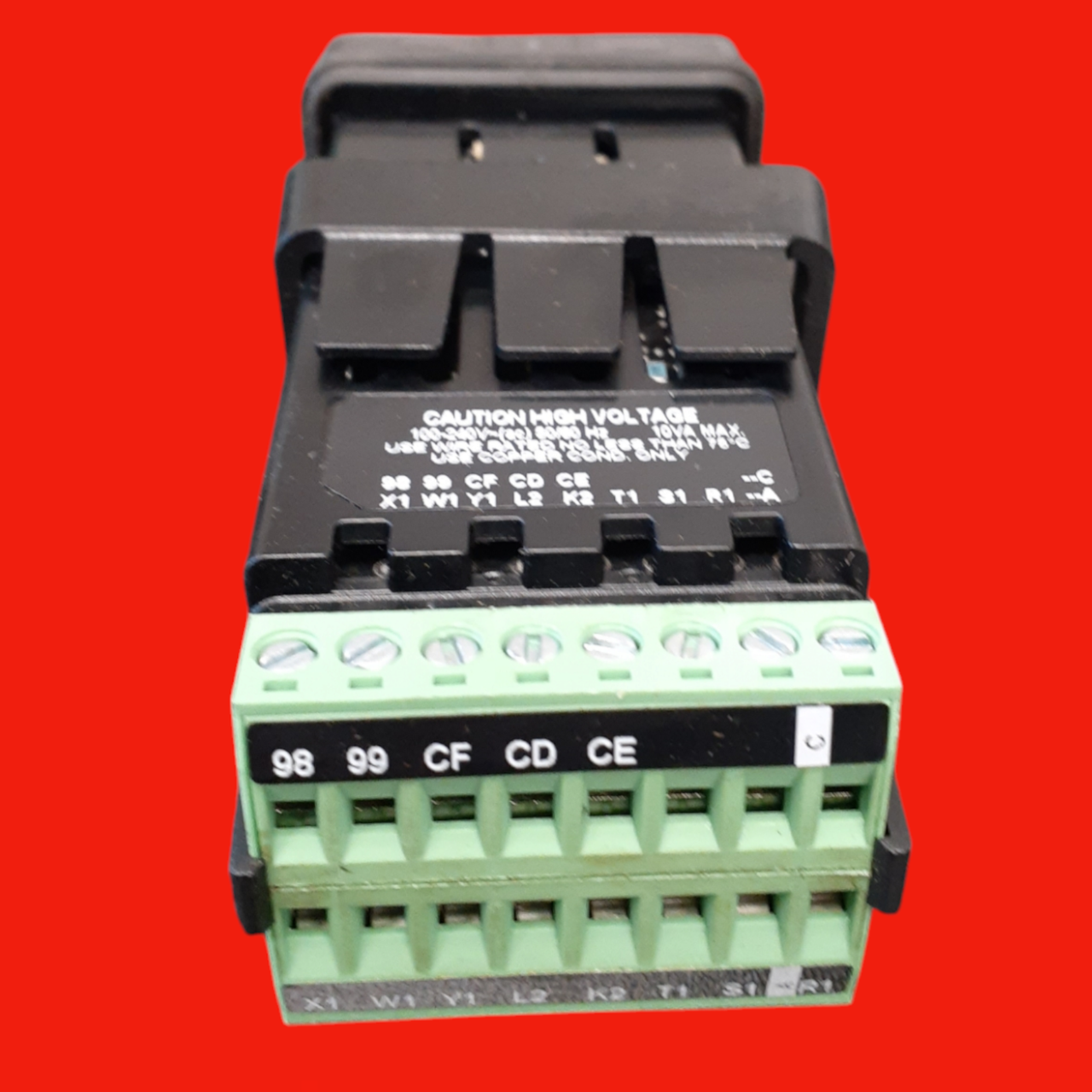

Watlow PM3C1CJ-AAAABAA Ez-Zone Panel Mount Temperature Controller
PN: PM3C1CJ-AAAABAA
1/32-DIN 2-Outputs
- One Universal Input
- Output #1 (C) - Switched DC/Open Collector
- Output #2 (J) - 5A Mechanical Relay (Form A)
- Operating Voltage 100 ~ 240VAC
- Auto-Tune PID Controller
- PM Express Set-Up Menu
- For Basic Heating/Cooling Application
- This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
- The serial communications when used with the free WATLOW software, saves time of controller setup.
- P3T armor sealing system Complies to NEMA 4X, IP66
Universal Input
- This can be a thermocouple grounded or ungrounded
- It can be an RTD 2-wire or 3-wire
- It can be 0-20mA or 0-50mV
Switched DC Specifications:
- 30mA DC Maximum Supply Current
- Short Circuit Limited to < 50mA
- 22 ~ 32V -DC Open Circuit Voltage
- Drives External Relay Using dc- and dc+
Open Collector Specifications:
- Current Sinking Output @ 100mA Maximum
- Maximum Supply Voltage -30VDC
- For DC Loads An External Power Supply Is Required
- Connect Load Negative To Open Collector
Electro-Mechanical Relay Form A Specifications:
- Maximum Resistive Load 5A at 240VAC or 30VDC
- 20mA at 24V Minimum Load
- Rated For Pilot Duty 125VA at 120/240VAC and 25VA at 24VAC
- Single Pole Single Throw Normally Open Contact
- 100,000 Cycles at Rated Load
- Output Does Not Supply Power
- For use on AC or DC Loads
