Product Description

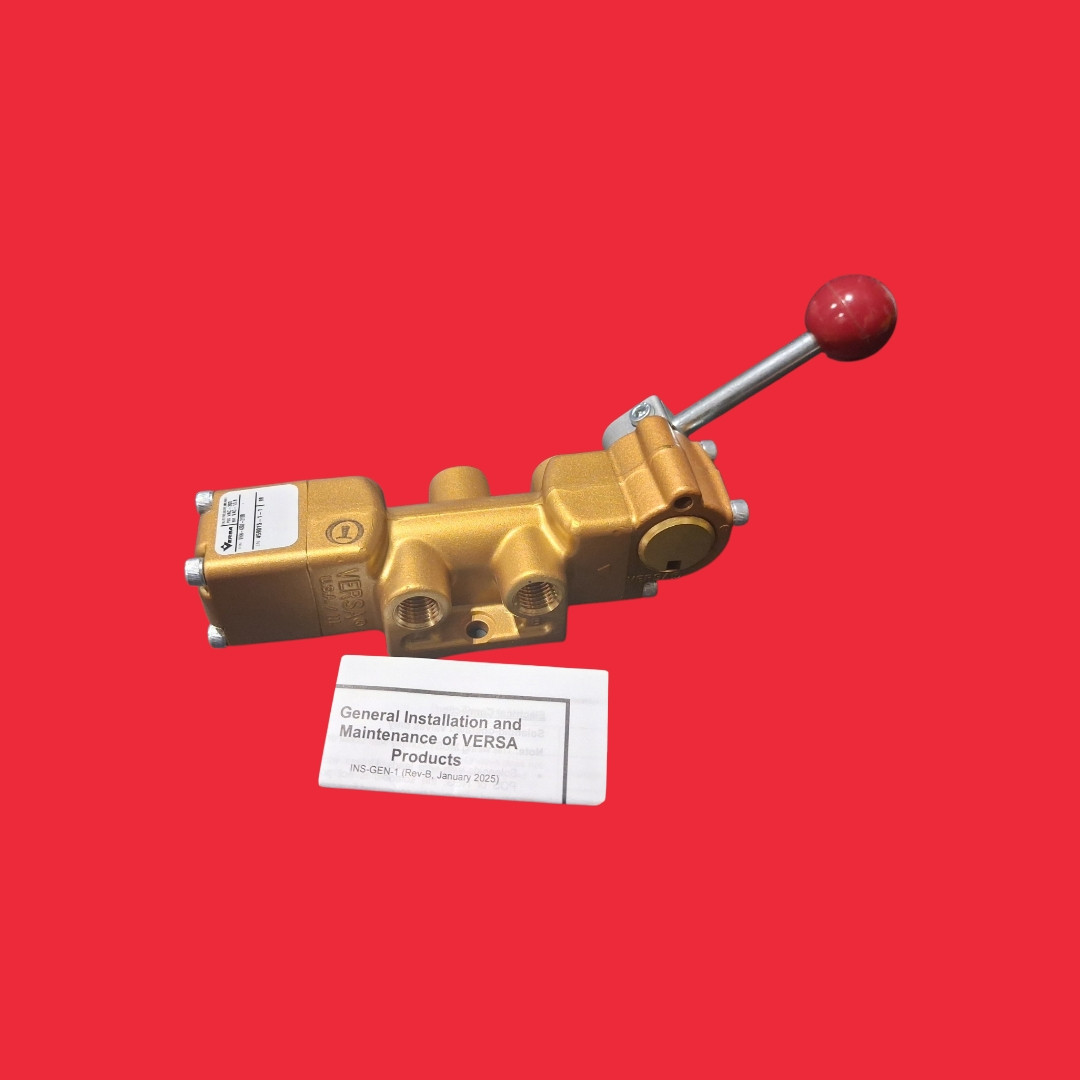

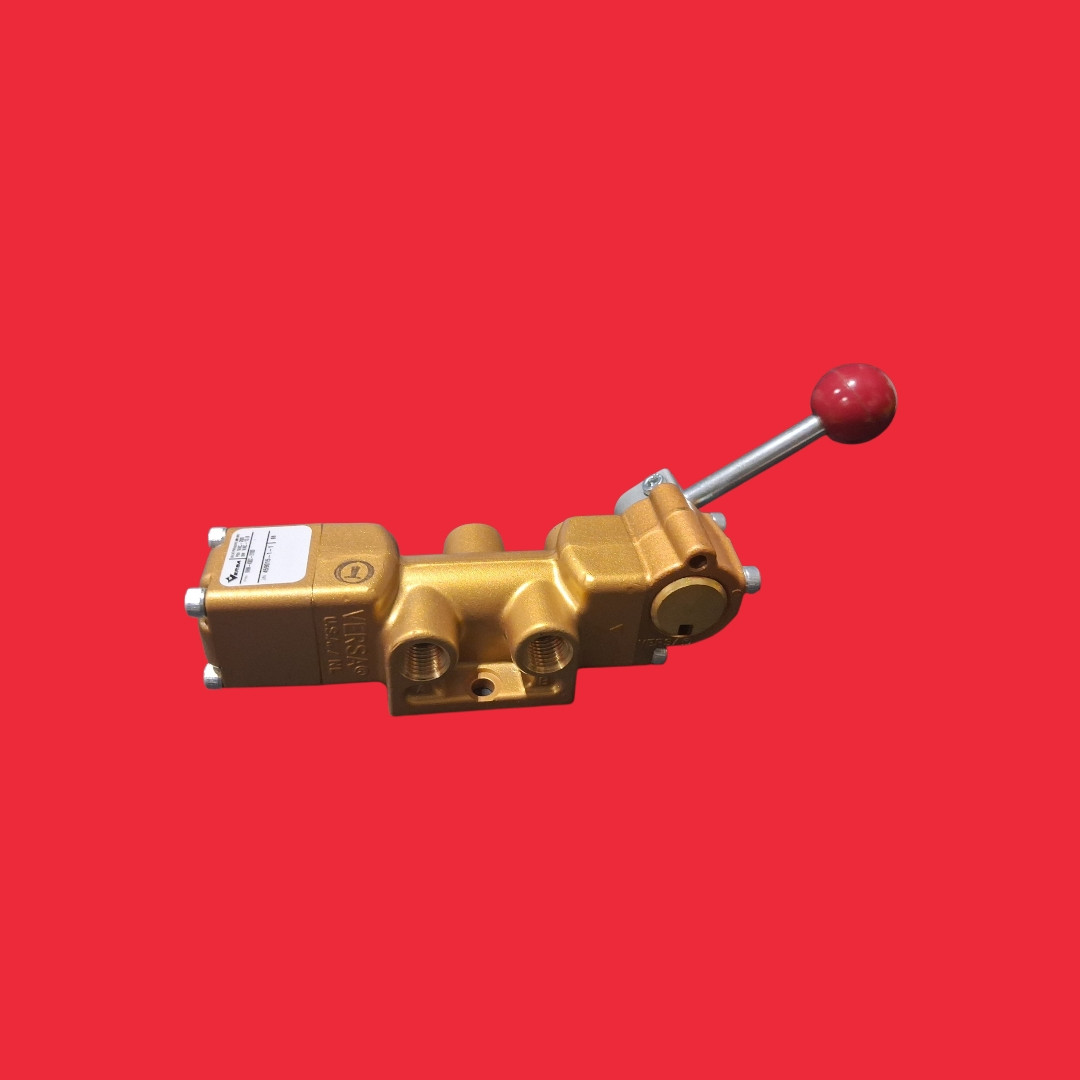

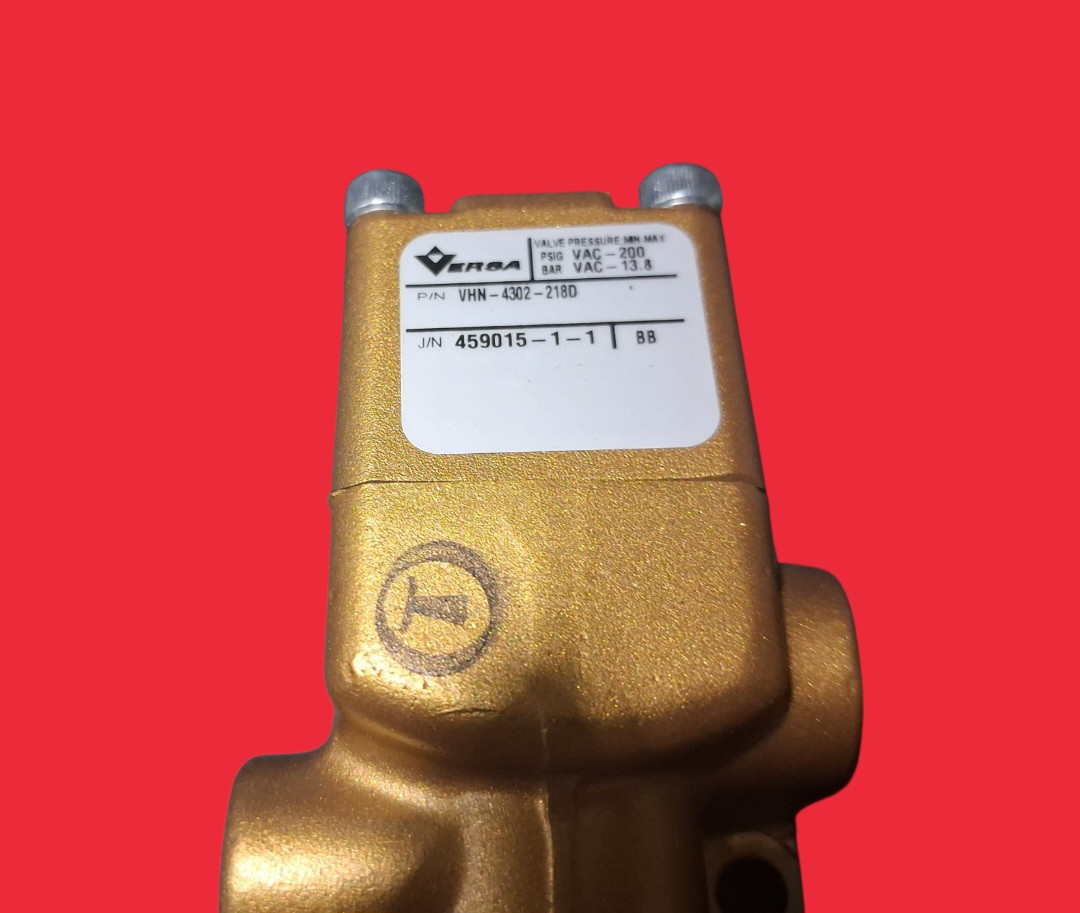

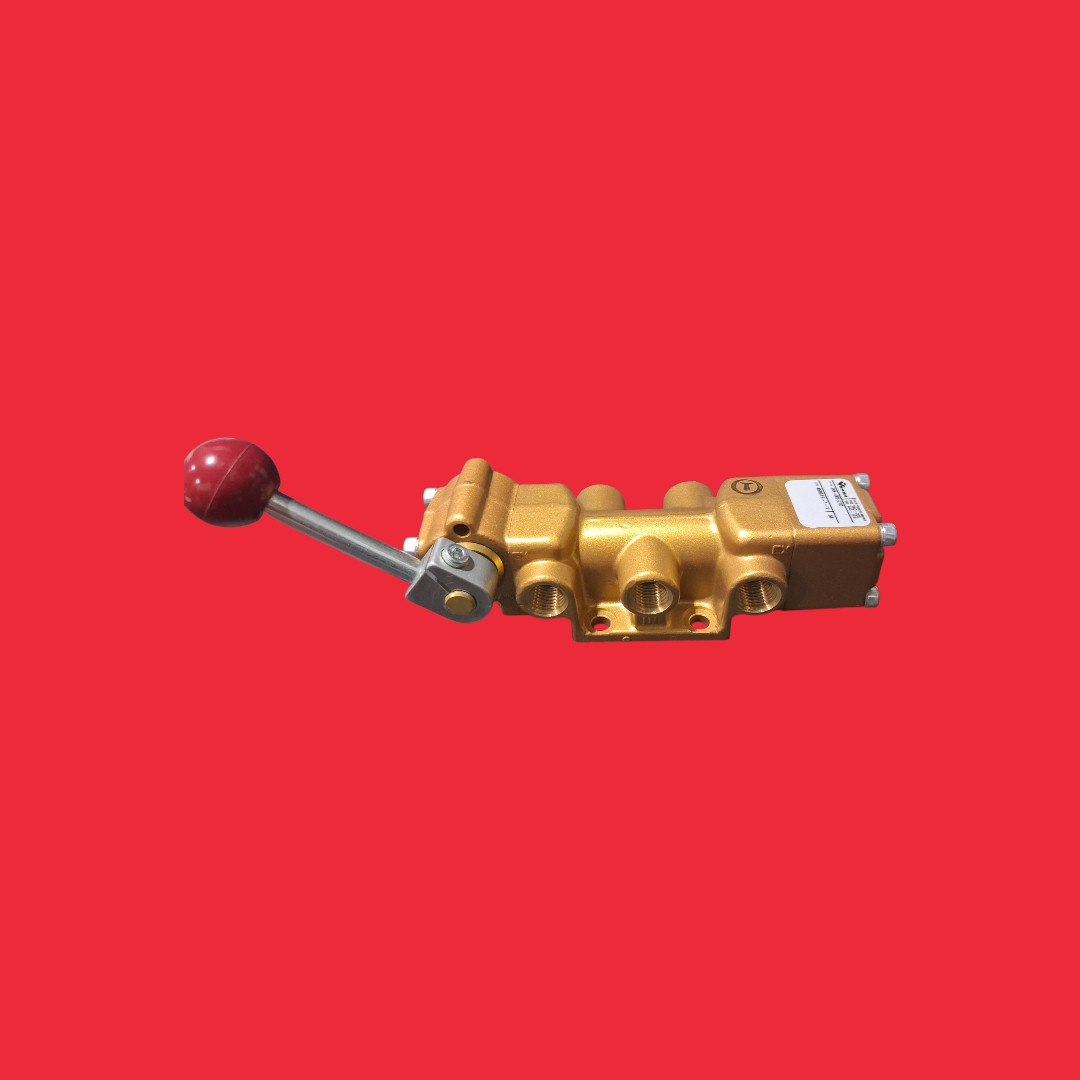

Versa VHN-4302-218D 4-Way, 2-Position Pneumatic Directional Control Air Valve 1/4" NPT
Part#: VHN-4302-218D
Built with a heavy-duty forged brass body, this side-ported pneumatic valve features a modular V-Series design engineered for long-lasting, leak-tight performance in demanding fluid power applications.
- Valve Type: 4-Way, 2-Position (4/2) directional control valve
- Body Size / Porting: 1/4" NPT body size with side-ported external pilot connections.
- Actuation Mechanism: Manual hand lever (offset orientation) without an actuating or return device
- Flow Capacity: 1.8 Cv rating for steady high-flow air delivery
- Operating Pressure Range: Vacuum to 200 psi
- Temperature Range: 5°F to 203°F (-15°C to 95°C) utilizing robust Buna-N/nitrile rubber O-ring seals
