    Universal Flow Monitors, Inc.

    $299.00
    (No reviews yet) Write a Review
    SKU:
    SKU110313
    Condition:
    New
    Width:
    12.00 (in)
    Height:
    12.00 (in)
    Depth:
    12.00 (in)
    Adding to cart… category.add_cart_announcement

    Product Description

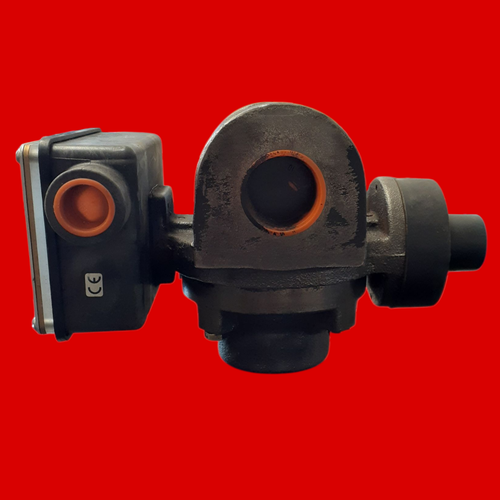

    Universal Flow Monitors Inc. MN-CSF50GM-10-100V.86-A1WU-E-30D Vane-Piston Variable Area Flow Meter

    Part#: MN-CSF50GM-10-100V.86-A1WU-E-30D

    These are variable area meters with a spring biased semi-circular vane that opens wider with more flow. They are installed in-line in any position. Straight pipe runs before or after the meter are not required. The simple mechanical connection directly drives pointers, switches and transmitters.

    • Series: MN
    • Pressure Rating: Normal pressure (300 PSI)
    • Housing Material: Carbon Steel
    • Maximum Flow Rate: 50 GPM
    • Pipe Size: 1-1/4"
    • Weatherproof (Type 4)
    • Flow Direction: Right to left

    3 Wire Switch

    • Rated 15A, 480 VAC:1/8hp
    • 125 VAC: 1/4 hp, 250VAC

     4 Wire Switch

    • Rated 15A, 480 VAC: 1/4 hp. 125 VAC: 1/2 hp
    • 250 VDC: 1A. 125 VDC: 0.5A. 250 VDC
