Product Description
Thermal Transfer Products SB-1002-C4-T Heat Exchanger
PN: SB-1002-C4-T

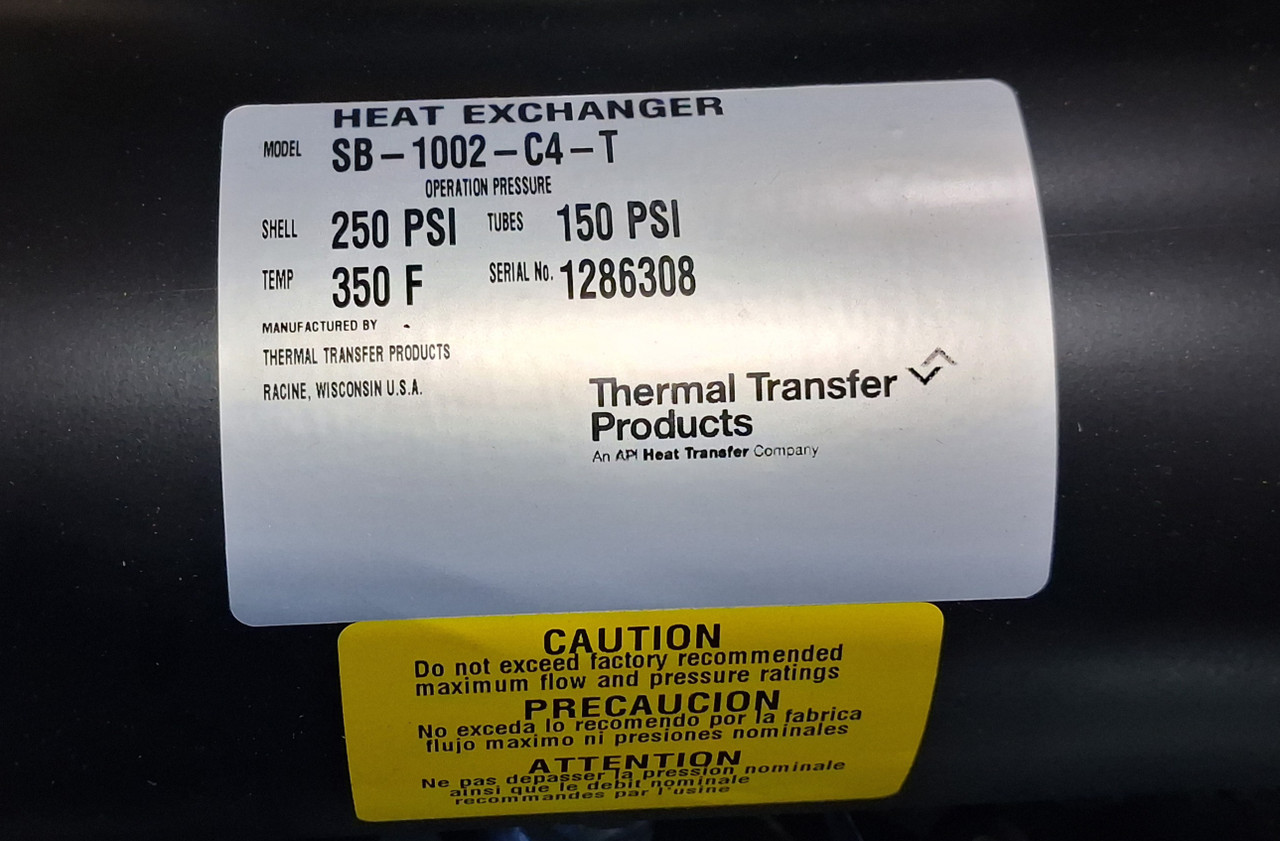

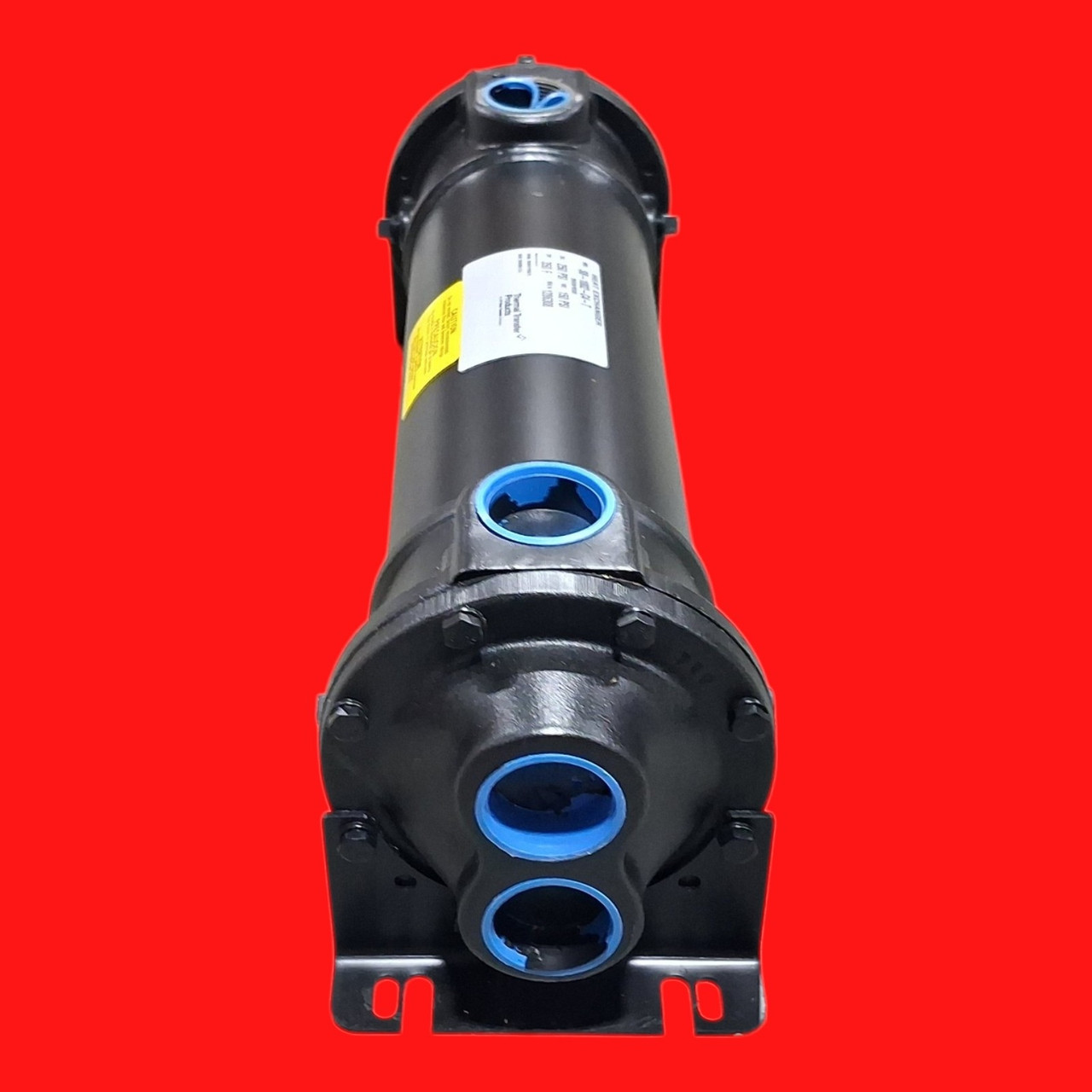

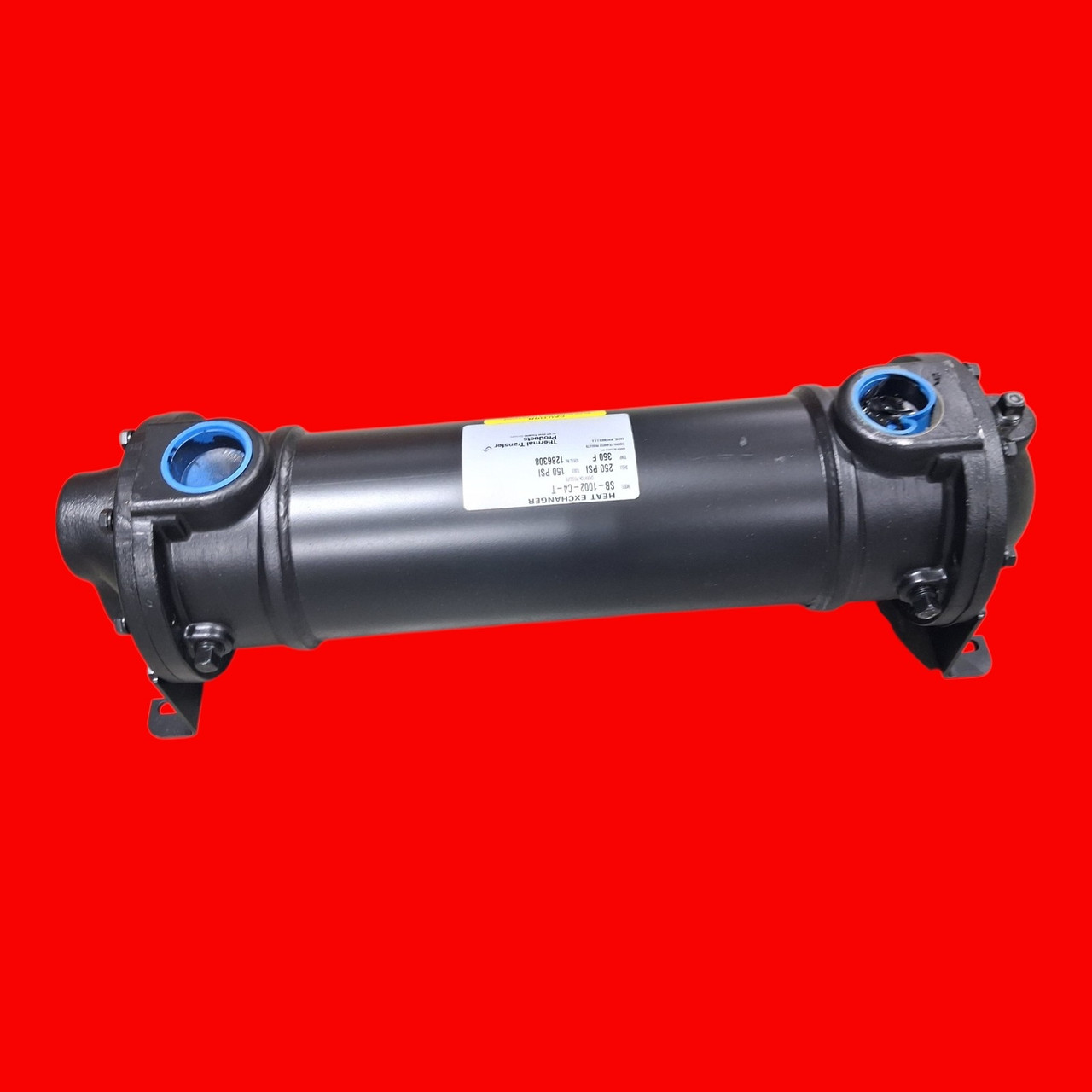

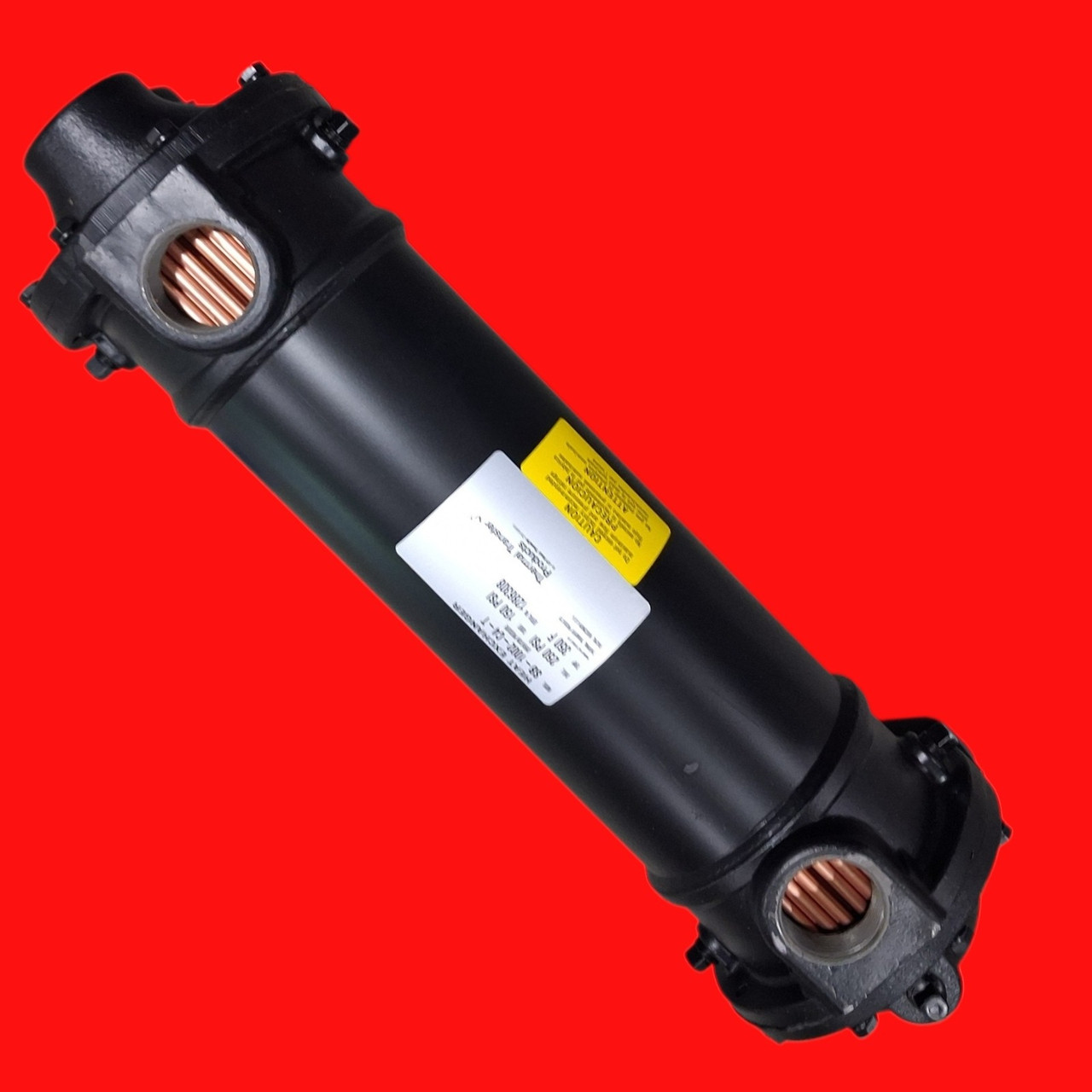

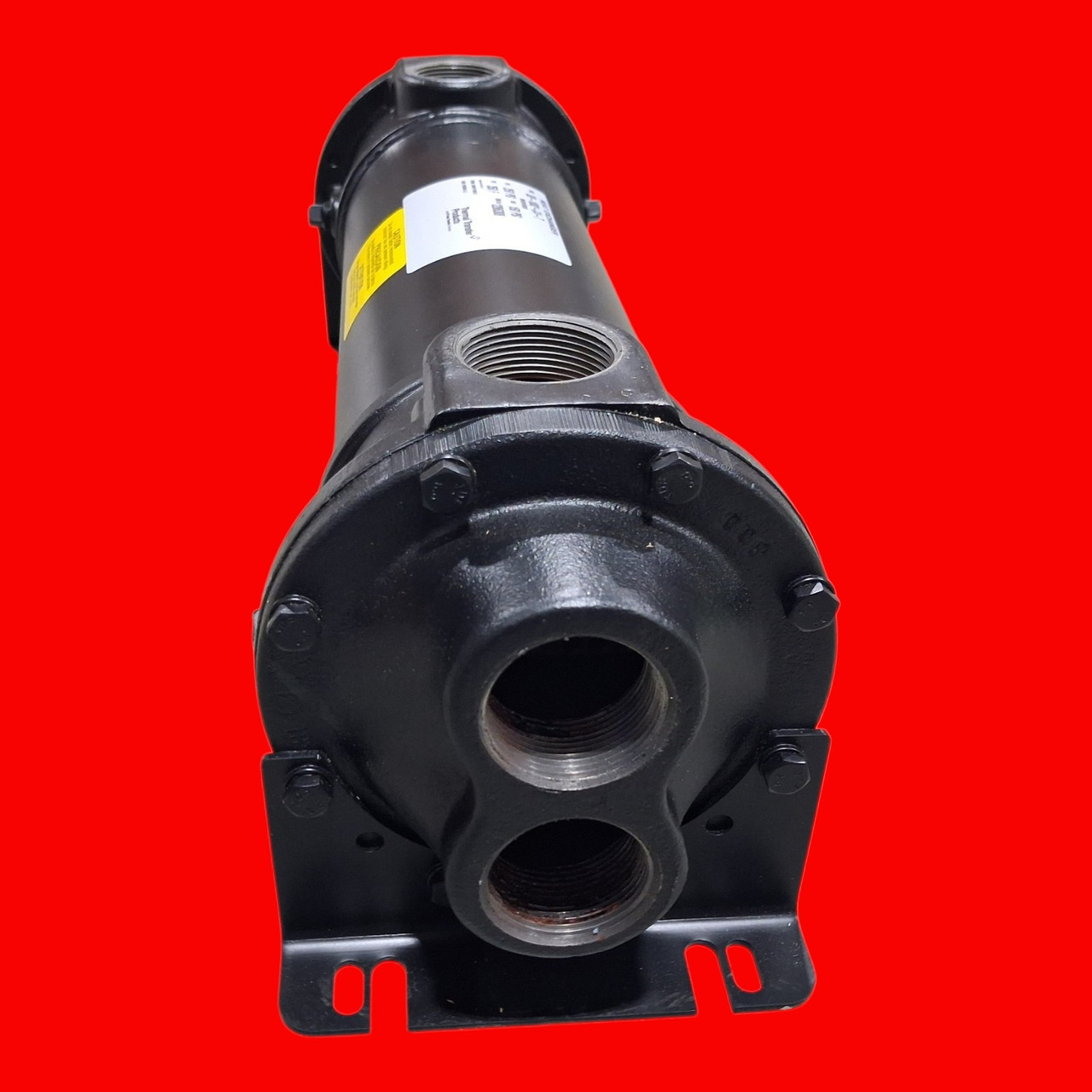

The SB-1002-C4-T is a shell and tube 2-pass heat exchanger with integral hub design. It is notable for its rugged, versatile construction, and as a compatible interchange for Young Touchstone exchangers. This unit has a hub, 5-inch diameter x 18" long shell, 0.25-inch Copper tubes, and Cast Iron end bonnets. This unit has a maximum working shell pressure of 250 PSI, tube pressure of 150 PSI, and maximum operating temperature of 350F. TTP SB Series heat exchangers are great for a variety of industrial and mobile applications. Units are available using standard materials such as a steel shell with cast iron bonnets and copper tubes.
Overview
- Series: C
- Brand: Thermal Transfer / TTP
Configuration & Size
- Size: 5" Diameter Shell x 18" Tube Length
- Connections: NPT Shell Side / NPT Tube Side
- Baffle Spacing: 4.5" Baffles
- Cooling Tube Diameter: 0.25" Tubing
- Tube Side Passes: 2 Pass
Materials of Construction
- Tubes: Copper
- Hub & Tubesheet: Steel
- Shell: Steel
- End Bonnets: Cast Iron
Max Rating
- Shell Pressure: 250 PSI
- Tube Side Pressure: 150 PSI
- Temperature: 300F
