Product Description
SSI Super Systems PGA 3510 Portable Gas Analyzer, PN: 13533
Part #13533
Serial #: PGA145015

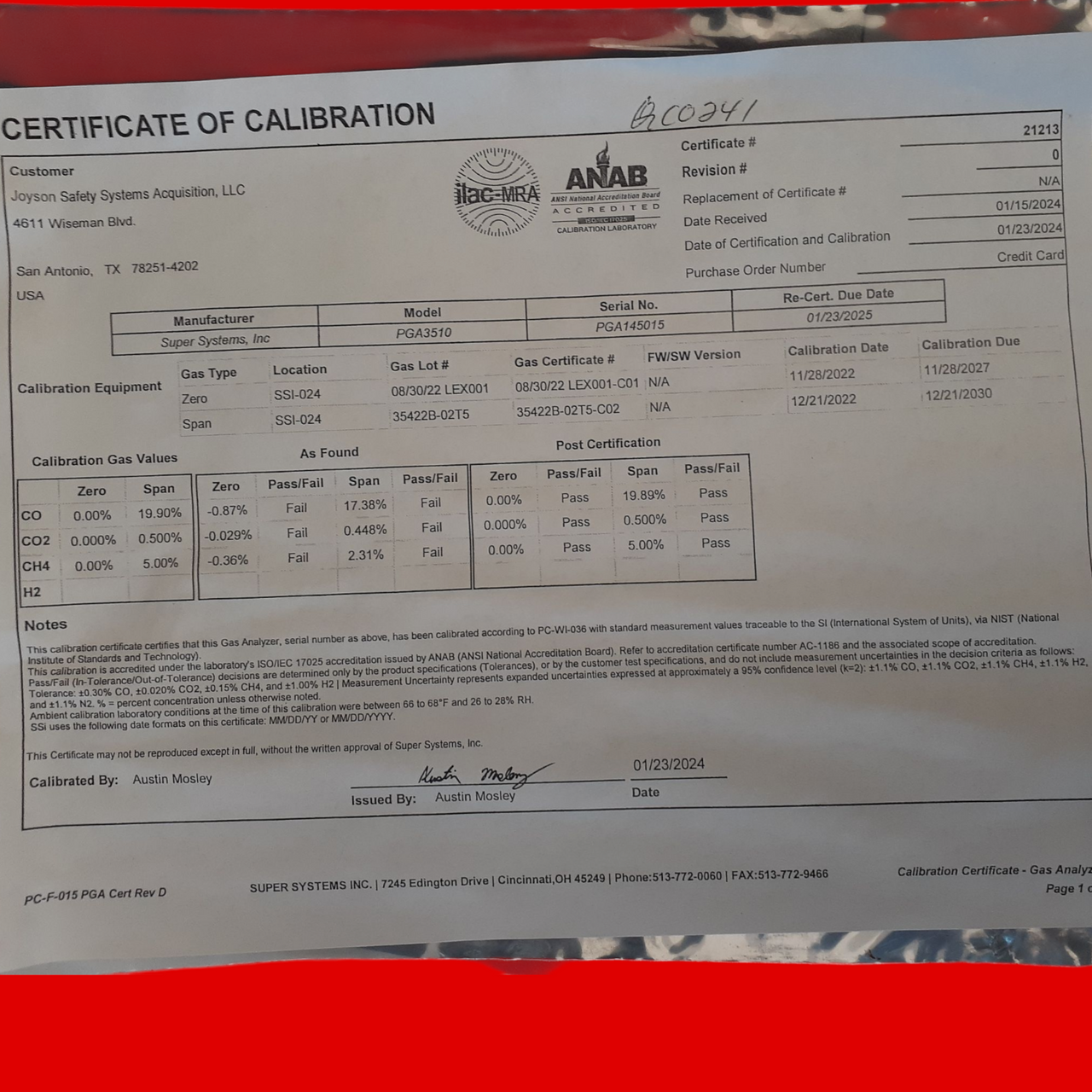

Condition: Used in good shape. (Will need calibrated for compliance)
The portable gas analyzer can be used for the calculation of carbon in endothermic and nitrogen methanol based atmospheres with an input of temperature. This instrument meets CQI-9 requirements for daily generator and furnace atmosphere verifications.
| Sampling method | Extraction by internal pump (when necessary) |
| Measurement Method (CO, CO2, CH4) | Non-Dispersive Infrared (NDIR) |
| Measurement Method (O2) | Electrochemical |
| Thermal Conductivity | |
| Accuracy and repeatability | ± 1% of full scale |
| Recommended Factory Calibration Interval | Annual |
| Flow Meter | Inside case lid and also on-screen |
| AC Power Requirements | 90 to 230 VAC, 50 to 60 Hz, 60 Watts |
| DC Power Source | 12VDC rechargeable NiCd battery with Integral charger |
| Communications | Ethernet, USB(A), USB(B), RS485 Modbus |
| Data Storage | Continuous automatic data logging |
| Data Retrieval | XGA Viewer Software or on-screen |
| Operating Temperature | 32° to 122° F (0° to 50° C) |
| External Dimensions | Approx. 16”H X 20”L X 8”D |
| Weight | Approx. 28 lbs. |
Datasheet: http://www.supersystems.com/wp-content/uploads/PGA_Full_Web.pdf
