Product Description

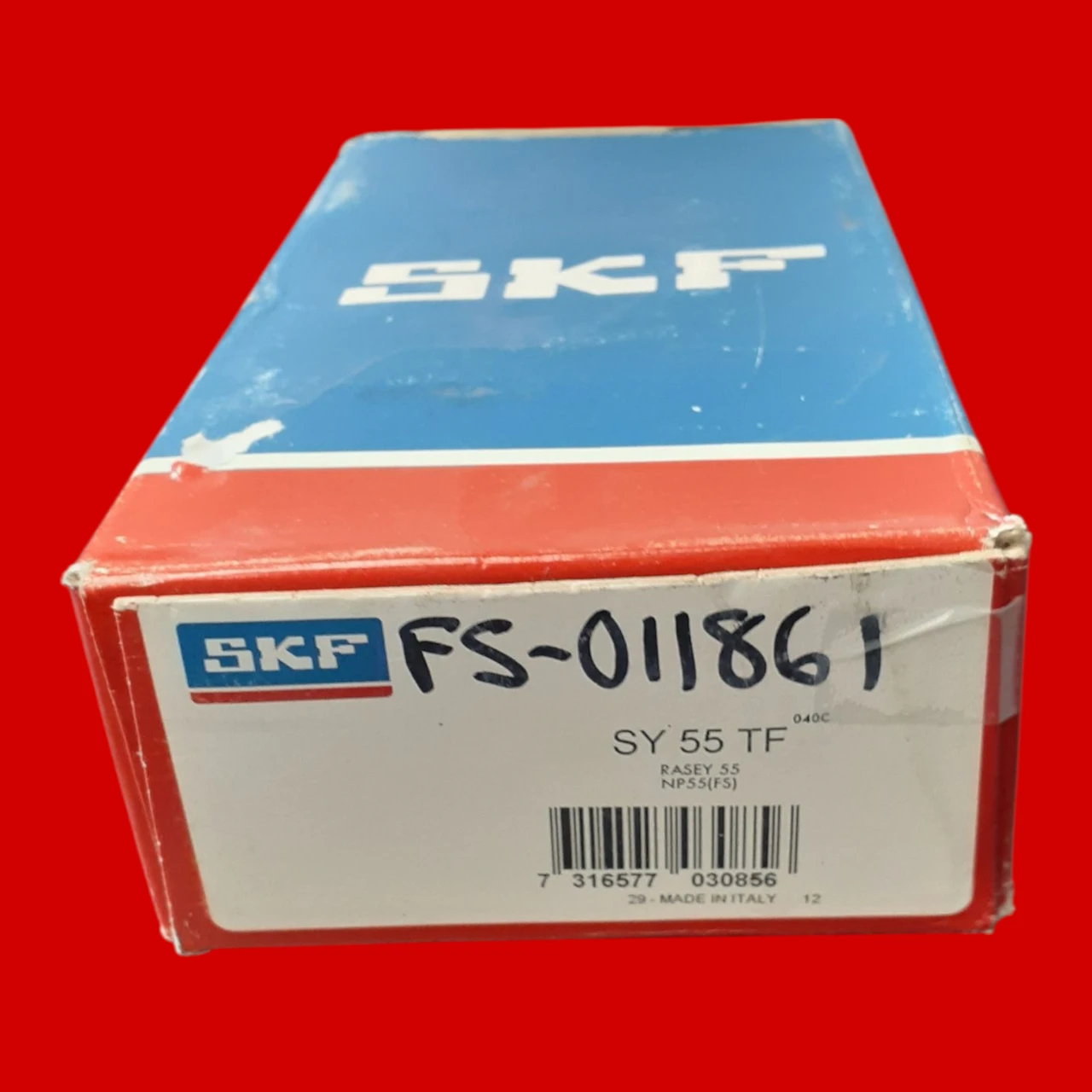

SKF SY 55 TF Pillow Block Ball Bearing Unit With Extended Inner Ring and Set Screw Locking, Cast Iron, 55mm Bore
PN: SY 55 TF
- Attachment bolt diameter: 16 mm
- Shaft diameter: 55 mm
- Centre height (pillow block): 63.5 mm
- Housing overall width: 60 mm
- Centre distance between bolt holes: 171.5 mm
- Bearing width, total: 55.6 mm
- Housing type: Pillow block, normal base
- Number of bolt holes for fasteners: 2
- Fastening bolt hole type: Plain
- Retaining feature, inner ring: Set screws
- Bore type: Cylindrical
- Rubber seating ring: Without
- Material, housing: Cast iron
- Material, bearing: Bearing steel
- Coating: Without
- Sealing, bearing: Seal and flinger on both sides
- Sealing type: Contact, standard
- Sealing, unit: Optional end cover
- Lubricant: Grease
- Relubrication hole: With
- Grease fitting: With
- Basic dynamic load rating: 43.6 kN
- Basic static load rating: 29 kN
- Limiting speed: 3 600 r/min
