Product Description

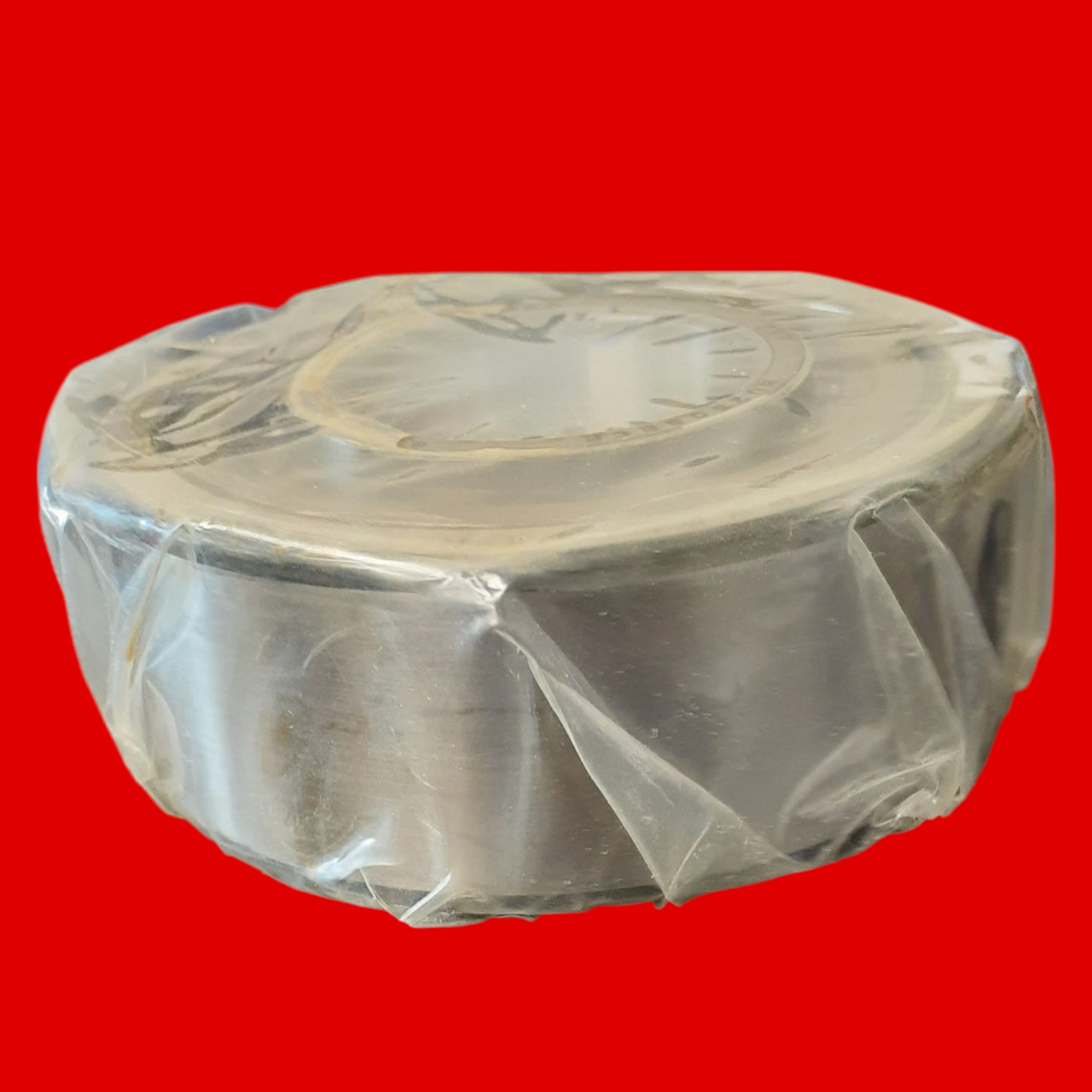

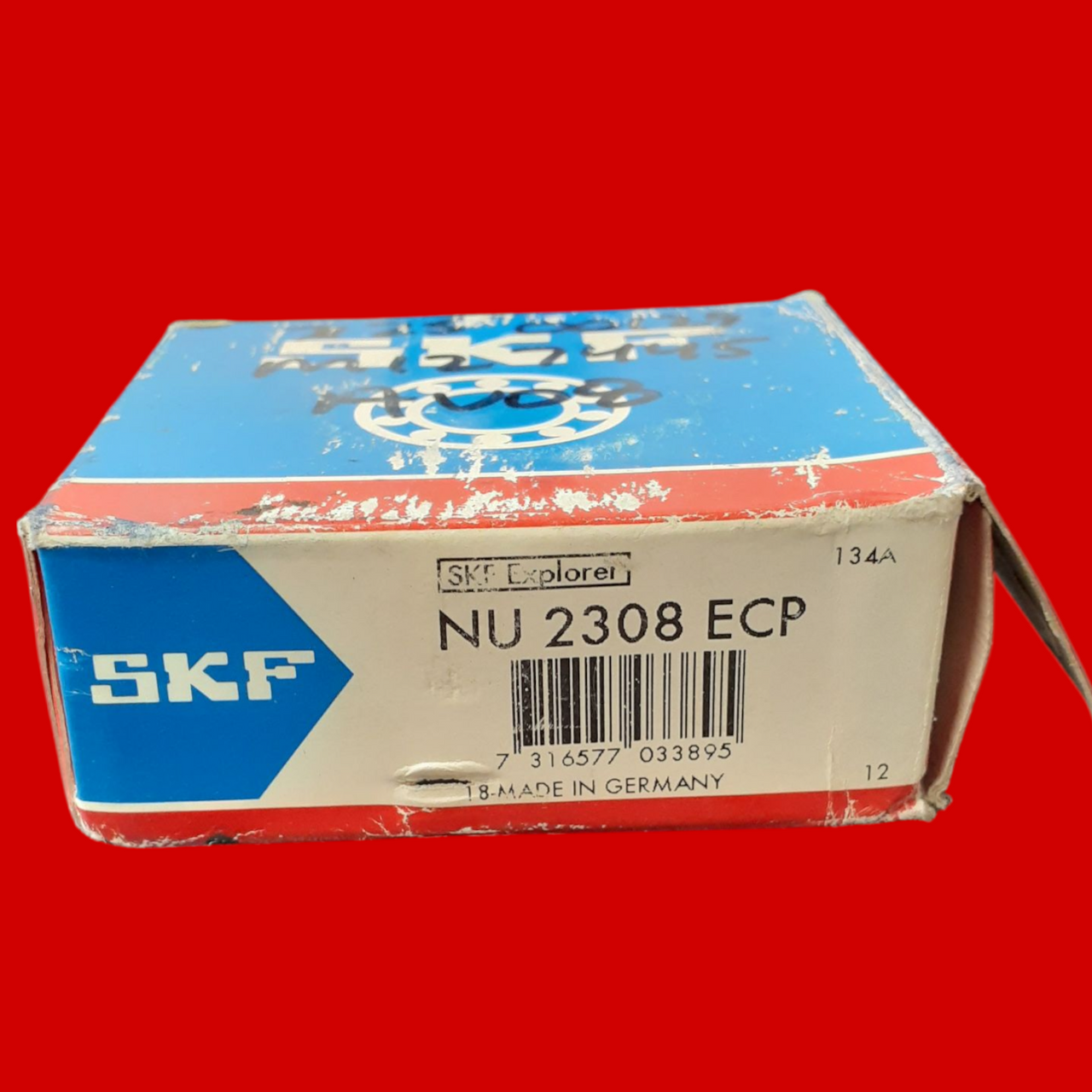

SKF NU 2308 ECP Single Row Cylindrical Roller Bearing, NU Design, 1.5748 in Bore
PN: NU 2308 ECP
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
Features
- High radial load carrying capacity
- Low friction
- Long service life
- Accommodate axial displacement in both directions
- Separable design
Specifications
- Bore diameter: 1.5748 in
- Outside diameter: 3.5433 in
- Width: 1.2992 in
- Basic dynamic load rating: 29 000 lbf
- Basic static load rating: 26 977 lbf
- Reference speed: 8 000 r/min
- Limiting speed: 9 500 r/min
- SKF performance class: SKF Explorer
