Product Description

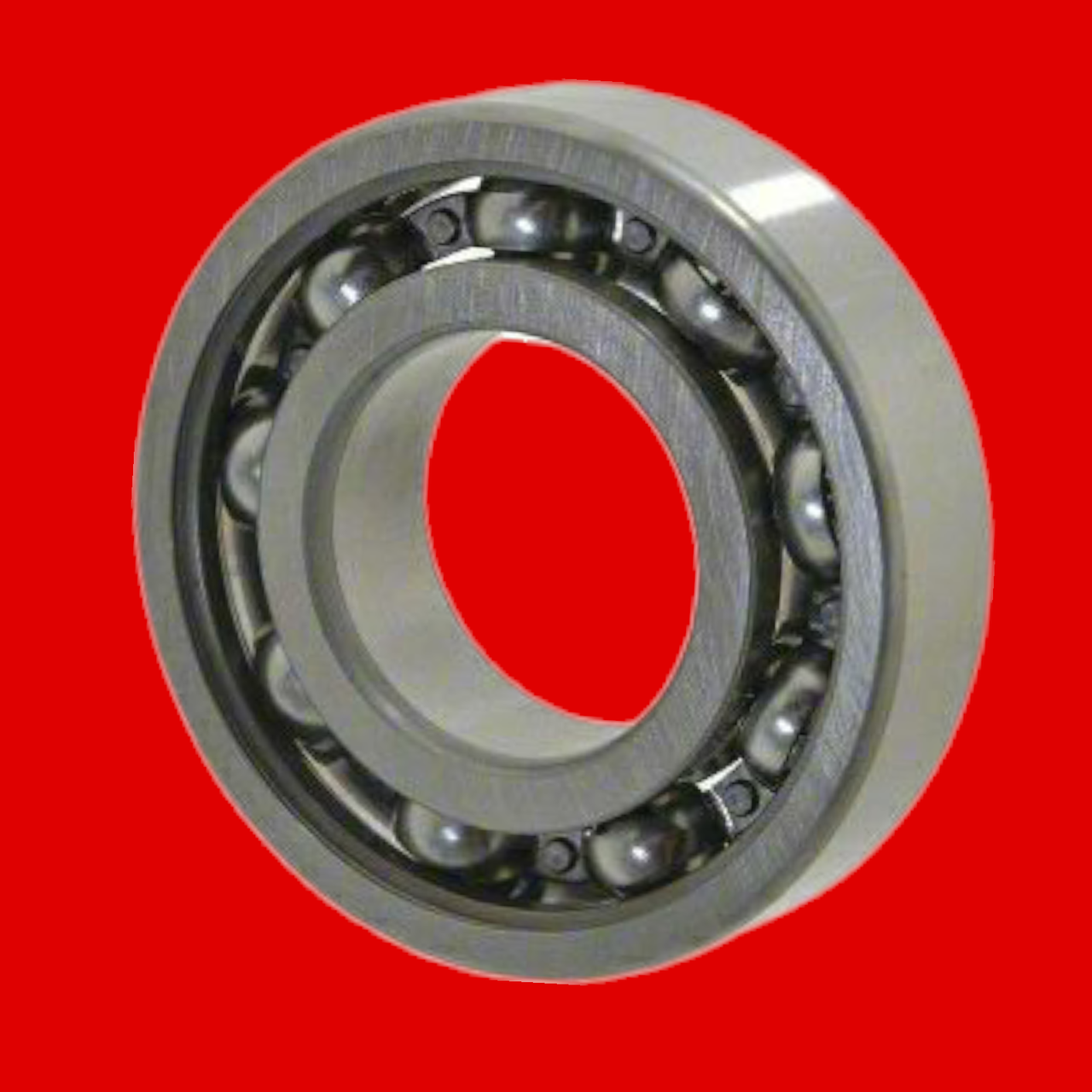

SKF 6305 JEM Deep Groove Ball Bearing, 0.98 in Bore
PN: 6305 JEM
Single row deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
- Simple, versatile and robust design
- Low friction
- High-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
Dimensions
- Bore diameter: 0.9843 in
- Outside diameter: 2.4409 in
- Width: 0.6693 in
Specifications
- Filling slots: Without
- Number of rows: 1
- Locating feature, bearing outer ring: Without
- Bore type: Cylindrical
- Cage: Sheet metal
- Matched arrangement: No
- Radial internal clearance: C3
- Material, bearing: Bearing steel
- Coating: Without
- Sealing: Without
- Lubricant: None
- Relubrication feature: Without
Performance
- Basic dynamic load rating: 5 261 lbf
- Basic static load rating: 2 608 lbf
- Reference speed: 24 000 r/min
- Limiting speed: 16 000 r/min
- SKF performance class: SKF Explorer
