Product Description

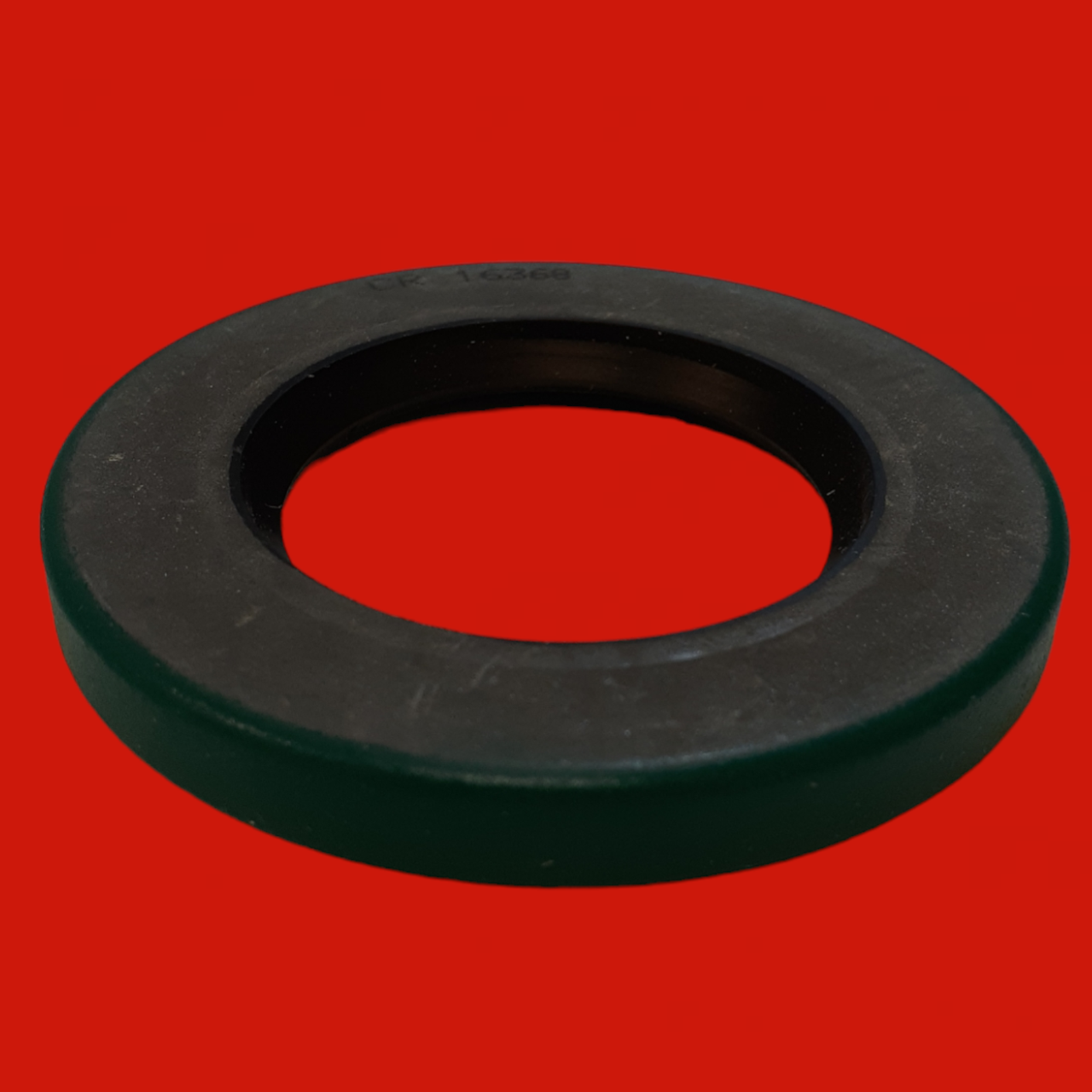

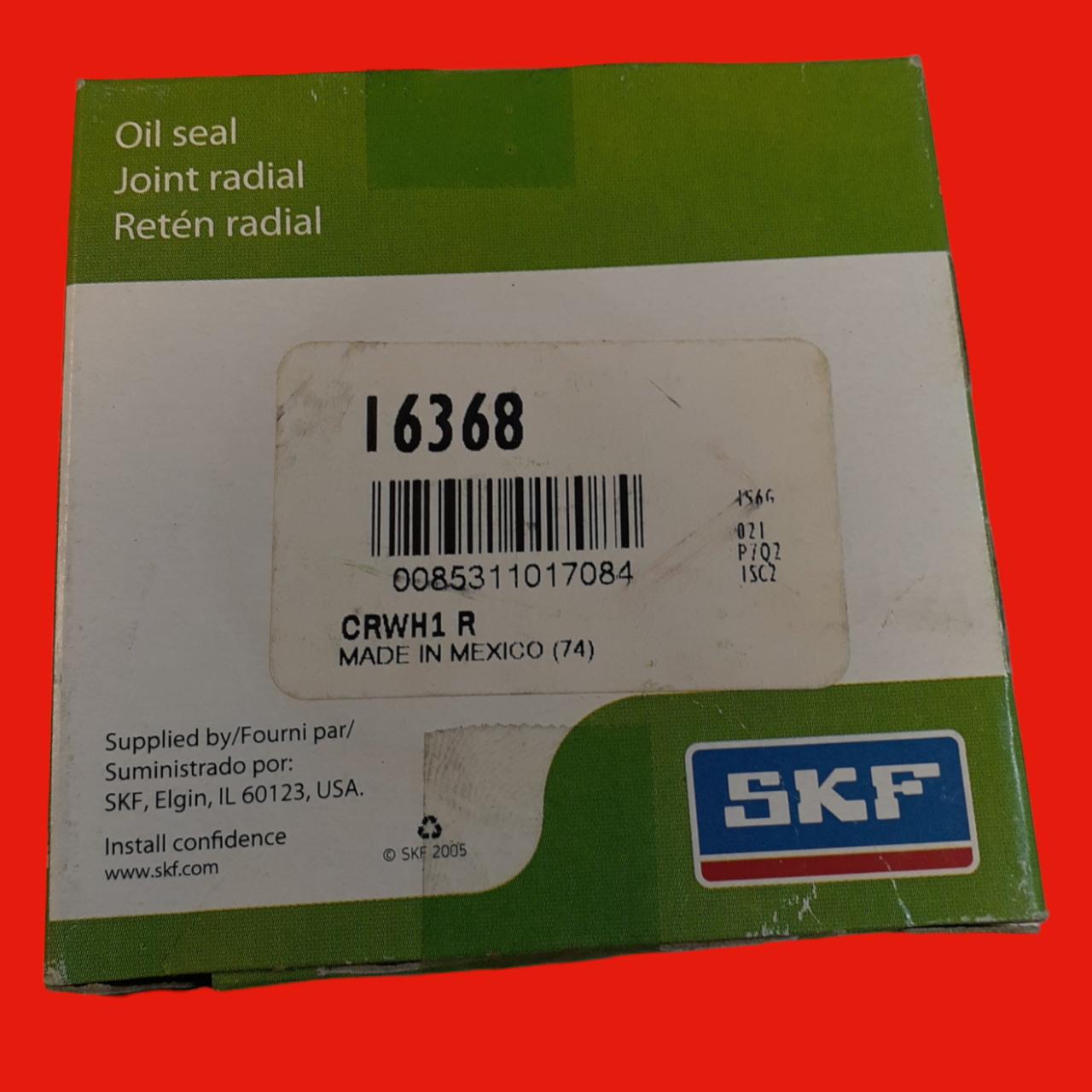

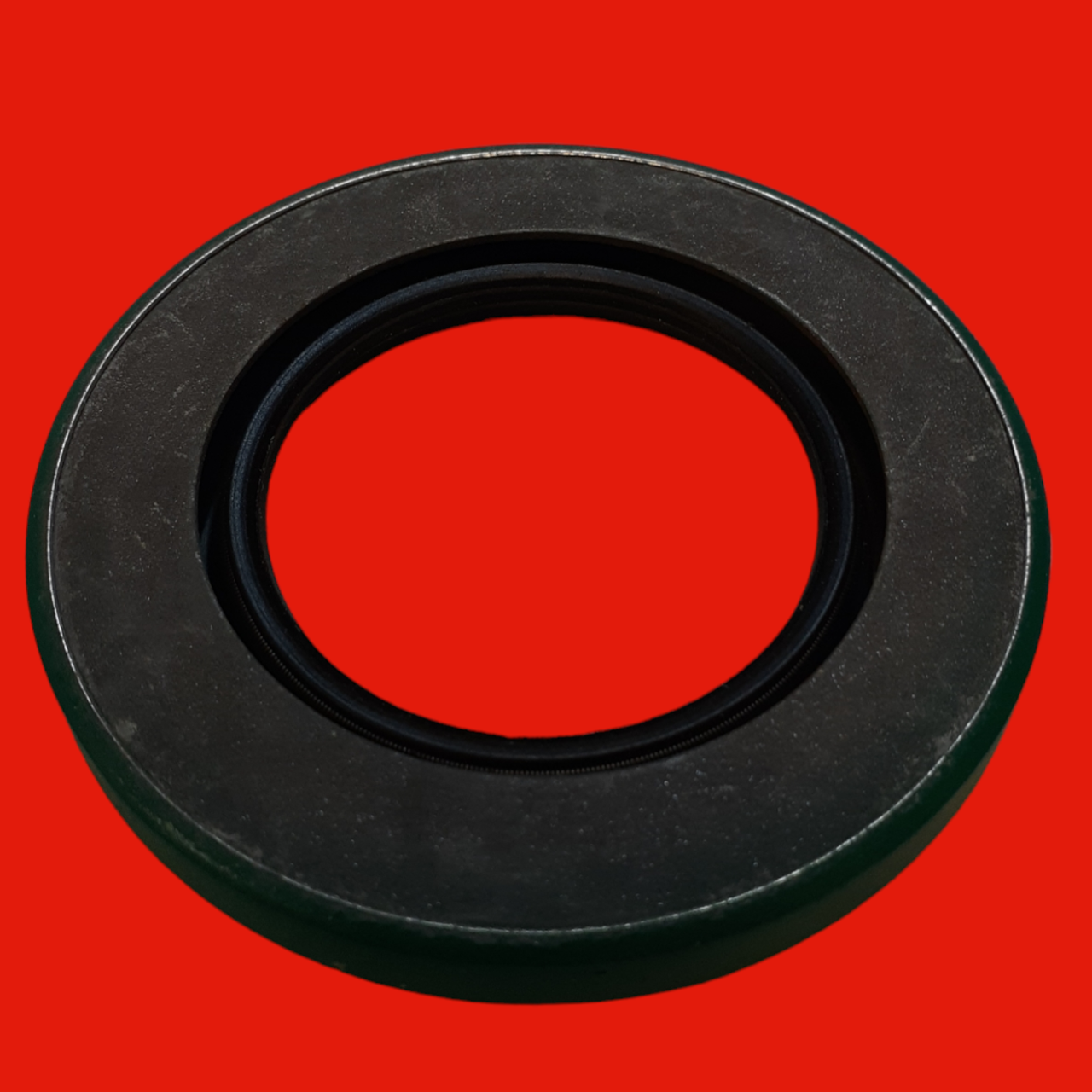

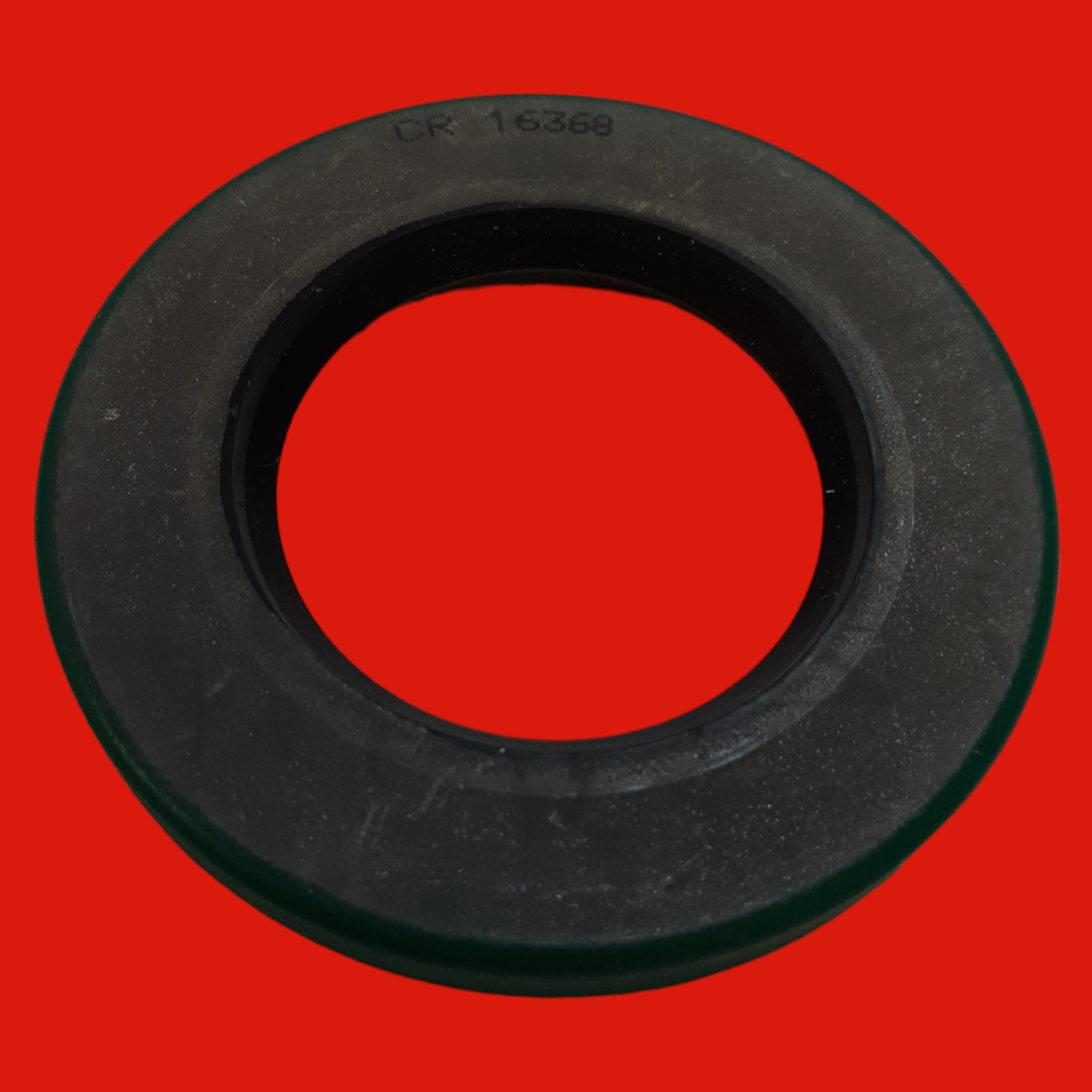

SKF 16368 Radial Shaft Seal with Double Metal Case, SKF Wave Lip, for Oil or Grease
PN: 16368
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRWH1 seals are designed with a double metal case, an SKF WAVE lip made of elastomer with a higher pumping rate to reduce heat generation, and a garter spring to optimize sealing against the shaft. Most of the seals feature the SKF Bore Tite coating on the outside diameter that helps fill small imperfections in the housing bore.
- For oil or grease
- With garter spring
- WAVE lip creates higher pumping rate
- WAVE lip has less friction between shaft and lip
- WAVE lip has a lower temperature at the contact point
Specifications
- Shaft diameter: 1.625 in
- Housing bore diameter: 2.75 in
- Seal width: 0.313 in
- Maximum operating temperature: 212 °F
- Minimum operating temperature: -40 °F
- Permissible circumferential speed: 1 389.764 ft/min
- Rotational speed: 3 240 r/min
