Product Description

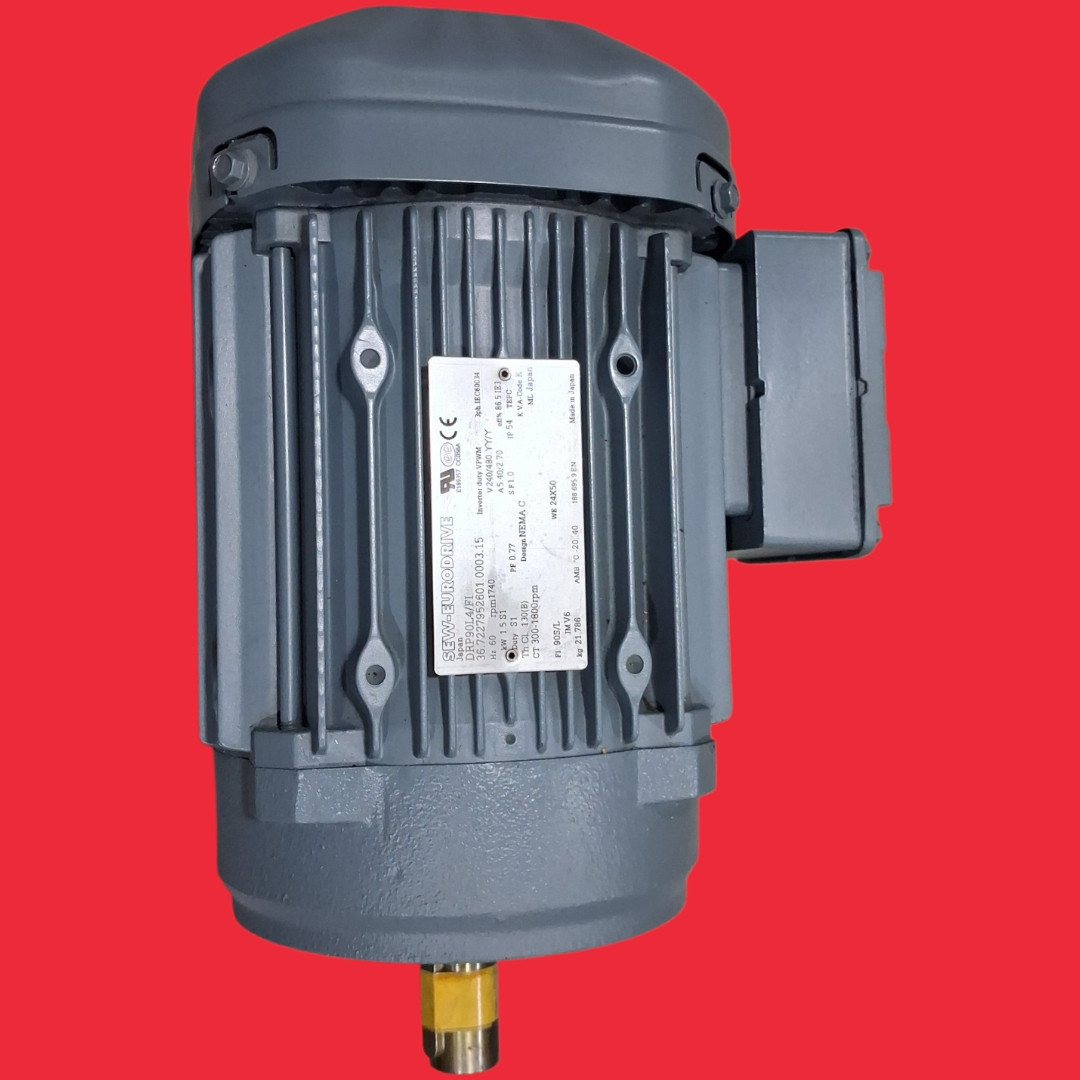

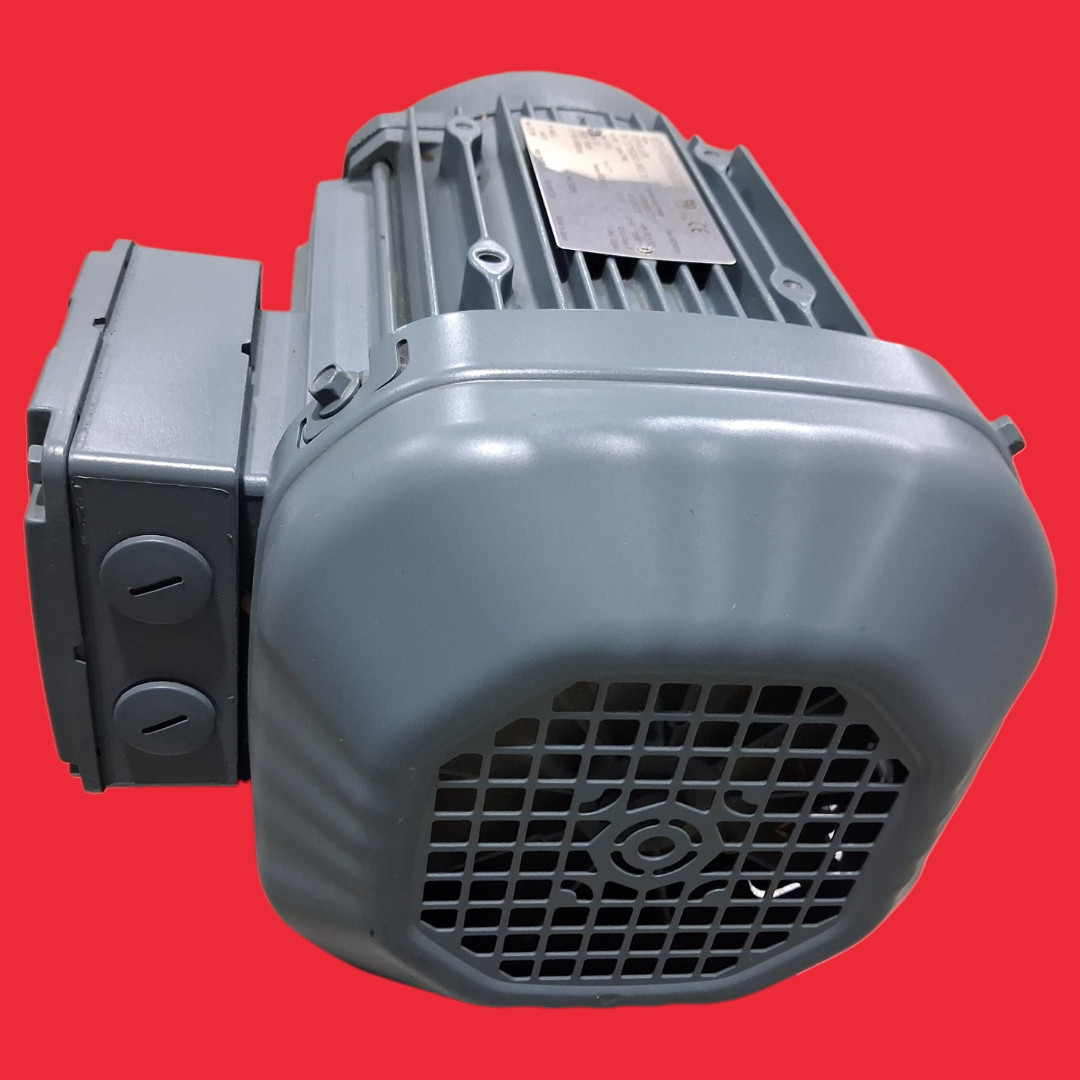

The SEW DRP90L4/FI 2 HP (1.5 kW), 240 / 480 V, 1740RPM High-Efficiency Industrial AC Motor

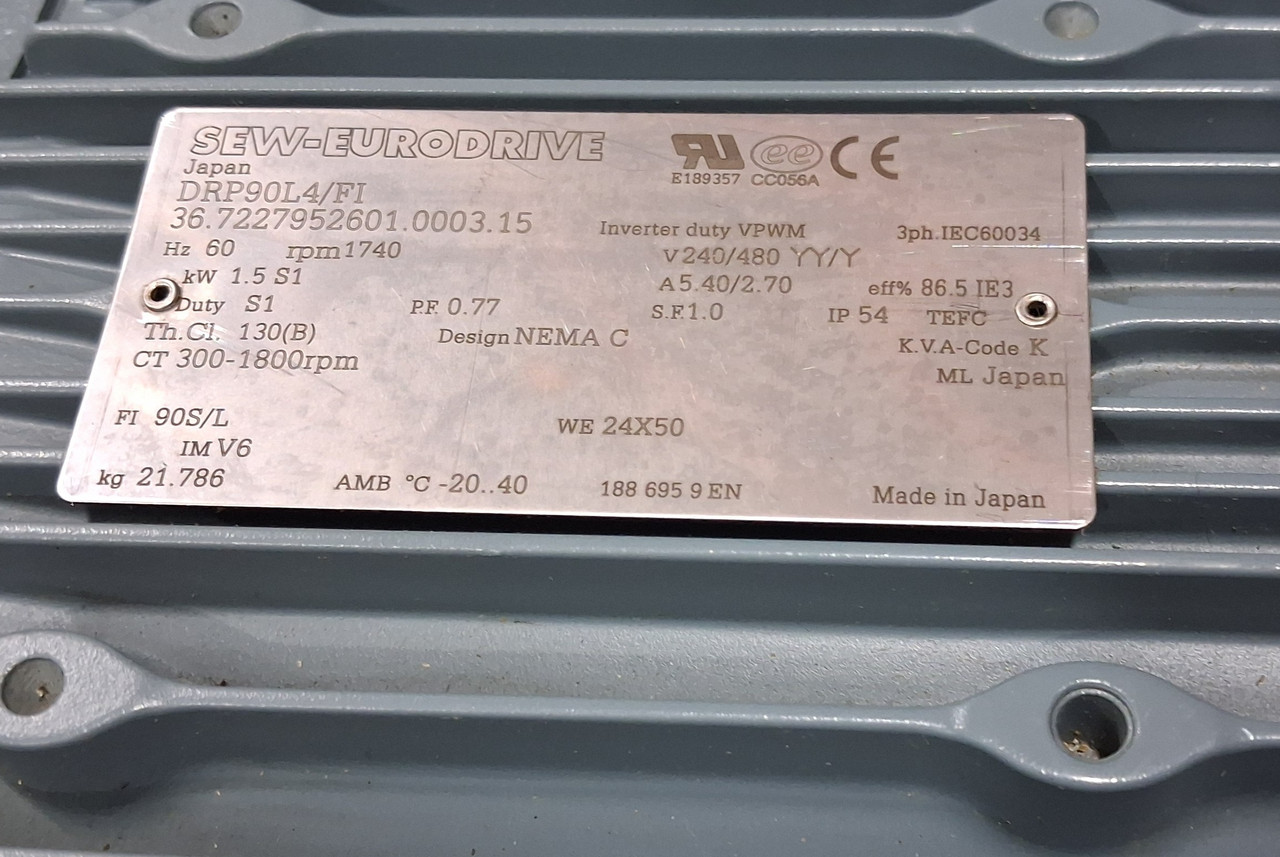

Part#: DRP90L4/FI
- Phase: 3
- Standard: IEC60034 / NEMA Design C
- Frequency: 60 Hz
- Rotational Speed: 1740 rpm
- Power Output: 1.5 kW
- Voltage: 240 / 480 V (Wye-Wye / Wye connection)
- Current (Amps): 5.40 A (at 240V) / 2.70 A (at 480V)
- Power Factor: 0.77
- Service Factor: 1.0
- Efficiency: 86.5% (IE3 Premium Efficiency class)
- Operational Limits & Enclosure
- Duty Cycle: S1 (Continuous duty)
- Inverter Compatibility: Inverter duty VPWM
- Constant Torque Range: 300–1800 rpm
- Insulation Class: 130(B)
- IP Rating: IP 54 (Dust and splash-water protection)
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- K.V.A. Code: K
- Ambient Temperature Range: -20°C to +40°C
- Mounting Position: IM V6
- Weight: 21.786 kg
