Product Description

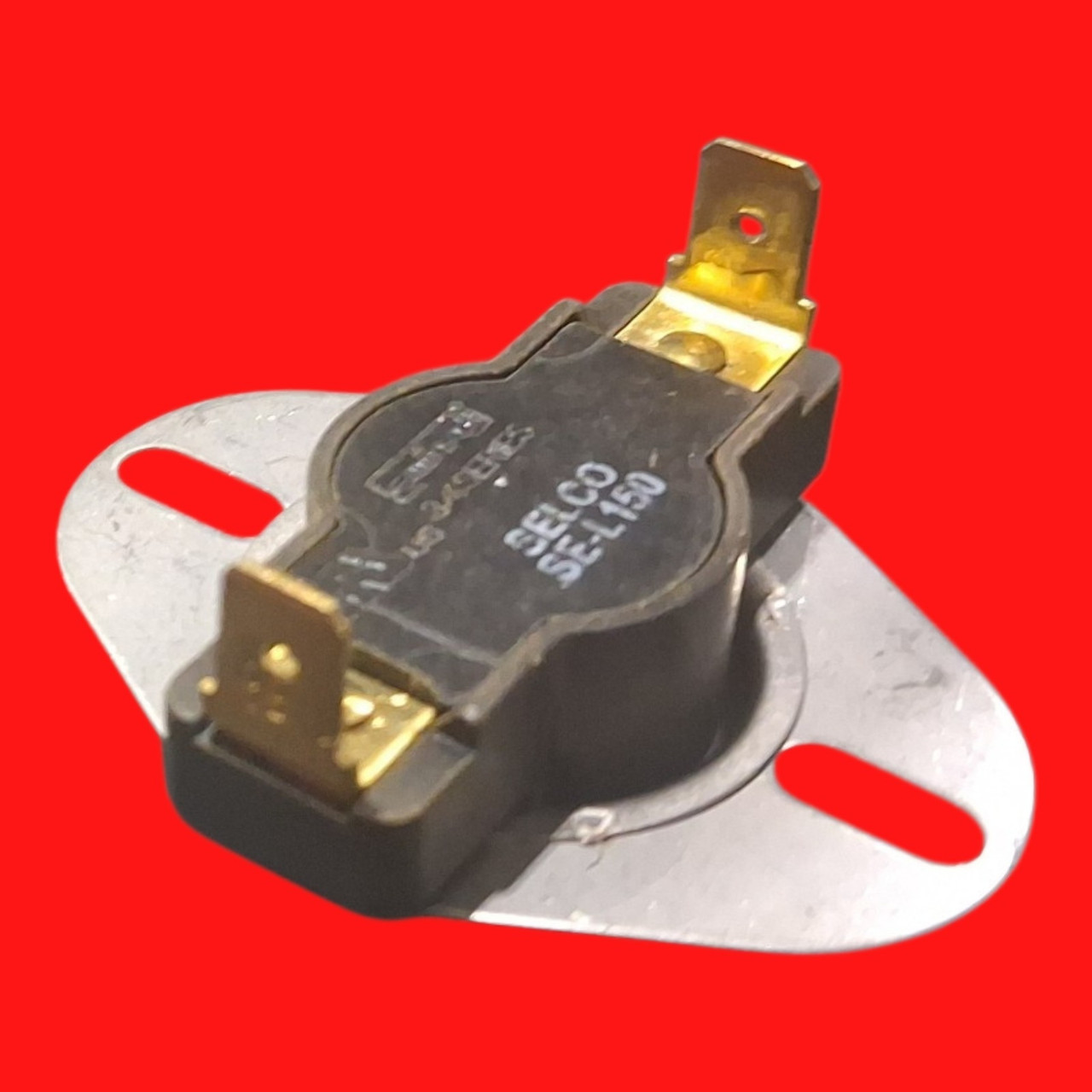

Selco SE-L150 3/4" Bimetallic Disc Thermostat
Part#: SE-L150
Description:
3/4" Disc Thermostat, automatic reset, open on rise 150°F ± 7°F, Reset 110°F ± 9°F, 0.250" vertical quick connects, airstream mount, 120/240VAC, 25 Amps, resistive, 60Hz
Specifications:
Series: SE
Type: Automatic Reset
Function: Open On Rise (Normally Closed)
Open Temperature: 150°F ± 7°F
Close Temperature: 110°F ± 9°F
Mounting/Sensing: Air
Electrical Rating:
- 120VAC, 240VAC, 25 Amps, 60Hz, Resistive
- 120VAC, 10FLA, 60LRA, 60Hz, Inductive
- 240VAC, 5FLA, 30LRA, 60Hz, Inductive
- 100,000 Cycles
Environmental: 32°F-350°F (0°C-176.6°C)
Insulation Resistance: 100 MΩ (with a 500 VDC megger)
Circuit Resistance: 50mΩ or less
Dielectric Strength: 1.500 VAC/1 minute
Approvals: UL (E145478, XAPX2) c-UL (E145478, XAPX8)
