Product Description

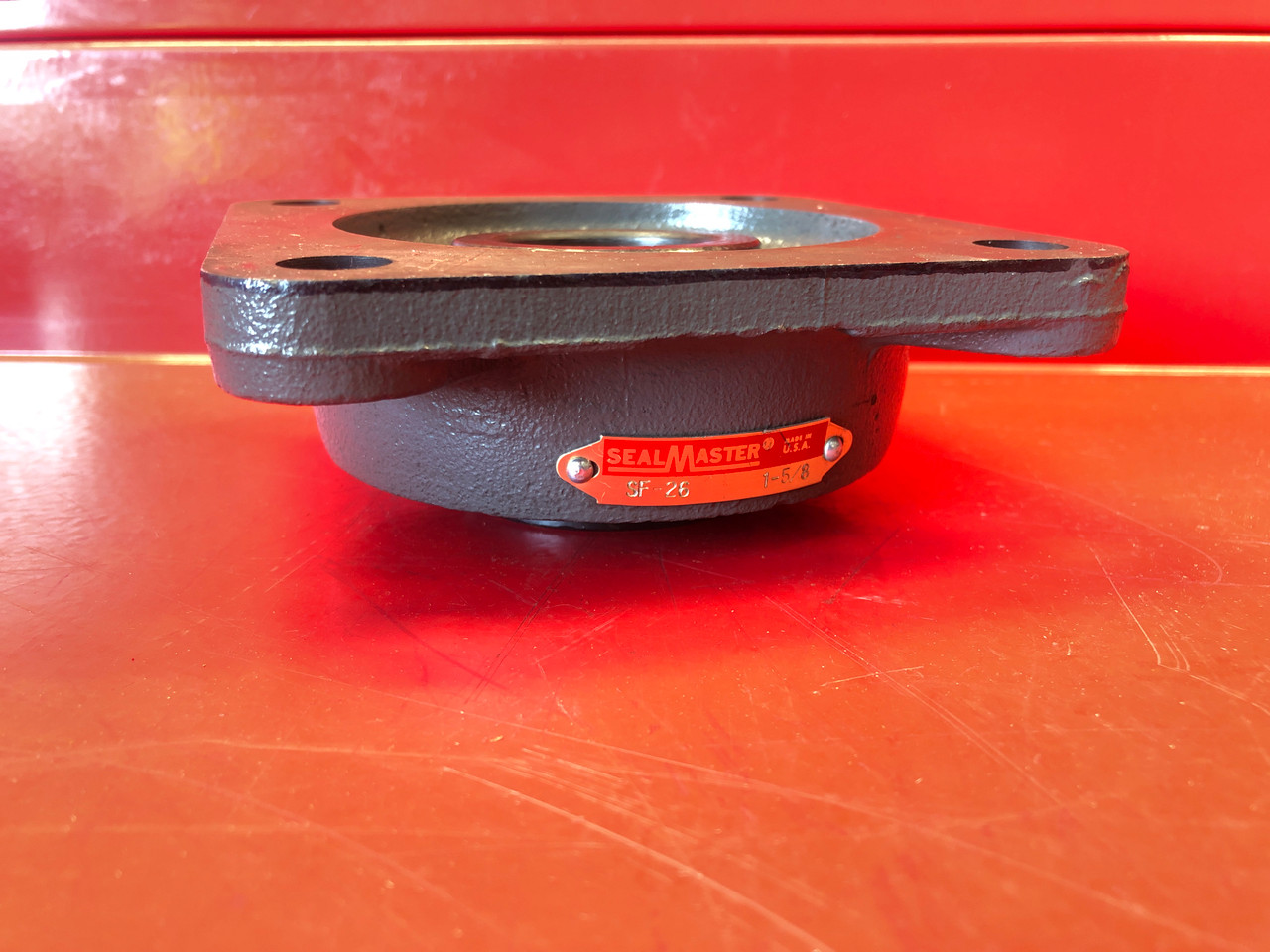

Sealmaster SF-26 Flange Bearing, 4-Bolt, Ball, 1-5/8" Bore
4-Bolt Flange Bearing, Ball Bearing Insert Type, 1 5/8 in Bore Dia., Bolt Hole Center-to-Center 4 1/8 in, Cast Iron Bearing Housing Material Type, Set Screw Shaft Locking Type, 52100 Chrome Steel Bearing Insert Material, SF Series, Bolt Size 9/16 in, Overall Height 5 3/8 in, Overall Width 2 3/64 in, Overall Length 5 3/8 in, Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent, Dynamic Load Capacity 7,901 lb, Static Load Capacity 5,139 lb, Temp. Range -20 Degrees to 220 Degrees F
| Dimension H: 2 3/64 in | Dimension M: 1 3/16 in |
| Temp. Range: -20 Degrees to 220 Degrees F | Shaft Locking Type: Set Screw |
| Bolt Size: 9/16 in | Bolt Hole Center-to-Center: 4 1/8 in |
| Dimension D: 1 9/16 in | Overall Height: 5 3/8 in |
| Dimension G: 31/64 in | Dimension L: 2 19/64 in |
| Dimension A: 5 3/8 in | Bearing Lubrication: Sealmaster GoldPlex-HP or NLGI #2 Equivalent |
| Static Load Capacity: 5,139 lb | Bearing Insert Material: 52100 Chrome Steel |
| Dimension B: 4 1/8 in | Bore Dia.: 1 5/8 in |
| Finish: black oxide | Bearing Housing Material Type: Cast Iron |
| Dimension J: 4 21/64 in | Overall Length: 5 3/8 in |
| Bearing Insert Type: Ball | Dimension E: 2 3/64 in |
| Item: 4-Bolt Flange Bearing | Dimension F: 19/32 in |
| Dimension C: 9/16 in | Series: SF |
| Locking Type: Set Screw | Dynamic Load Capacity: 7,901 lb |
| Overall Width: 2 3/64 in | Housing Material: Cast iron |
| Country of Origin (subject to change): Multiple |
