Product Description

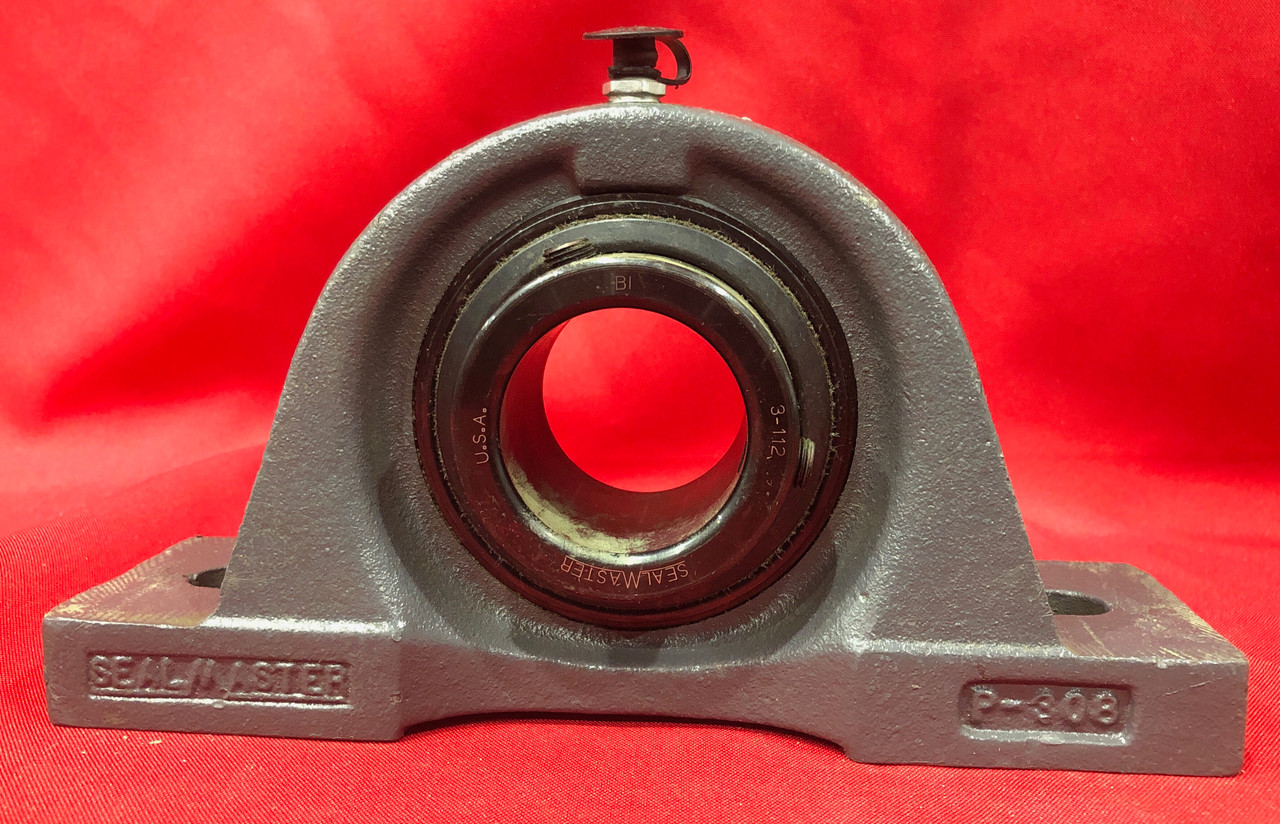

Sealmaster Pillow Block Bearing, Ball, 1-3/4" Bore
Pillow Block Bearing, Ball Bearing Insert Type, 1 3/4 in Bore Dia., Bolt Hole Center-to-Center 6 1/8 in, Mounting Surface to Shaft Center 2 5/16 in, Cast Iron Bearing Housing Material Type, Set Screw Shaft Locking Type, 52100 Chrome Steel Bearing Insert Material, MP Series, Number of Bolts 2, Bolt Size 5/8 in, Overall Height 4 5/8 in, Overall Width 2 5/8 in, Overall Length 8 3/4 in, Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent, Dynamic Load Capacity 7,889 lb
| Dimension B: 8 3/4 in | Bolt Size: 5/8 in |
| Item: Pillow Block Bearing | Overall Height: 4 5/8 in |
| Bore Dia.: 1 3/4 in | Locking Type: Set Screw |
| Bearing Housing Material Type: Cast Iron | Series: MP |
| Dimension D: 2 5/8 in | Dimension A: 2 5/16 in |
| Housing Material: Cast iron | Mounting Surface to Shaft Center: 2 5/16 in |
| Number of Bolts: 2 | Finish: black oxide |
| Temp. Range: -20 Degrees to 220 Degrees F | Overall Length: 8 3/4 in |
| Shaft Locking Type: Set Screw | Bearing Lubrication: Sealmaster GoldPlex-HP or NLGI #2 Equivalent |
| Bearing Insert Material: 52100 Chrome Steel | Dimension L: 2 15/32 in |
| Bolt Hole Center-to-Center: 6 1/8 in | Bearing Insert Type: Ball |
| Dimension C: 5-7/16 in to 6-13/16 in | Dimension H: 4 5/8 in |
| Dimension F: 11/16 in | Dynamic Load Capacity: 7,889 lb |
| Static Load Capacity: 5,216 lb | Overall Width: 2 5/8 in |
| Dimension E: 1 5/16 in | Dimension G: 13/16 in |
| Dimension J: 2 1/32 in |
