Product Description

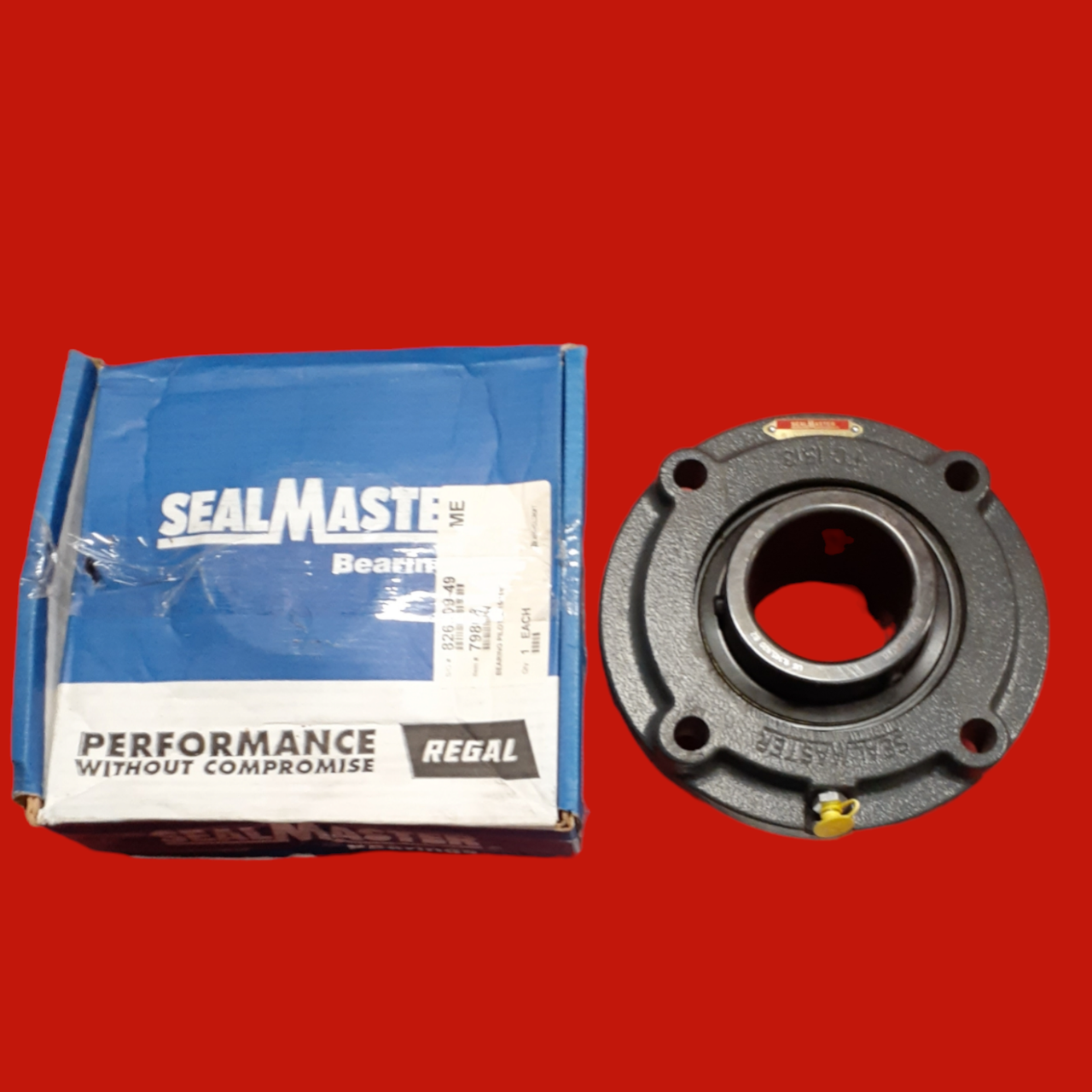

SealMaster MFC-47 Flange-Mount Ball Bearing Unit 2-15/16" Bore
PN: MFC-47
The Sealmaster MFC-47 is a flange-mount ball bearing unit with a 2-15/16 inch bore. It is designed to be mounted onto bearing surfaces that are perpendicular to the shaft axis. The housing is made of solid cast iron for rigidity and vibration damping and has machined foot pads. It also has a grease fitting on the outer surface for reapplying lubricant. A cylindrical pilot extension on the back face provides accurate placement in the mounting surface bore during installation and increases stability during operation.
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
- Bolt Center To Center Length: 7-1/2"
- Bolt Circle Diameter: 7-1/2"
- Bore Diameter: 2-15/16"
- Duty Type: Medium Duty
- Housing Width: 2-13/32"
- Inner Ring Width: 3-1/4"
