Product Description

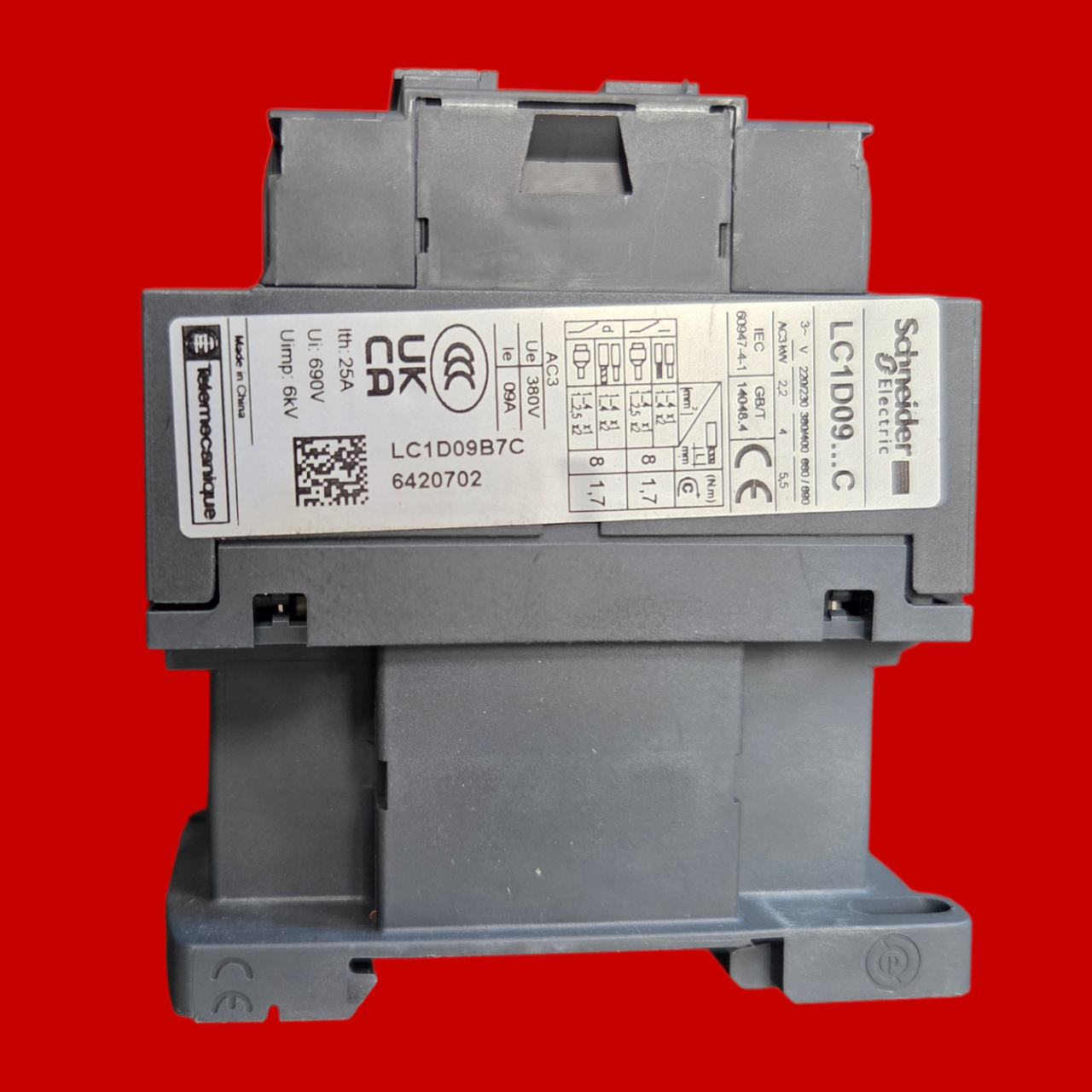

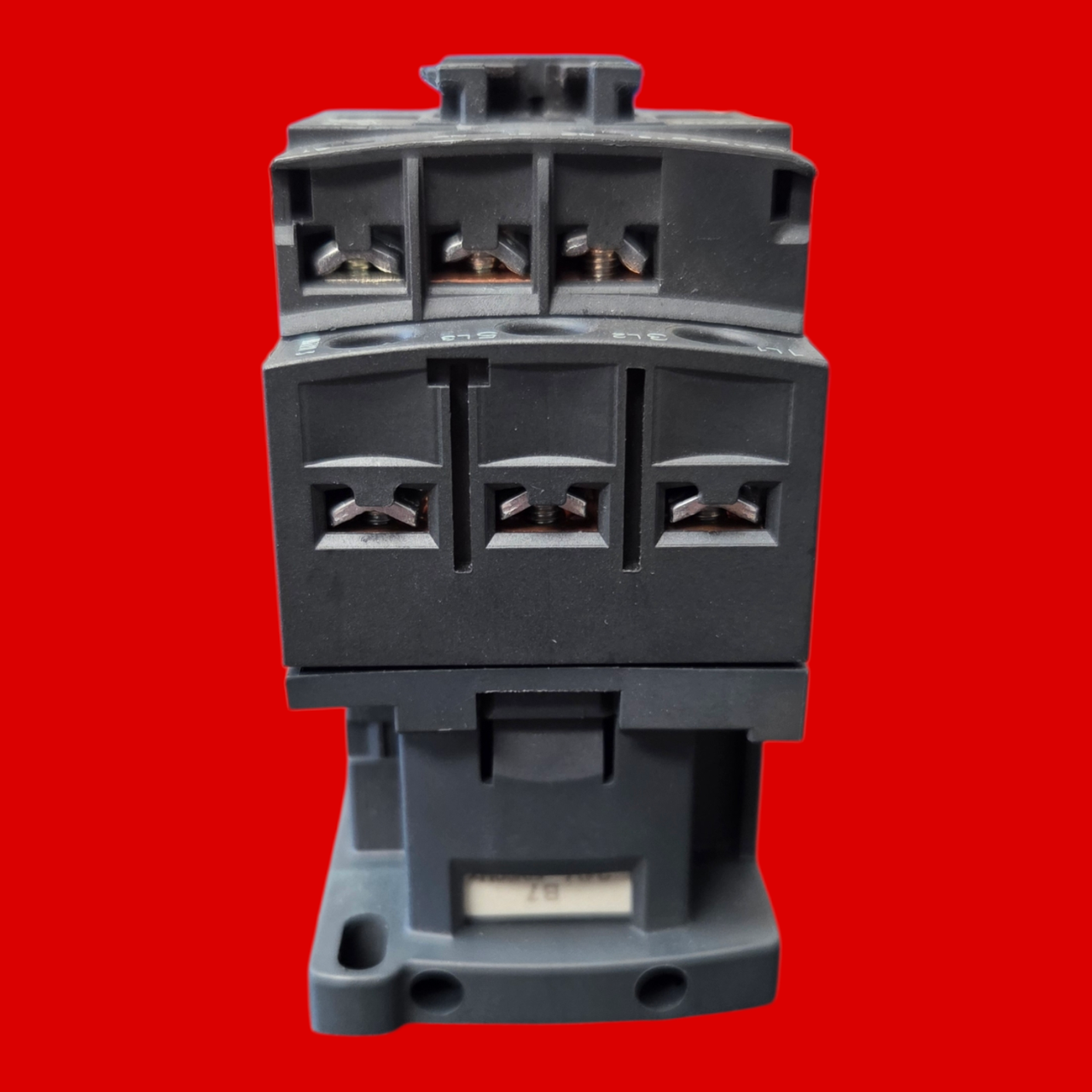

Schneider Electric 9A, 3-Pole IEC Contactor, LC1D09
PN: LC1D09
- Current Rating: 9 A (AC-3/AC-3e motor control) / 25 A (AC-1 resistive loads)
- Poles: 3-Pole (3 NO power contacts)
- Voltage 0 to 440V, 24VAC 50/60Hz Coil
- Auxiliary Contacts 1 N.O. (normally open) and 1 N.C. (normally closed) built-in
- Mounting 35mm DIN rail or screw mounting
- Dimensions 3.15" H x 1.77" W x 3.39" D (approx. 80mm H x 45mm W x 86mm D)
- Terminals Screw clamp terminals
- Standards & Certifications UL, CSA, IEC, CE, CCC, EAC, and Marine standards certified
