Product Description

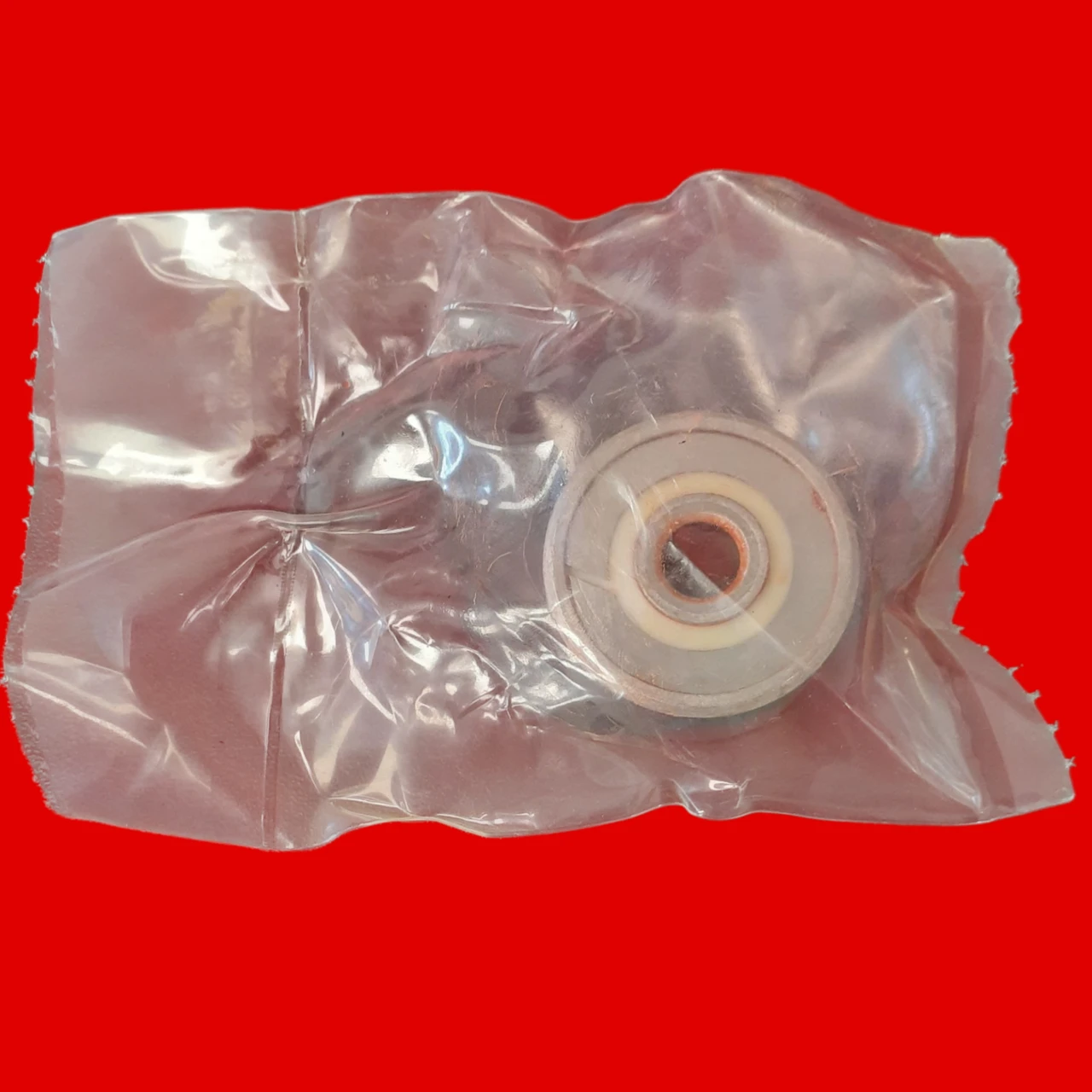

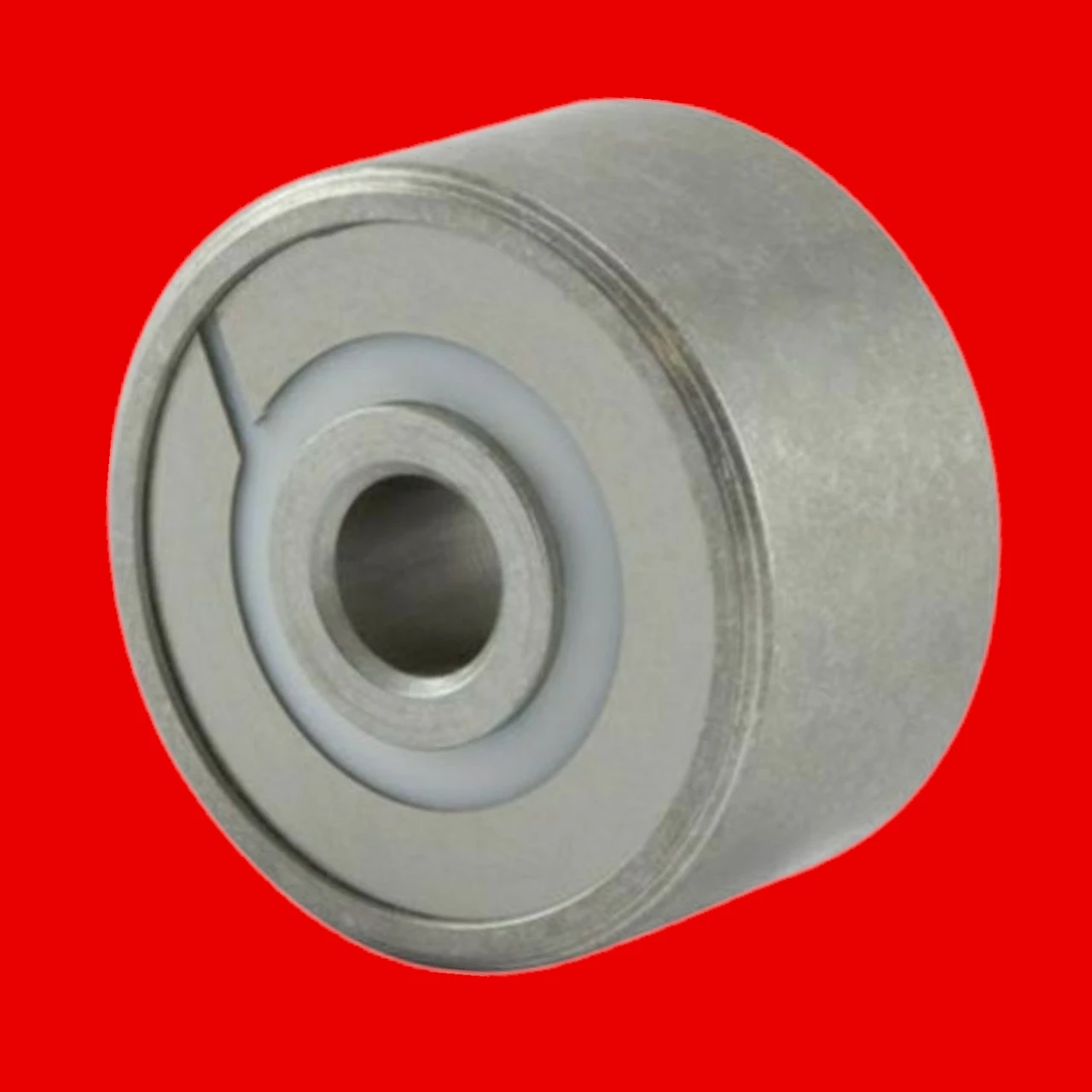

RBC Heim DPP5 FS464 Airframe Bearing - DPP Series, 0.3125" Bore
PN: DPP5FS464
RBC Airframe Control Ball Bearing manufactured by RBC Bearings. ~~RBC Bearings manufactures highly engineered precision bearings, components and essential systems for the industrial, defense and aerospace industries. Founded in 1919, and now a publicly-traded company (NYSE: RBC), RBC currently has 52 facilities in 10 countries (34 in the USA), of which 37 are manufacturing facilities.
Double row airframe control ball bearing. ~PTFE seals and CRES sealcaps. ~Exposed surfaces except bore, caps and seals are cadmium plated. Prelubricated for life.
Used in aerospace and industrial applications that necessitate the most stringent tolerances.
- Industry Standards/Certifications: SAE-AS7949
- Type: Airframe Control
- Style: Ball Bearing
- Series: RBC®
- Material: 52100 Bearing Quality Steel
- Cage Material: No Cage
- Finish: Cadmium
- Enclosure: Double Seal
- Clearance: C0
- Bore Shape: Round
- Outside Ring Shape: Straight
- Include Snap Ring: No
- Filling Slot: Double Row Non-Fill Slot
- Number of Rows: 2
- Speed [Max]: 500 rpm
- Radial Limit Load Rating: 11000 lbf
- Weight: 0.17 lb
