Product Description

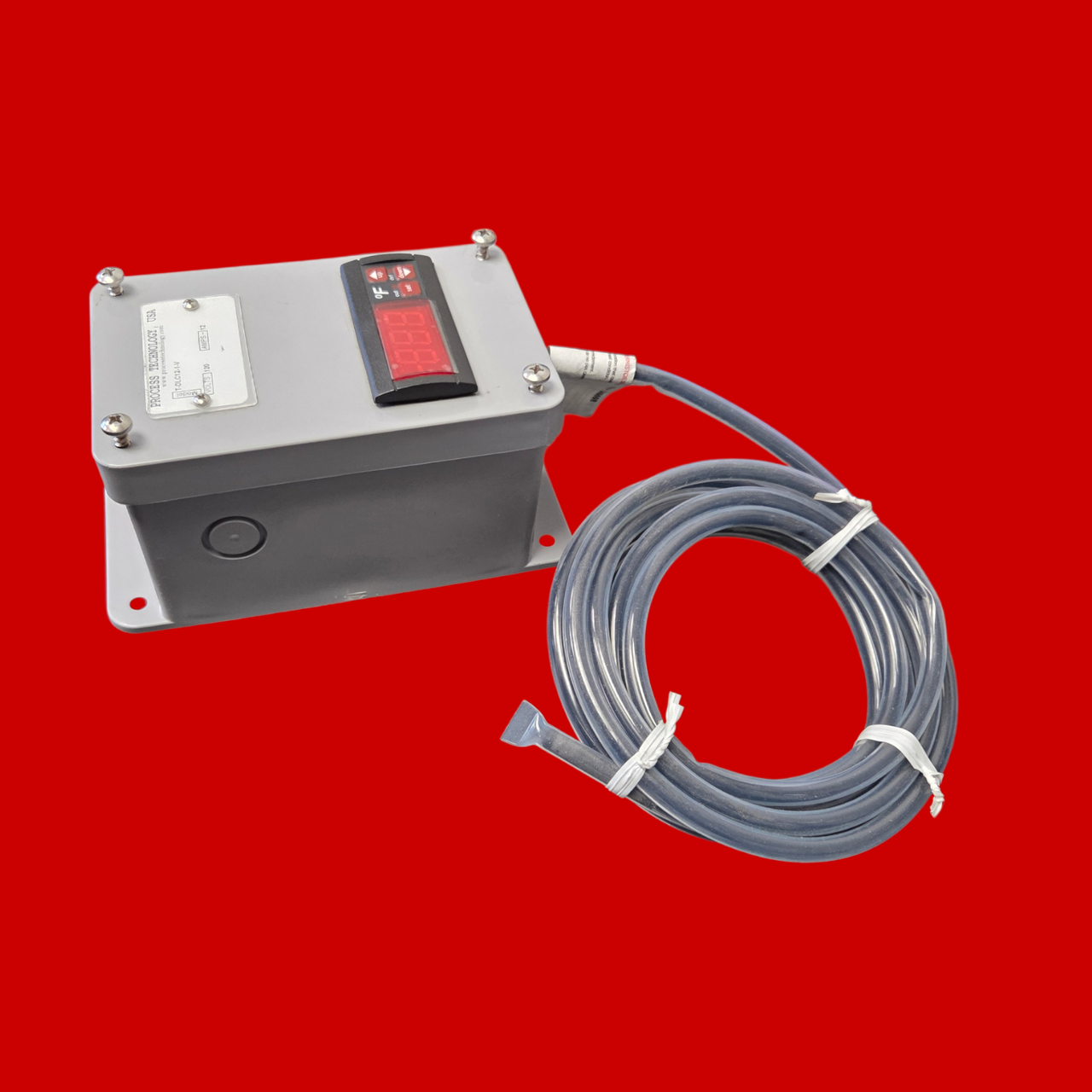

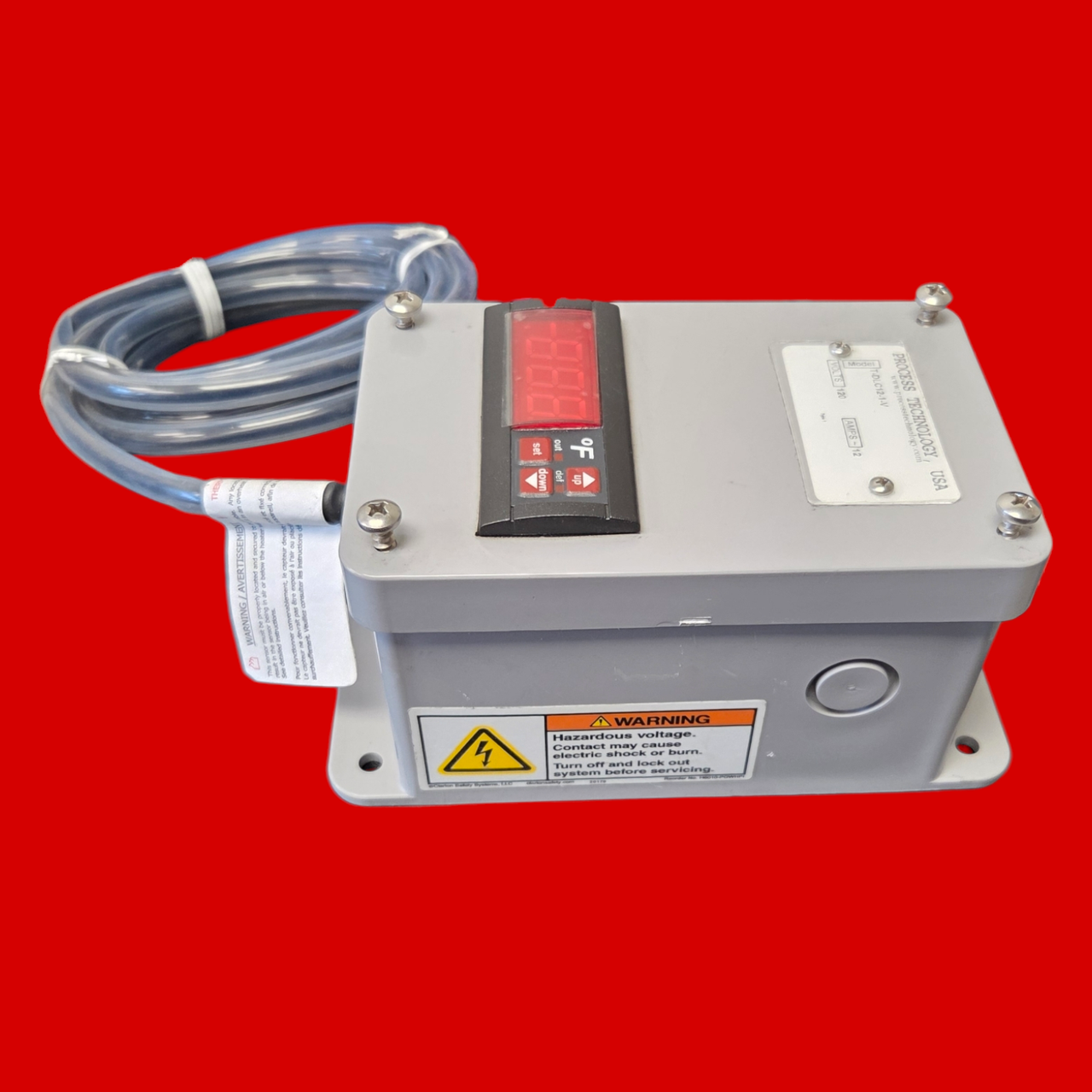

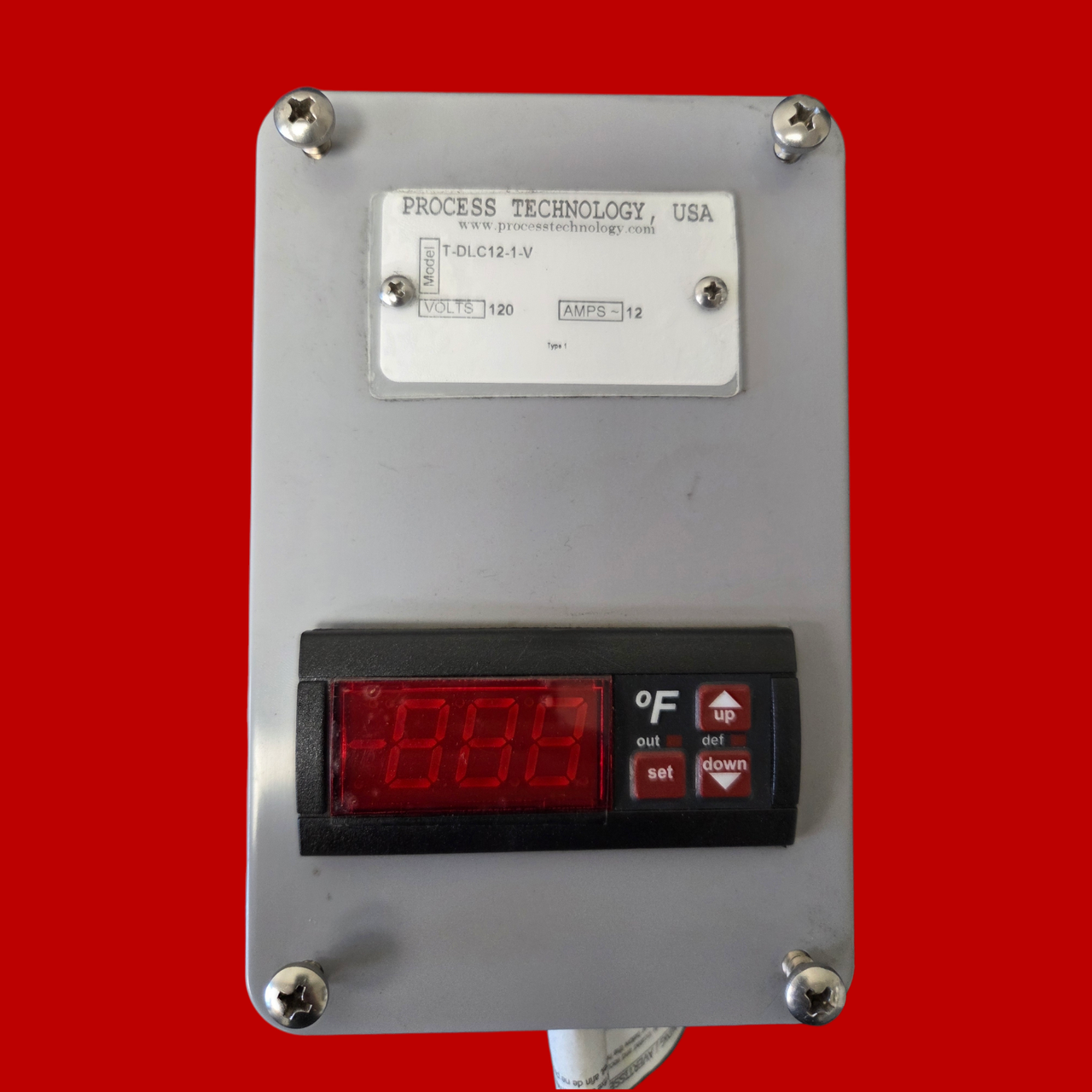

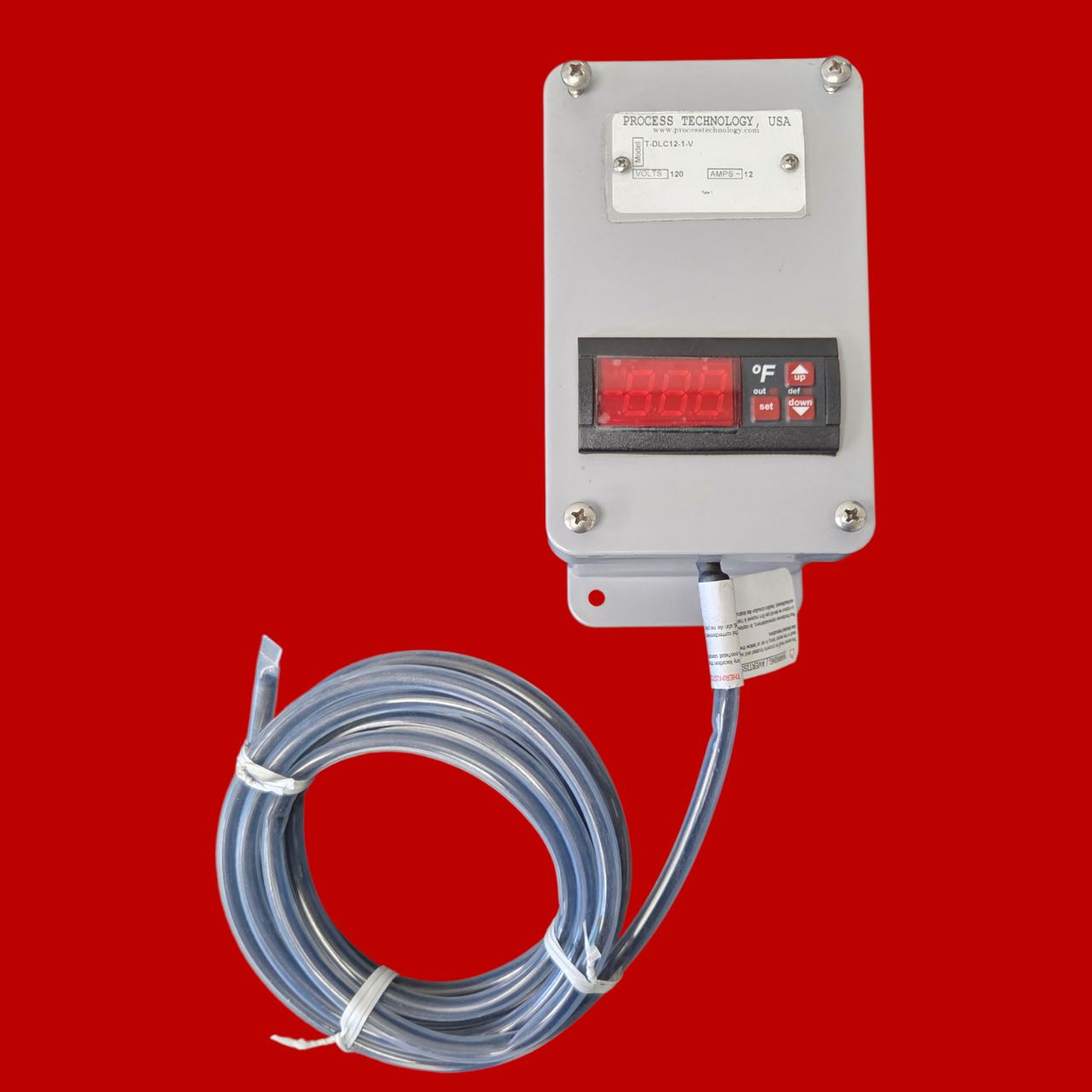

Process Technologies T-DLC12-1-V DSL Series, Digital Thermostat, Single Phase with 10 ft. Fluoropolymer (FEP) Sleeved Sensor, 120V
PN: T-DLC12-1-V
The various DLC Series controls provide precise control for consistent plating and etch rates in most aqueous processes, featuring a large (.56” high) easy-to-read LED display.

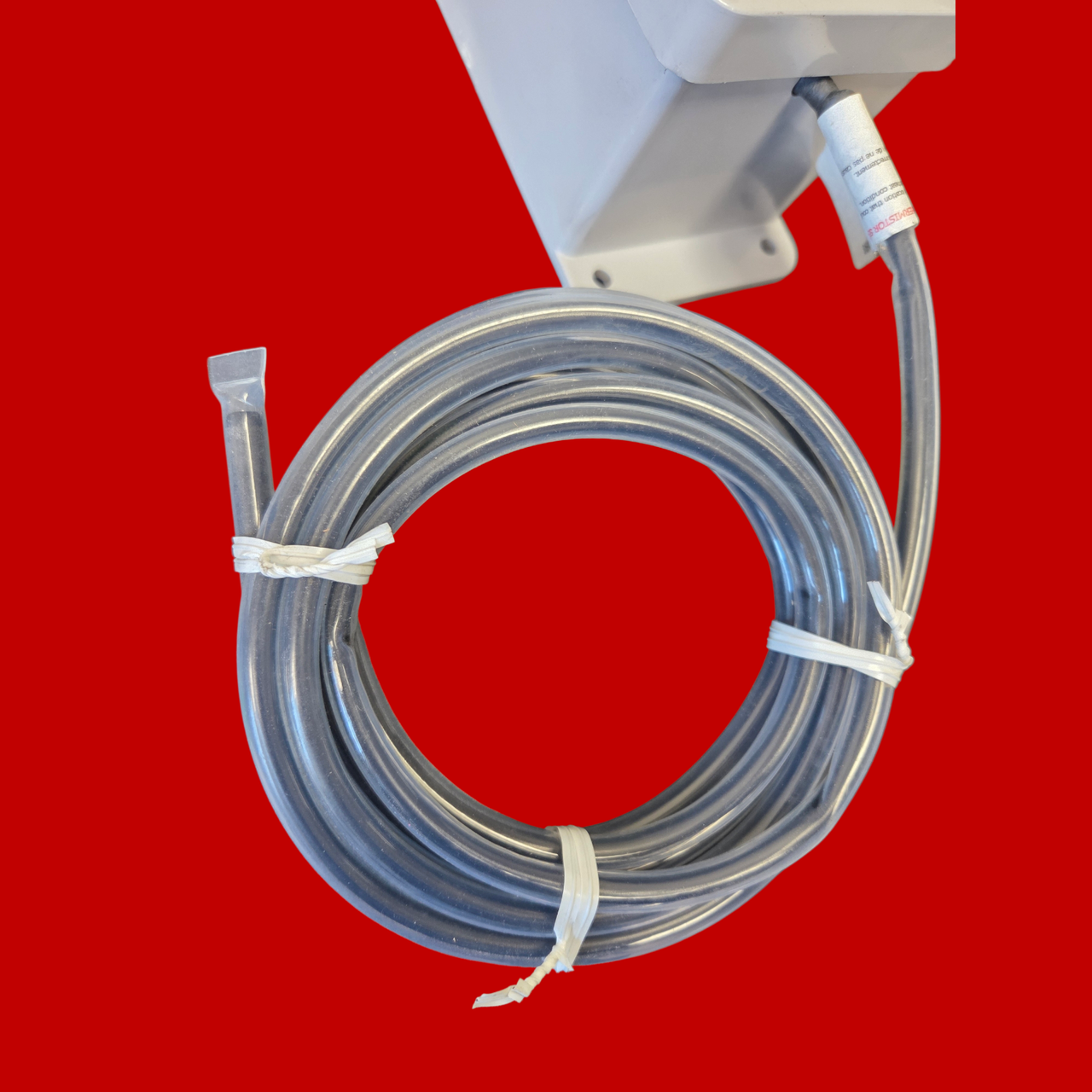

It includes a standard 10-foot (3m) fluoropolymer (FEP) covered, 1000-ohm thermistor sensor. The control is housed in a durable, vapor-tight NEMA 1, IP21, flame-retardant plastic enclosure with sealed tactile switches and stainless-steel hardware.
The adjustable temperature range spans from -58°F (-50°C) to 302°F (150°C). With switching capacities ranging from 30 amps for 120 or 240 volts, single-phase, up to 20-125 amps for up to 600 volts, single-phase, this control ensures reliability in various applications.
- Voltage: 120V
- Amps: 12A
- Enclosure: 6" x 3" Plastic Box
- Control Type: T
- Series: DSL
