Product Description

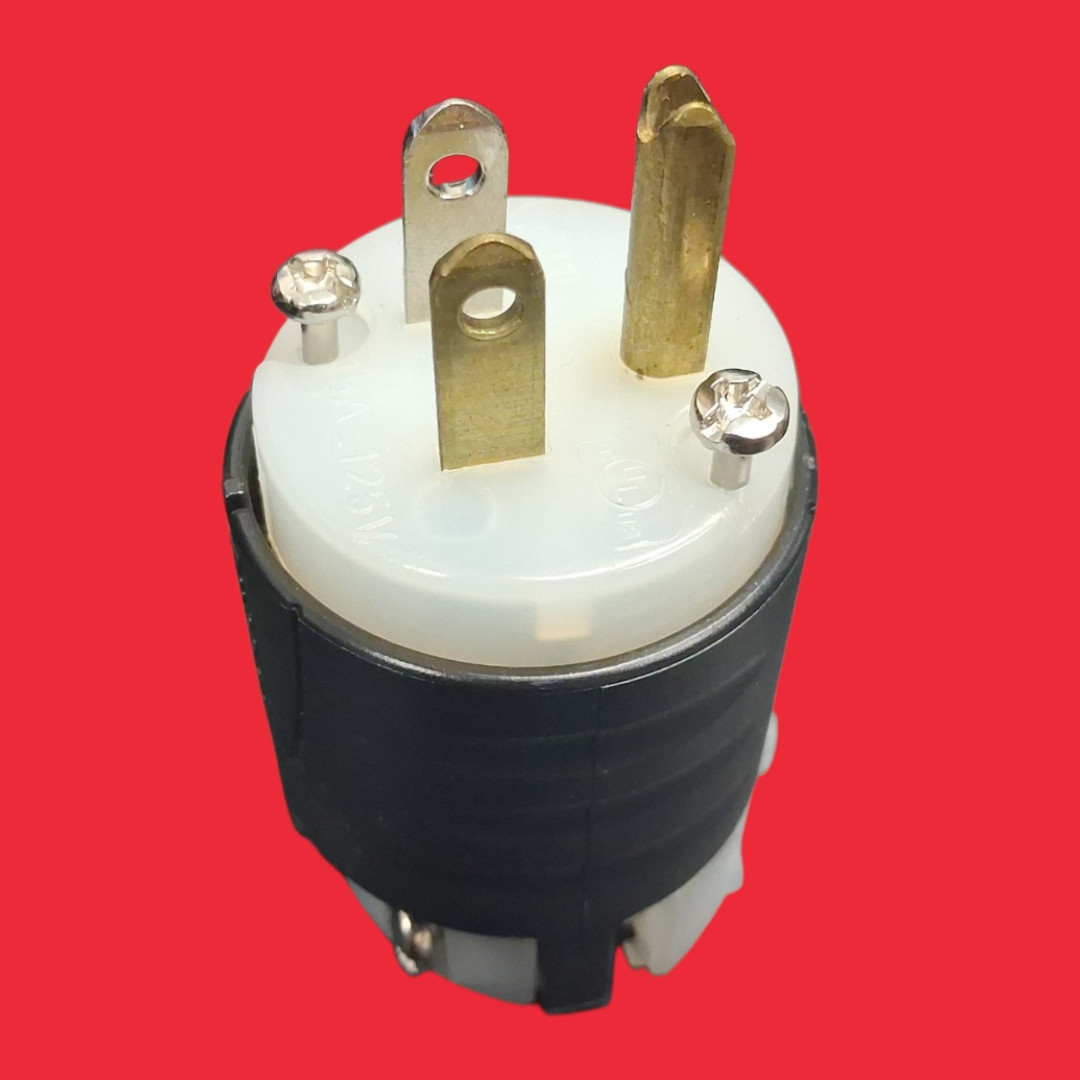

Pass & Seymour Legrand PS5266-X 15A, 125V Extra-Hard Use Spec-Grade Plug, White Face
Part#: PS5266-X
Features
- Unit arrives completely ready-to-wire, cuts installation time significantly.
- Nylon housing provides impact and chemical resistance.
- Rugged two-piece cord grip provides more uniform cord retention.
- Internal dust shield keeps terminals free of contaminants.
- Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
- Cord-grip screws recessed to protect installer against screwdriver head slippage.
Specifications
- Color: Black
- Type: Plug
- Country Of Origin: Mexico
- Features: Chemical Resistant, Durable, Dust Resistant
- Standard: UL 498
- Product Length US: 1.752 in
- Product Width US: 1.516 in
- Product Environmental Profile: Yes
- Amperage: 15 A
- Flanged: No
- Connection: Wire Grounding
- Connector Style: Straight Blade
- Indoor/Outdoor: Indoor
- NEMA Configuration Code: 5-15P
- Number of Poles: Double Pole
- Number of Wires: 3
- Terminal Accommodation: #4 AWG
- Voltage: 125.0 V
