Product Description

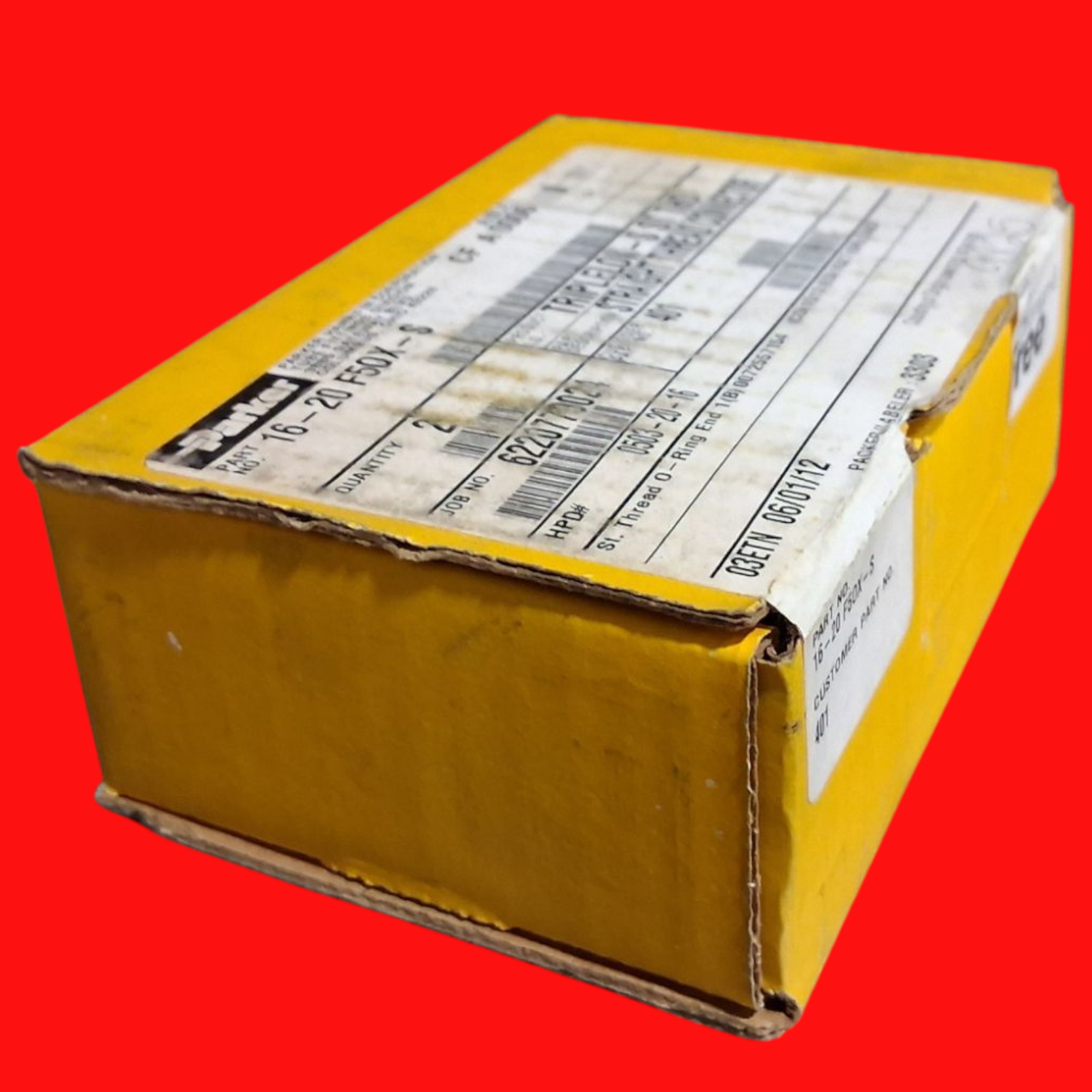

Parker Hannifin 16-20 F50X-S Triple-Lok 37° Flare, Tube to SAE-ORB Tube Fitting Box of 2
Part#: 16-20 F650X-S
- Connection Type: 37° Flare, Tube to SAE-ORB
- Specifications Met: SAE J514
- Maximum Dynamic Pressure: 4000 psi
- Shape: Straight
- Connection 1 Size: Male 37° Flare
- Connection 1 Tube Outside Diameter: 1 inch, 25 mm
- Connection 2 Size: Male SAE-ORB
- Connection 2 Thread Size: 1 5/8-12 inch, na
- O-Ring Material: 90 Durometer Nitrile
- Body Material: Steel
