Product Description

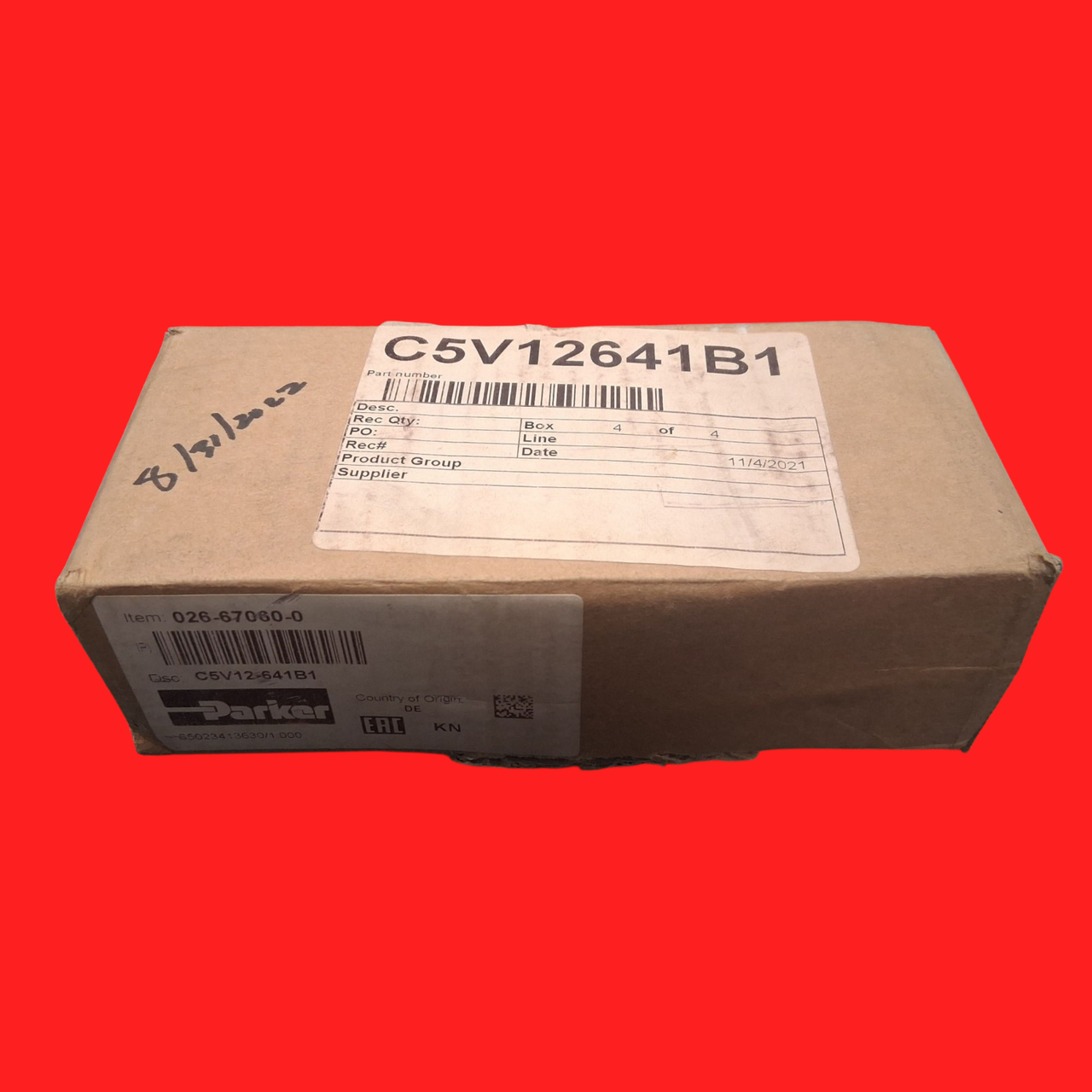

Parker 026-67060-0, CV12-641B1 Direct Operated Check Valve, SAE Flange - Series C5V
Part#: 026-67060-0
- Seal Material: NBR
- Cracking Pressure: 1.0 bar
- Seal Type: Sealing for port B
- DIN Flange Size: SAE62
- Mounting Type: Flanged according SAE
- Operation Type: Direct
- Product Series: Check Valve
- Weight: 1.8 kg
- Maximum Flow Rate: 750 L/min
- Maximum Operating Pressure: 420 bar
- Maximum Operating Temperature: 60 °C
- Minimum Operating Temperature: -20 °C
- Body Material: Cast Iron
- Configuration: n/a
- Connection Size: n/a
- Connection Type: Flange
- Flow Direction: A to B
- Actuation Type: Mechanical
- Seal Material: NBR
- Cracking Pressure: 1.0 bar
- Port Connection: SAE 1 1/2
- Applications: Suitable for general hydraulic applications
